Schema libretto.xsd


schema location:  libretto.xsd
attributeFormDefault:  unqualified
elementFormDefault:  qualified
targetNamespace:  libretto

Elements  Complex types  Simple types
libretto  altro_trattH2O  anno
attributiGT  CAP
CondizChimico  codice_catastale_comune
consumi_esercizi  codice_fiscale

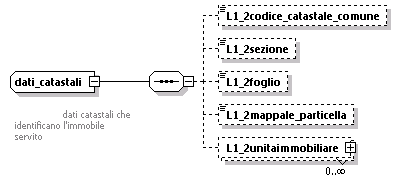

dati_catastali  codice_istat_comune

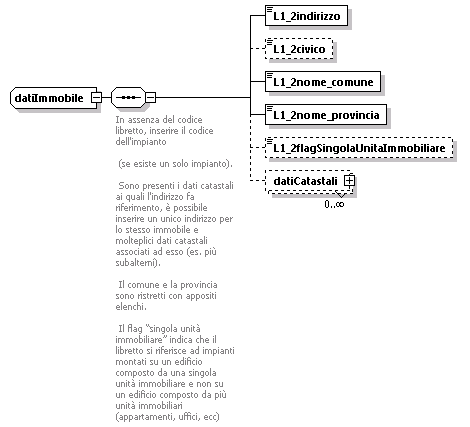

datiImmobile  codice_provincia
Filtrazione  combustibile

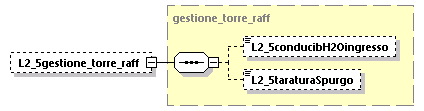

gestione_torre_raff  combustibilefiammadiretta
impianto  comune

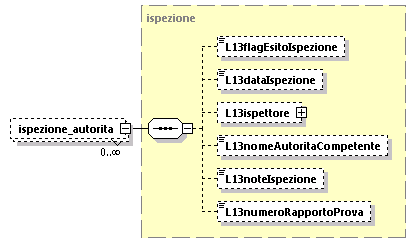

ispezione  controllo_compatibilita
persona_fisica  data

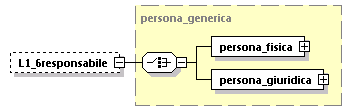

persona_generica  decimale1

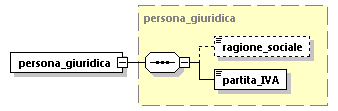

persona_giuridica  destinazioneUso

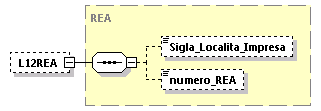

REA  dpr412
row11_1  efficienzaFrigo

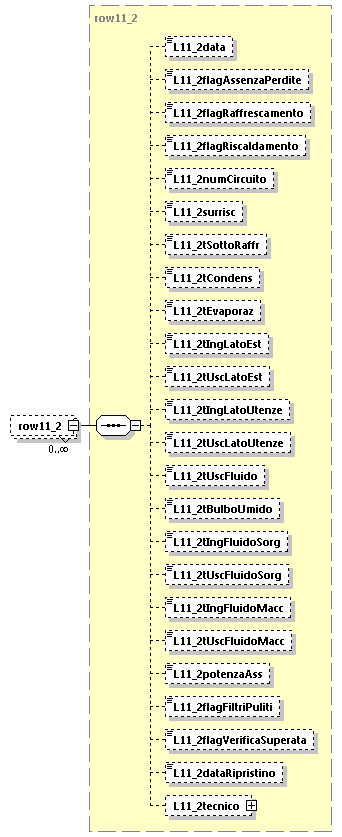

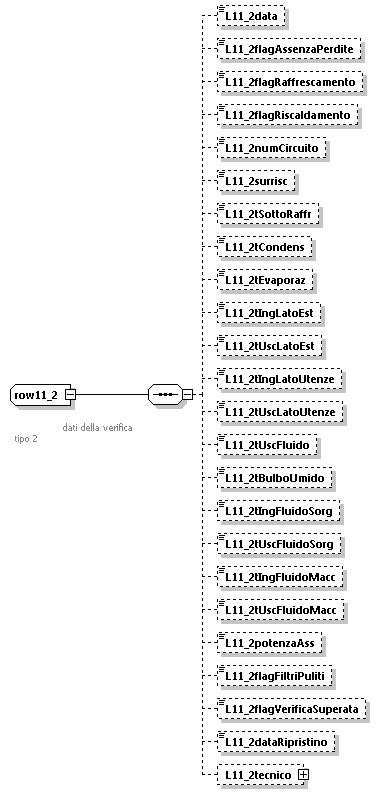

row11_2  email
row11_3  fabbricante
row11_4  fluido_frigorigeno

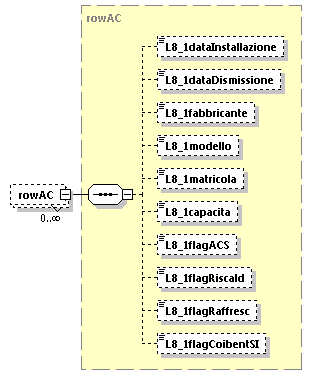

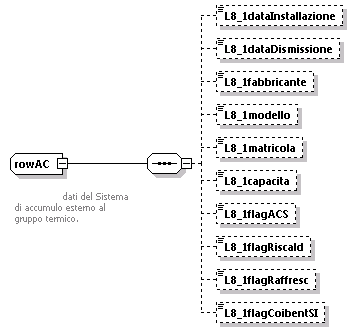

rowAC  fluidoTermoVett
rowAG  intervento

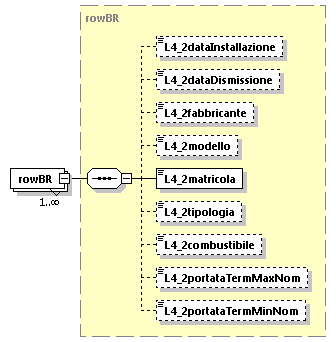

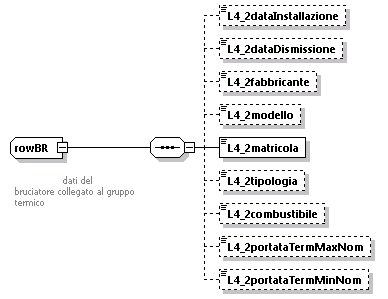

rowBR  numero_REA

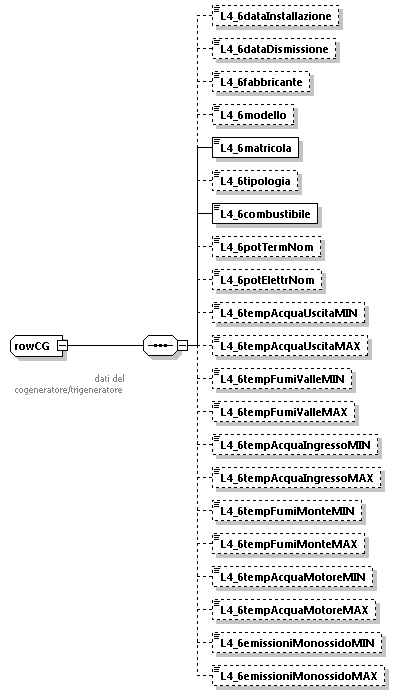

rowCG  numero_registro_imprese
rowCI  origine_H2O_alimento
rowCS  partita_IVA
rowGF  PDR
rowGT  POD

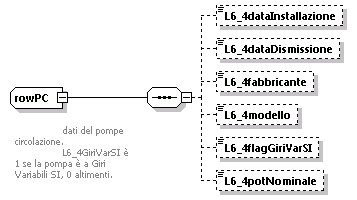

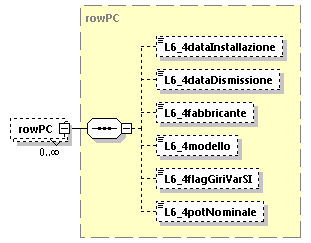

rowPC  portata
rowRC  provincia
rowRCcal  RCEE

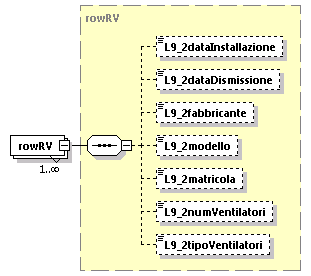

rowRV  rendimento
rowSC  ruolo_nominante
rowSCcal  tipo_bruciatore

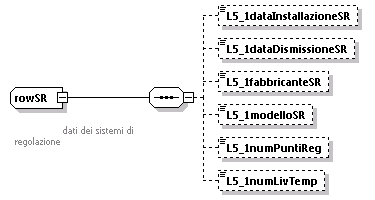

rowSR  tipo_circuito_raffreddamento

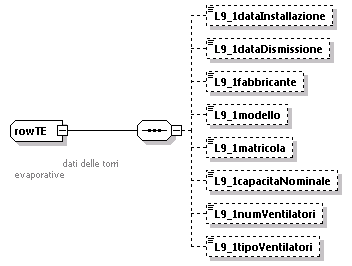

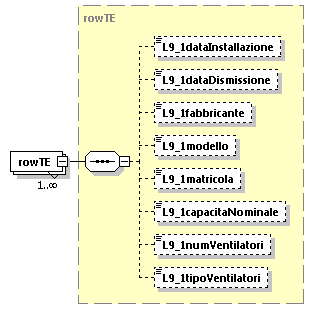

rowTE  tipo_scambiatore

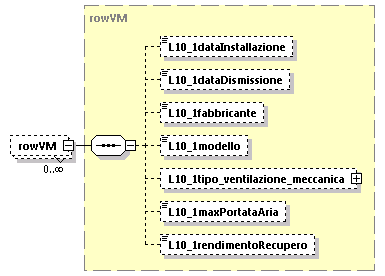

rowUT  tipo_ventilatori
rowVE  tipoCogeneratore
rowVM  tipoTermostato
rowVR  titolo_responsabilita

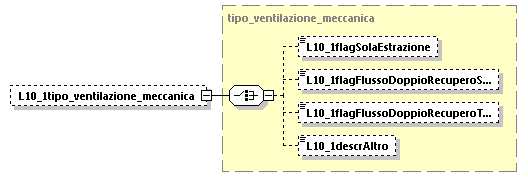

tipo_ventilazione_meccanica  unita_misura_consumo
tratt_H2O
tratt_H2O_ACS
tratt_H2O_climaEst
tratt_H2O_esist

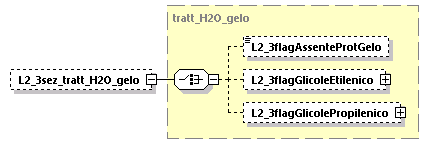

tratt_H2O_gelo
TrattamentoH2O

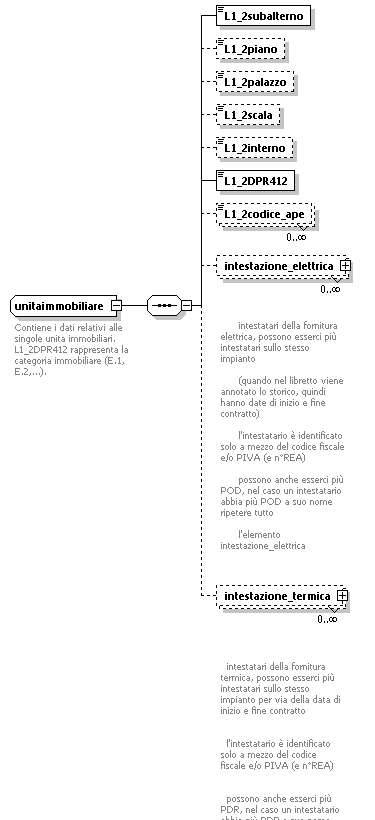

unitaimmobiliare

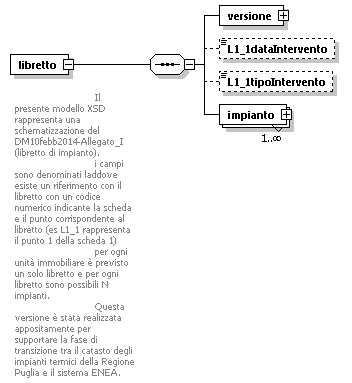

element libretto
diagram libretto_diagrams/libretto_p1.png
namespace libretto
properties
content complex
children versione L1_1dataIntervento L1_1tipoIntervento impianto
annotation
documentation

Il presente modello XSD rappresenta una schematizzazione del DM10febb2014-Allegato_I (libretto di impianto).
i campi sono denominati laddove esiste un riferimento con il libretto con un codice numerico indicante la scheda e il punto corrispondente al libretto (es L1_1 rappresenta il punto 1 della scheda 1)
per ogni unità immobiliare è previsto un solo libretto e per ogni libretto sono possibili N impianti.
Questa versione è stata realizzata appositamente per supportare la fase di transizione tra il catasto degli impianti termici della Regione Puglia e il sistema ENEA.
source <xs:element name="libretto">
  <xs:annotation>
    <xs:documentation>
Il presente modello XSD rappresenta una schematizzazione del DM10febb2014-Allegato_I (libretto di impianto).
i campi sono denominati laddove esiste un riferimento con il libretto con un codice numerico indicante la scheda e il punto corrispondente al libretto (es L1_1 rappresenta il punto 1 della scheda 1)
per ogni unità immobiliare è previsto un solo libretto e per ogni libretto sono possibili N impianti.
Questa versione è stata realizzata appositamente per supportare la fase di transizione tra il catasto degli impianti termici della Regione Puglia e il sistema ENEA.
</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:annotation>
      <xs:documentation>Dati che sono univoci per il libretto, ovvero il punto 1.1 con il codice del catasto impianti termici, la data ed il tipo di installazione, nonchè gli N impianti che lo compongono. Il tag VersioneCorrente è richiesto per validare gli XML inviati, obbligatoriamente deve essere uguale al valore fissato.
</xs:documentation>
    </xs:annotation>
    <xs:sequence>
      <xs:element name="versione">
        <xs:complexType>
          <xs:attribute name="VersioneCorrente" type="xs:decimal" use="required" fixed="2.05"/>
        </xs:complexType>
      </xs:element>
      <xs:element name="L1_1dataIntervento" type="data" minOccurs="0"/>
      <xs:element name="L1_1tipoIntervento" type="intervento" minOccurs="0"/>
      <xs:element name="impianto" type="impianto" minOccurs="1" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element libretto/versione
diagram libretto_diagrams/libretto_p2.png
namespace libretto
properties
content complex
attributes
Name  Type  Use  Default  Fixed  Annotation
VersioneCorrente  xs:decimal  required    2.05
source <xs:element name="versione">
  <xs:complexType>
    <xs:attribute name="VersioneCorrente" type="xs:decimal" use="required" fixed="2.05"/>
  </xs:complexType>
</xs:element>

attribute libretto/versione/@VersioneCorrente
type xs:decimal
properties
use required
fixed 2.05
source <xs:attribute name="VersioneCorrente" type="xs:decimal" use="required" fixed="2.05"/>

element libretto/L1_1dataIntervento
diagram libretto_diagrams/libretto_p3.png
namespace libretto
type data
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1900-01-01
maxInclusive 2100-12-31
source <xs:element name="L1_1dataIntervento" type="data" minOccurs="0"/>

element libretto/L1_1tipoIntervento
diagram libretto_diagrams/libretto_p4.png
namespace libretto
type intervento
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1
maxInclusive 4
source <xs:element name="L1_1tipoIntervento" type="intervento" minOccurs="0"/>

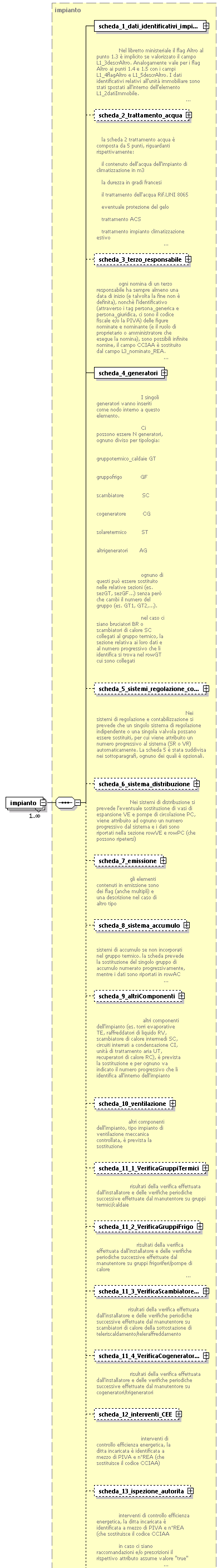

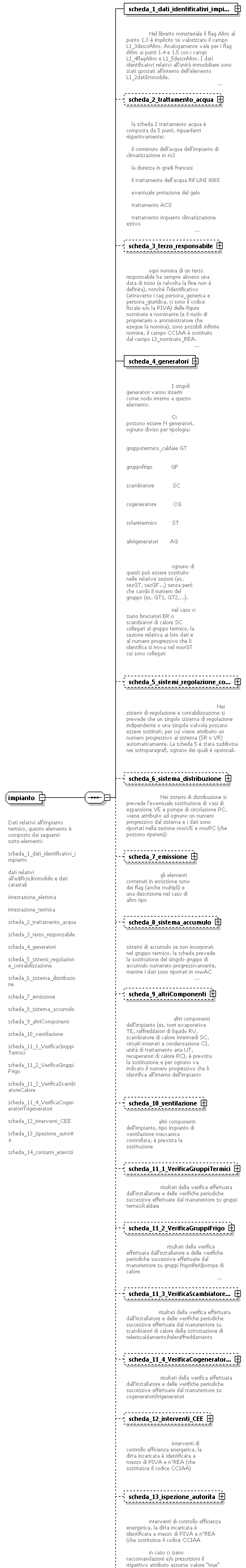

element libretto/impianto
diagram libretto_diagrams/libretto_p5.png
namespace libretto
type impianto
properties
minOcc 1
maxOcc unbounded
content complex

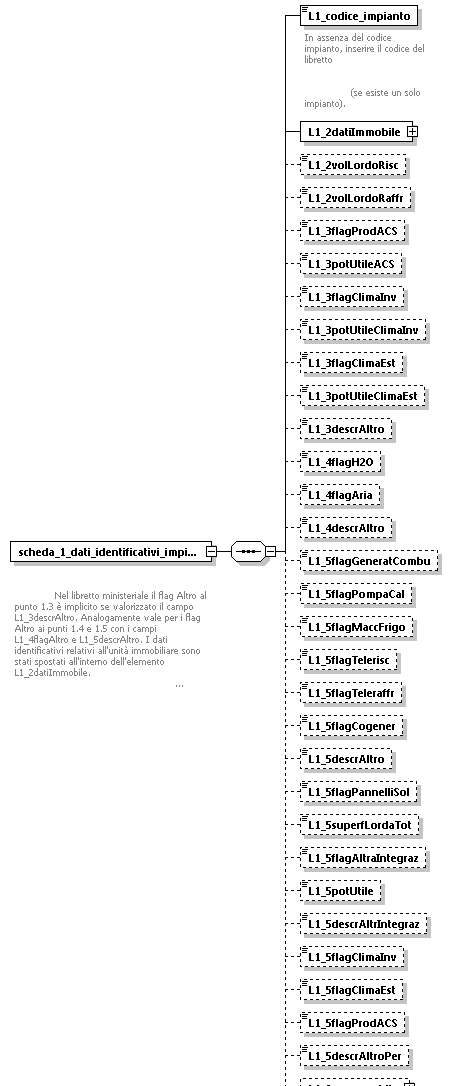

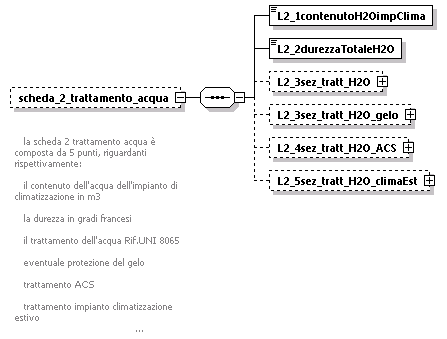

children scheda_1_dati_identificativi_impianto scheda_2_trattamento_acqua scheda_3_terzo_responsabile scheda_4_generatori scheda_5_sistemi_regolazione_contabilizzazione scheda_6_sistema_distribuzione scheda_7_emissione scheda_8_sistema_accumulo scheda_9_altriComponenti scheda_10_ventilazione scheda_11_1_VerificaGruppiTermici scheda_11_2_VerificaGruppiFrigo scheda_11_3_VerificaScambiatoreCalore scheda_11_4_VerificaCogeneratoriTrigeneratori scheda_12_interventi_CEE scheda_13_ispezione_autorita scheda_14_consumi_esercizi
source <xs:element name="impianto" type="impianto" minOccurs="1" maxOccurs="unbounded"/>

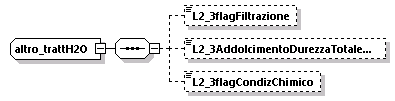

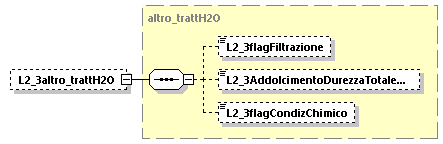

complexType altro_trattH2O
diagram libretto_diagrams/libretto_p6.png
namespace libretto
children L2_3flagFiltrazione L2_3AddolcimentoDurezzaTotaleH2O L2_3flagCondizChimico
used by
element tratt_H2O/L2_3altro_trattH2O
source <xs:complexType name="altro_trattH2O">
  <xs:sequence>
    <xs:element name="L2_3flagFiltrazione" type="xs:boolean" minOccurs="0"/>
    <xs:element name="L2_3AddolcimentoDurezzaTotaleH2O" type="decimale1" minOccurs="0"/>
    <xs:element name="L2_3flagCondizChimico" type="xs:boolean" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element altro_trattH2O/L2_3flagFiltrazione
diagram libretto_diagrams/libretto_p7.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L2_3flagFiltrazione" type="xs:boolean" minOccurs="0"/>

element altro_trattH2O/L2_3AddolcimentoDurezzaTotaleH2O
diagram libretto_diagrams/libretto_p8.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L2_3AddolcimentoDurezzaTotaleH2O" type="decimale1" minOccurs="0"/>

element altro_trattH2O/L2_3flagCondizChimico
diagram libretto_diagrams/libretto_p9.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L2_3flagCondizChimico" type="xs:boolean" minOccurs="0"/>

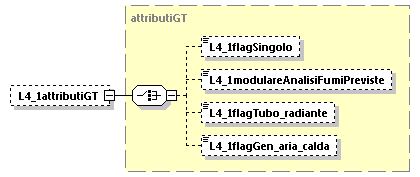

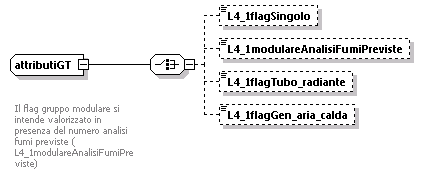

complexType attributiGT
diagram libretto_diagrams/libretto_p10.png
namespace libretto
children L4_1flagSingolo L4_1modulareAnalisiFumiPreviste L4_1flagTubo_radiante L4_1flagGen_aria_calda
used by
element rowGT/L4_1attributiGT
annotation
documentation

Il flag gruppo modulare si intende valorizzato in presenza del numero analisi fumi previste ( L4_1modulareAnalisiFumiPreviste)
source <xs:complexType name="attributiGT">
  <xs:annotation>
    <xs:documentation>
Il flag gruppo modulare si intende valorizzato in presenza del numero analisi fumi previste ( L4_1modulareAnalisiFumiPreviste)
</xs:documentation>
  </xs:annotation>
  <xs:choice>
    <xs:element name="L4_1flagSingolo" type="xs:boolean" fixed="true" minOccurs="0"/>
    <xs:element name="L4_1modulareAnalisiFumiPreviste" type="xs:integer" minOccurs="0"/>
    <xs:element name="L4_1flagTubo_radiante" type="xs:boolean" fixed="true" minOccurs="0"/>
    <xs:element name="L4_1flagGen_aria_calda" type="xs:boolean" fixed="true" minOccurs="0"/>
  </xs:choice>
</xs:complexType>

element attributiGT/L4_1flagSingolo
diagram libretto_diagrams/libretto_p11.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
fixed true
source <xs:element name="L4_1flagSingolo" type="xs:boolean" fixed="true" minOccurs="0"/>

element attributiGT/L4_1modulareAnalisiFumiPreviste
diagram libretto_diagrams/libretto_p12.png
namespace libretto
type xs:integer
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L4_1modulareAnalisiFumiPreviste" type="xs:integer" minOccurs="0"/>

element attributiGT/L4_1flagTubo_radiante
diagram libretto_diagrams/libretto_p13.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
fixed true
source <xs:element name="L4_1flagTubo_radiante" type="xs:boolean" fixed="true" minOccurs="0"/>

element attributiGT/L4_1flagGen_aria_calda
diagram libretto_diagrams/libretto_p14.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
fixed true
source <xs:element name="L4_1flagGen_aria_calda" type="xs:boolean" fixed="true" minOccurs="0"/>

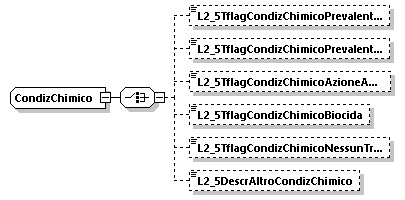

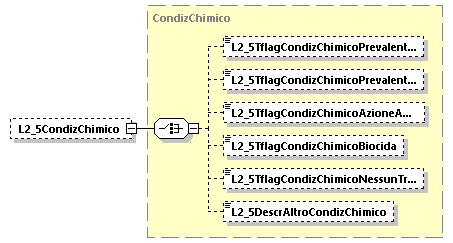

complexType CondizChimico
diagram libretto_diagrams/libretto_p15.png
namespace libretto
children L2_5TflagCondizChimicoPrevalenteAzioneAntincrostante L2_5TflagCondizChimicoPrevalenteAzioneAnticorrosiva L2_5TflagCondizChimicoAzioneAntincrostanteAnticorrosiva L2_5TflagCondizChimicoBiocida L2_5TflagCondizChimicoNessunTrattamento L2_5DescrAltroCondizChimico
used by
element tratt_H2O_esist/L2_5CondizChimico
source <xs:complexType name="CondizChimico">
  <xs:choice>
    <xs:element name="L2_5TflagCondizChimicoPrevalenteAzioneAntincrostante" type="xs:boolean" fixed="true" minOccurs="0"/>
    <xs:element name="L2_5TflagCondizChimicoPrevalenteAzioneAnticorrosiva" type="xs:boolean" fixed="true" minOccurs="0"/>
    <xs:element name="L2_5TflagCondizChimicoAzioneAntincrostanteAnticorrosiva" type="xs:boolean" fixed="true" minOccurs="0"/>
    <xs:element name="L2_5TflagCondizChimicoBiocida" type="xs:boolean" fixed="true" minOccurs="0"/>
    <xs:element name="L2_5TflagCondizChimicoNessunTrattamento" type="xs:boolean" fixed="true" minOccurs="0"/>
    <xs:element name="L2_5DescrAltroCondizChimico" type="xs:string" minOccurs="0"/>
  </xs:choice>
</xs:complexType>

element CondizChimico/L2_5TflagCondizChimicoPrevalenteAzioneAntincrostante
diagram libretto_diagrams/libretto_p16.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
fixed true
source <xs:element name="L2_5TflagCondizChimicoPrevalenteAzioneAntincrostante" type="xs:boolean" fixed="true" minOccurs="0"/>

element CondizChimico/L2_5TflagCondizChimicoPrevalenteAzioneAnticorrosiva
diagram libretto_diagrams/libretto_p17.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
fixed true
source <xs:element name="L2_5TflagCondizChimicoPrevalenteAzioneAnticorrosiva" type="xs:boolean" fixed="true" minOccurs="0"/>

element CondizChimico/L2_5TflagCondizChimicoAzioneAntincrostanteAnticorrosiva
diagram libretto_diagrams/libretto_p18.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
fixed true
source <xs:element name="L2_5TflagCondizChimicoAzioneAntincrostanteAnticorrosiva" type="xs:boolean" fixed="true" minOccurs="0"/>

element CondizChimico/L2_5TflagCondizChimicoBiocida
diagram libretto_diagrams/libretto_p19.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
fixed true
source <xs:element name="L2_5TflagCondizChimicoBiocida" type="xs:boolean" fixed="true" minOccurs="0"/>

element CondizChimico/L2_5TflagCondizChimicoNessunTrattamento
diagram libretto_diagrams/libretto_p20.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
fixed true
source <xs:element name="L2_5TflagCondizChimicoNessunTrattamento" type="xs:boolean" fixed="true" minOccurs="0"/>

element CondizChimico/L2_5DescrAltroCondizChimico
diagram libretto_diagrams/libretto_p21.png
namespace libretto
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L2_5DescrAltroCondizChimico" type="xs:string" minOccurs="0"/>

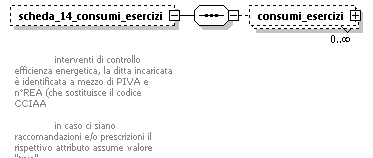

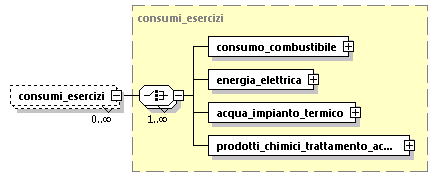

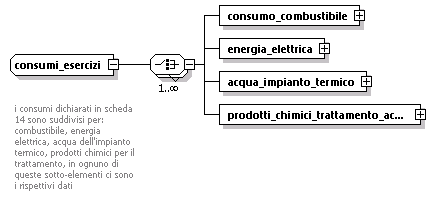

complexType consumi_esercizi
diagram libretto_diagrams/libretto_p22.png
namespace libretto

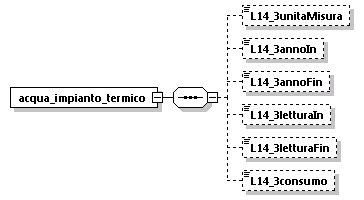

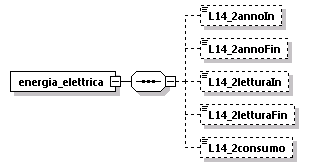

children consumo_combustibile energia_elettrica acqua_impianto_termico prodotti_chimici_trattamento_acqua
used by
element impianto/scheda_14_consumi_esercizi/consumi_esercizi
annotation
documentation

i consumi dichiarati in scheda 14 sono suddivisi per: combustibile, energia elettrica, acqua dell'impianto termico, prodotti chimici per il trattamento, in ognuno di queste sotto-elementi ci sono i rispettivi dati

source <xs:complexType name="consumi_esercizi">
  <xs:annotation>
    <xs:documentation>
i consumi dichiarati in scheda 14 sono suddivisi per: combustibile, energia elettrica, acqua dell'impianto termico, prodotti chimici per il trattamento, in ognuno di queste sotto-elementi ci sono i rispettivi dati
            </xs:documentation>
  </xs:annotation>
  <xs:choice maxOccurs="unbounded">

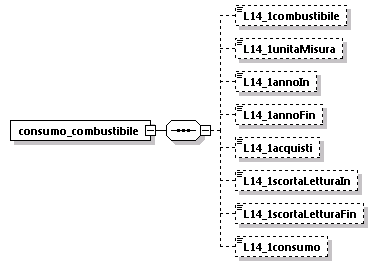

    <xs:element name="consumo_combustibile">
      <xs:complexType>
        <xs:sequence>
          <xs:element name="L14_1combustibile" type="combustibile" minOccurs="0"/>
          <xs:element name="L14_1unitaMisura" type="unita_misura_consumo" minOccurs="0"/>
          <xs:element name="L14_1annoIn" type="anno" minOccurs="0"/>
          <xs:element name="L14_1annoFin" type="anno" minOccurs="0"/>
          <xs:element name="L14_1acquisti" type="xs:decimal" minOccurs="0"/>
          <xs:element name="L14_1scortaLetturaIn" type="xs:decimal" minOccurs="0"/>
          <xs:element name="L14_1scortaLetturaFin" type="xs:decimal" minOccurs="0"/>
          <xs:element name="L14_1consumo" type="xs:decimal" minOccurs="0"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="energia_elettrica">
      <xs:complexType>
        <xs:sequence>
          <xs:element name="L14_2annoIn" type="anno" minOccurs="0"/>
          <xs:element name="L14_2annoFin" type="anno" minOccurs="0"/>
          <xs:element name="L14_2letturaIn" type="xs:decimal" minOccurs="0"/>
          <xs:element name="L14_2letturaFin" type="xs:decimal" minOccurs="0"/>
          <xs:element name="L14_2consumo" type="xs:decimal" minOccurs="0"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="acqua_impianto_termico">
      <xs:complexType>
        <xs:sequence>
          <xs:element name="L14_3unitaMisura" type="unita_misura_consumo" minOccurs="0"/>
          <xs:element name="L14_3annoIn" type="anno" minOccurs="0"/>
          <xs:element name="L14_3annoFin" type="anno" minOccurs="0"/>
          <xs:element name="L14_3letturaIn" type="xs:decimal" minOccurs="0"/>
          <xs:element name="L14_3letturaFin" type="xs:decimal" minOccurs="0"/>
          <xs:element name="L14_3consumo" type="xs:decimal" minOccurs="0"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="prodotti_chimici_trattamento_acqua">
      <xs:complexType>
        <xs:sequence>
          <xs:element name="L14_4annoIn" type="anno" minOccurs="0"/>
          <xs:element name="L14_4annoFin" type="anno" minOccurs="0"/>
          <xs:element name="L14_4prodottoChimico" type="xs:string" minOccurs="0"/>
          <xs:element name="L14_4unitaMisura" type="unita_misura_consumo" minOccurs="0"/>
          <xs:element name="L14_4consumo" type="xs:decimal" minOccurs="0"/>
          <xs:element name="L14_4flagCircuitoImpiantoTermico" type="xs:boolean" minOccurs="0"/>
          <xs:element name="L14_4flagCircuitoACS" type="xs:boolean" minOccurs="0"/>
          <xs:element name="L14_4flagCircuitoAusiliari" type="xs:boolean" minOccurs="0"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:choice>
</xs:complexType>

element consumi_esercizi/consumo_combustibile
diagram libretto_diagrams/libretto_p23.png
namespace libretto
properties
content complex
children L14_1combustibile L14_1unitaMisura L14_1annoIn L14_1annoFin L14_1acquisti L14_1scortaLetturaIn L14_1scortaLetturaFin L14_1consumo
source <xs:element name="consumo_combustibile">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="L14_1combustibile" type="combustibile" minOccurs="0"/>
      <xs:element name="L14_1unitaMisura" type="unita_misura_consumo" minOccurs="0"/>
      <xs:element name="L14_1annoIn" type="anno" minOccurs="0"/>
      <xs:element name="L14_1annoFin" type="anno" minOccurs="0"/>
      <xs:element name="L14_1acquisti" type="xs:decimal" minOccurs="0"/>
      <xs:element name="L14_1scortaLetturaIn" type="xs:decimal" minOccurs="0"/>
      <xs:element name="L14_1scortaLetturaFin" type="xs:decimal" minOccurs="0"/>
      <xs:element name="L14_1consumo" type="xs:decimal" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element consumi_esercizi/consumo_combustibile/L14_1combustibile
diagram libretto_diagrams/libretto_p24.png
namespace libretto
type combustibile
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1
maxInclusive 24
source <xs:element name="L14_1combustibile" type="combustibile" minOccurs="0"/>

element consumi_esercizi/consumo_combustibile/L14_1unitaMisura
diagram libretto_diagrams/libretto_p25.png
namespace libretto
type unita_misura_consumo
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1
maxInclusive 6
source <xs:element name="L14_1unitaMisura" type="unita_misura_consumo" minOccurs="0"/>

element consumi_esercizi/consumo_combustibile/L14_1annoIn
diagram libretto_diagrams/libretto_p26.png
namespace libretto
type anno
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minExclusive 1900
maxExclusive 2100
source <xs:element name="L14_1annoIn" type="anno" minOccurs="0"/>

element consumi_esercizi/consumo_combustibile/L14_1annoFin
diagram libretto_diagrams/libretto_p27.png
namespace libretto
type anno
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minExclusive 1900
maxExclusive 2100
source <xs:element name="L14_1annoFin" type="anno" minOccurs="0"/>

element consumi_esercizi/consumo_combustibile/L14_1acquisti
diagram libretto_diagrams/libretto_p28.png
namespace libretto
type xs:decimal
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L14_1acquisti" type="xs:decimal" minOccurs="0"/>

element consumi_esercizi/consumo_combustibile/L14_1scortaLetturaIn
diagram libretto_diagrams/libretto_p29.png
namespace libretto
type xs:decimal
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L14_1scortaLetturaIn" type="xs:decimal" minOccurs="0"/>

element consumi_esercizi/consumo_combustibile/L14_1scortaLetturaFin
diagram libretto_diagrams/libretto_p30.png
namespace libretto
type xs:decimal
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L14_1scortaLetturaFin" type="xs:decimal" minOccurs="0"/>

element consumi_esercizi/consumo_combustibile/L14_1consumo
diagram libretto_diagrams/libretto_p31.png
namespace libretto
type xs:decimal
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L14_1consumo" type="xs:decimal" minOccurs="0"/>

element consumi_esercizi/energia_elettrica
diagram libretto_diagrams/libretto_p32.png
namespace libretto
properties
content complex
children L14_2annoIn L14_2annoFin L14_2letturaIn L14_2letturaFin L14_2consumo
source <xs:element name="energia_elettrica">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="L14_2annoIn" type="anno" minOccurs="0"/>
      <xs:element name="L14_2annoFin" type="anno" minOccurs="0"/>
      <xs:element name="L14_2letturaIn" type="xs:decimal" minOccurs="0"/>
      <xs:element name="L14_2letturaFin" type="xs:decimal" minOccurs="0"/>
      <xs:element name="L14_2consumo" type="xs:decimal" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element consumi_esercizi/energia_elettrica/L14_2annoIn
diagram libretto_diagrams/libretto_p33.png
namespace libretto
type anno
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minExclusive 1900
maxExclusive 2100
source <xs:element name="L14_2annoIn" type="anno" minOccurs="0"/>

element consumi_esercizi/energia_elettrica/L14_2annoFin
diagram libretto_diagrams/libretto_p34.png
namespace libretto
type anno
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minExclusive 1900
maxExclusive 2100
source <xs:element name="L14_2annoFin" type="anno" minOccurs="0"/>

element consumi_esercizi/energia_elettrica/L14_2letturaIn
diagram libretto_diagrams/libretto_p35.png
namespace libretto
type xs:decimal
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L14_2letturaIn" type="xs:decimal" minOccurs="0"/>

element consumi_esercizi/energia_elettrica/L14_2letturaFin
diagram libretto_diagrams/libretto_p36.png
namespace libretto
type xs:decimal
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L14_2letturaFin" type="xs:decimal" minOccurs="0"/>

element consumi_esercizi/energia_elettrica/L14_2consumo
diagram libretto_diagrams/libretto_p37.png
namespace libretto
type xs:decimal
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L14_2consumo" type="xs:decimal" minOccurs="0"/>

element consumi_esercizi/acqua_impianto_termico
diagram libretto_diagrams/libretto_p38.png
namespace libretto
properties
content complex
children L14_3unitaMisura L14_3annoIn L14_3annoFin L14_3letturaIn L14_3letturaFin L14_3consumo
source <xs:element name="acqua_impianto_termico">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="L14_3unitaMisura" type="unita_misura_consumo" minOccurs="0"/>
      <xs:element name="L14_3annoIn" type="anno" minOccurs="0"/>
      <xs:element name="L14_3annoFin" type="anno" minOccurs="0"/>
      <xs:element name="L14_3letturaIn" type="xs:decimal" minOccurs="0"/>
      <xs:element name="L14_3letturaFin" type="xs:decimal" minOccurs="0"/>
      <xs:element name="L14_3consumo" type="xs:decimal" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element consumi_esercizi/acqua_impianto_termico/L14_3unitaMisura
diagram libretto_diagrams/libretto_p39.png
namespace libretto
type unita_misura_consumo
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1
maxInclusive 6
source <xs:element name="L14_3unitaMisura" type="unita_misura_consumo" minOccurs="0"/>

element consumi_esercizi/acqua_impianto_termico/L14_3annoIn
diagram libretto_diagrams/libretto_p40.png
namespace libretto
type anno
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minExclusive 1900
maxExclusive 2100
source <xs:element name="L14_3annoIn" type="anno" minOccurs="0"/>

element consumi_esercizi/acqua_impianto_termico/L14_3annoFin
diagram libretto_diagrams/libretto_p41.png
namespace libretto
type anno
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minExclusive 1900
maxExclusive 2100
source <xs:element name="L14_3annoFin" type="anno" minOccurs="0"/>

element consumi_esercizi/acqua_impianto_termico/L14_3letturaIn
diagram libretto_diagrams/libretto_p42.png
namespace libretto
type xs:decimal
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L14_3letturaIn" type="xs:decimal" minOccurs="0"/>

element consumi_esercizi/acqua_impianto_termico/L14_3letturaFin
diagram libretto_diagrams/libretto_p43.png
namespace libretto
type xs:decimal
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L14_3letturaFin" type="xs:decimal" minOccurs="0"/>

element consumi_esercizi/acqua_impianto_termico/L14_3consumo
diagram libretto_diagrams/libretto_p44.png
namespace libretto
type xs:decimal
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L14_3consumo" type="xs:decimal" minOccurs="0"/>

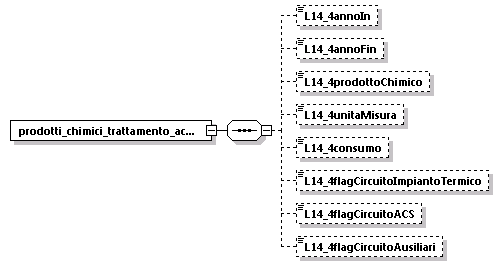

element consumi_esercizi/prodotti_chimici_trattamento_acqua
diagram libretto_diagrams/libretto_p45.png
namespace libretto
properties
content complex
children L14_4annoIn L14_4annoFin L14_4prodottoChimico L14_4unitaMisura L14_4consumo L14_4flagCircuitoImpiantoTermico L14_4flagCircuitoACS L14_4flagCircuitoAusiliari
source <xs:element name="prodotti_chimici_trattamento_acqua">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="L14_4annoIn" type="anno" minOccurs="0"/>
      <xs:element name="L14_4annoFin" type="anno" minOccurs="0"/>
      <xs:element name="L14_4prodottoChimico" type="xs:string" minOccurs="0"/>
      <xs:element name="L14_4unitaMisura" type="unita_misura_consumo" minOccurs="0"/>
      <xs:element name="L14_4consumo" type="xs:decimal" minOccurs="0"/>
      <xs:element name="L14_4flagCircuitoImpiantoTermico" type="xs:boolean" minOccurs="0"/>
      <xs:element name="L14_4flagCircuitoACS" type="xs:boolean" minOccurs="0"/>
      <xs:element name="L14_4flagCircuitoAusiliari" type="xs:boolean" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element consumi_esercizi/prodotti_chimici_trattamento_acqua/L14_4annoIn
diagram libretto_diagrams/libretto_p46.png
namespace libretto
type anno
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minExclusive 1900
maxExclusive 2100
source <xs:element name="L14_4annoIn" type="anno" minOccurs="0"/>

element consumi_esercizi/prodotti_chimici_trattamento_acqua/L14_4annoFin
diagram libretto_diagrams/libretto_p47.png
namespace libretto
type anno
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minExclusive 1900
maxExclusive 2100
source <xs:element name="L14_4annoFin" type="anno" minOccurs="0"/>

element consumi_esercizi/prodotti_chimici_trattamento_acqua/L14_4prodottoChimico
diagram libretto_diagrams/libretto_p48.png
namespace libretto
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L14_4prodottoChimico" type="xs:string" minOccurs="0"/>

element consumi_esercizi/prodotti_chimici_trattamento_acqua/L14_4unitaMisura
diagram libretto_diagrams/libretto_p49.png
namespace libretto
type unita_misura_consumo
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1
maxInclusive 6
source <xs:element name="L14_4unitaMisura" type="unita_misura_consumo" minOccurs="0"/>

element consumi_esercizi/prodotti_chimici_trattamento_acqua/L14_4consumo
diagram libretto_diagrams/libretto_p50.png
namespace libretto
type xs:decimal
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L14_4consumo" type="xs:decimal" minOccurs="0"/>

element consumi_esercizi/prodotti_chimici_trattamento_acqua/L14_4flagCircuitoImpiantoTermico
diagram libretto_diagrams/libretto_p51.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L14_4flagCircuitoImpiantoTermico" type="xs:boolean" minOccurs="0"/>

element consumi_esercizi/prodotti_chimici_trattamento_acqua/L14_4flagCircuitoACS
diagram libretto_diagrams/libretto_p52.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L14_4flagCircuitoACS" type="xs:boolean" minOccurs="0"/>

element consumi_esercizi/prodotti_chimici_trattamento_acqua/L14_4flagCircuitoAusiliari
diagram libretto_diagrams/libretto_p53.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L14_4flagCircuitoAusiliari" type="xs:boolean" minOccurs="0"/>

complexType dati_catastali
diagram libretto_diagrams/libretto_p54.png
namespace libretto
children L1_2codice_catastale_comune L1_2sezione L1_2foglio L1_2mappale_particella L1_2unitaimmobiliare
used by
element datiImmobile/datiCatastali
annotation
documentation

                dati catastali che identificano l'immobile servito

source <xs:complexType name="dati_catastali">
  <xs:annotation>
    <xs:documentation>
                dati catastali che identificano l'immobile servito
                </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="L1_2codice_catastale_comune" type="codice_catastale_comune" minOccurs="0"/>
    <xs:element name="L1_2sezione" type="xs:string" minOccurs="0"/>
    <xs:element name="L1_2foglio" type="xs:string" minOccurs="0"/>
    <xs:element name="L1_2mappale_particella" type="xs:string" minOccurs="0"/>
    <xs:element name="L1_2unitaimmobiliare" type="unitaimmobiliare" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>

element dati_catastali/L1_2codice_catastale_comune
diagram libretto_diagrams/libretto_p55.png
namespace libretto
type codice_catastale_comune
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
length 4
pattern [a-zA-Z]{1}[0-9]{3}
source <xs:element name="L1_2codice_catastale_comune" type="codice_catastale_comune" minOccurs="0"/>

element dati_catastali/L1_2sezione
diagram libretto_diagrams/libretto_p56.png
namespace libretto
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L1_2sezione" type="xs:string" minOccurs="0"/>

element dati_catastali/L1_2foglio
diagram libretto_diagrams/libretto_p57.png
namespace libretto
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L1_2foglio" type="xs:string" minOccurs="0"/>

element dati_catastali/L1_2mappale_particella
diagram libretto_diagrams/libretto_p58.png
namespace libretto
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L1_2mappale_particella" type="xs:string" minOccurs="0"/>

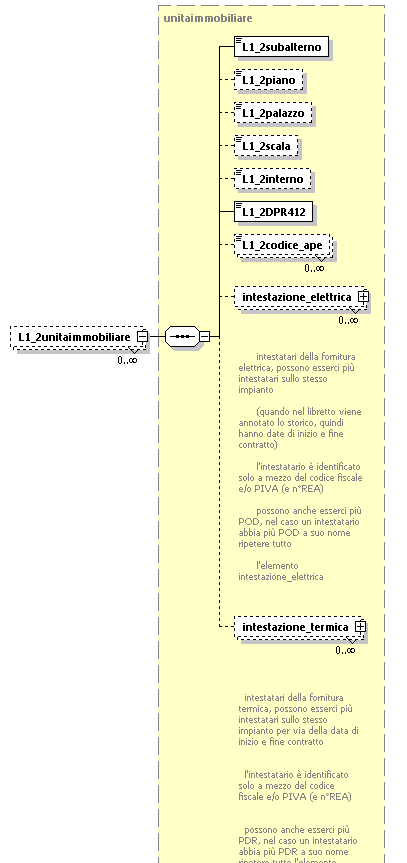

element dati_catastali/L1_2unitaimmobiliare
diagram libretto_diagrams/libretto_p59.png
namespace libretto
type unitaimmobiliare
properties
minOcc 0
maxOcc unbounded
content complex
children L1_2subalterno L1_2piano L1_2palazzo L1_2scala L1_2interno L1_2DPR412 L1_2codice_ape intestazione_elettrica intestazione_termica
source <xs:element name="L1_2unitaimmobiliare" type="unitaimmobiliare" minOccurs="0" maxOccurs="unbounded"/>

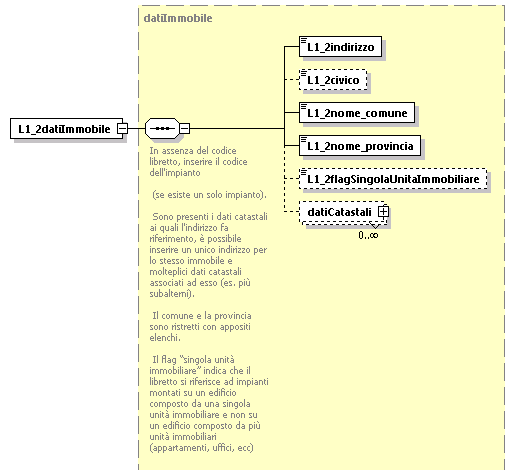

complexType datiImmobile
diagram libretto_diagrams/libretto_p60.png
namespace libretto
children L1_2indirizzo L1_2civico L1_2nome_comune L1_2nome_provincia L1_2flagSingolaUnitaImmobiliare datiCatastali
used by
element impianto/scheda_1_dati_identificativi_impianto/L1_2datiImmobile
source <xs:complexType name="datiImmobile">
  <xs:sequence>
    <xs:annotation>
      <xs:documentation>In assenza del codice libretto, inserire il codice dell'impianto
          (se esiste un solo impianto).
          Sono presenti i dati catastali ai quali l'indirizzo fa riferimento, è possibile inserire un unico indirizzo per lo stesso immobile e molteplici dati catastali associati ad esso (es. più subalterni).
          Il comune e la provincia sono ristretti con appositi elenchi.
          Il flag “singola unità immobiliare” indica che il libretto si riferisce ad impianti montati su un edificio composto da una singola unità immobiliare e non su un edificio composto da più unità immobiliari (appartamenti, uffici, ecc)
                                </xs:documentation>
    </xs:annotation>
    <xs:element name="L1_2indirizzo" type="xs:string"/>
    <xs:element name="L1_2civico" type="xs:string" minOccurs="0"/>
    <xs:element name="L1_2nome_comune" type="comune"/>
    <xs:element name="L1_2nome_provincia" type="provincia"/>
    <xs:element name="L1_2flagSingolaUnitaImmobiliare" type="xs:boolean" minOccurs="0"/>

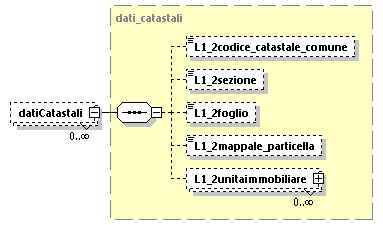

    <xs:element name="datiCatastali" type="dati_catastali" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>

element datiImmobile/L1_2indirizzo
diagram libretto_diagrams/libretto_p61.png
namespace libretto
type xs:string
properties
content simple
source <xs:element name="L1_2indirizzo" type="xs:string"/>

element datiImmobile/L1_2civico
diagram libretto_diagrams/libretto_p62.png
namespace libretto
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L1_2civico" type="xs:string" minOccurs="0"/>

element datiImmobile/L1_2nome_comune
diagram libretto_diagrams/libretto_p63.png
namespace libretto
type comune
properties
content simple
facets
Kind Value Annotation
enumeration Accadia
enumeration Acquaviva delle Fonti
enumeration Adelfia
enumeration Alberobello
enumeration Alberona
enumeration Alessano
enumeration Alezio
enumeration Alliste
enumeration Altamura
enumeration Andrano
enumeration Andria
enumeration Anzano di Puglia
enumeration Apricena
enumeration Aradeo
enumeration Arnesano
enumeration Ascoli Satriano
enumeration Avetrana
enumeration Bagnolo del Salento
enumeration Bari
enumeration Barletta
enumeration Biccari
enumeration Binetto
enumeration Bisceglie
enumeration Bitetto
enumeration Bitonto
enumeration Bitritto
enumeration Botrugno
enumeration Bovino
enumeration Brindisi
enumeration Cagnano Varano
enumeration Calimera
enumeration Campi Salentina
enumeration Candela
enumeration Cannole
enumeration Canosa di Puglia
enumeration Caprarica di Lecce
enumeration Capurso
enumeration Carapelle
enumeration Carlantino
enumeration Carmiano
enumeration Carosino
enumeration Carovigno
enumeration Carpignano Salentino
enumeration Carpino
enumeration Casalnuovo Monterotaro
enumeration Casalvecchio di Puglia
enumeration Casamassima
enumeration Casarano
enumeration Cassano delle Murge
enumeration Castellana Grotte
enumeration Castellaneta
enumeration Castelluccio dei Sauri
enumeration Castelluccio Valmaggiore
enumeration Castelnuovo della Daunia
enumeration Castri di Lecce
enumeration Castrignano de' Greci
enumeration Castrignano del Capo
enumeration Castro
enumeration Cavallino
enumeration Ceglie Messapica
enumeration Celenza Valfortore
enumeration Cellamare
enumeration Celle di San Vito
enumeration Cellino San Marco
enumeration Cerignola
enumeration Chieuti
enumeration Cisternino
enumeration Collepasso
enumeration Conversano
enumeration Copertino
enumeration Corato
enumeration Corigliano d'Otranto
enumeration Corsano
enumeration Crispiano
enumeration Cursi
enumeration Cutrofiano
enumeration Deliceto
enumeration Diso
enumeration Erchie
enumeration Faeto
enumeration Faggiano
enumeration Fasano
enumeration Foggia
enumeration Fragagnano
enumeration Francavilla Fontana
enumeration Gagliano del Capo
enumeration Galatina
enumeration Galatone
enumeration Gallipoli
enumeration Ginosa
enumeration Gioia del Colle
enumeration Giovinazzo
enumeration Giuggianello
enumeration Giurdignano
enumeration Gravina in Puglia
enumeration Grottaglie
enumeration Grumo Appula
enumeration Guagnano
enumeration Ischitella
enumeration Isole Tremiti
enumeration Laterza
enumeration Latiano
enumeration Lecce
enumeration Leporano
enumeration Lequile
enumeration Lesina
enumeration Leverano
enumeration Lizzanello
enumeration Lizzano
enumeration Locorotondo
enumeration Lucera
enumeration Maglie
enumeration Manduria
enumeration Manfredonia
enumeration Margherita di Savoia
enumeration Martano
enumeration Martignano
enumeration Martina Franca
enumeration Maruggio
enumeration Massafra
enumeration Matino
enumeration Mattinata
enumeration Melendugno
enumeration Melissano
enumeration Melpignano
enumeration Mesagne
enumeration Miggiano
enumeration Minervino di Lecce
enumeration Minervino Murge
enumeration Modugno
enumeration Mola di Bari
enumeration Molfetta
enumeration Monopoli
enumeration Monteiasi
enumeration Monteleone di Puglia
enumeration Montemesola
enumeration Monteparano
enumeration Monteroni di Lecce
enumeration Montesano Salentino
enumeration Monte Sant'Angelo
enumeration Morciano di Leuca
enumeration Motta Montecorvino
enumeration Mottola
enumeration Muro Leccese
enumeration Nardò
enumeration Neviano
enumeration Noci
enumeration Nociglia
enumeration Noicattaro
enumeration Novoli
enumeration Ordona
enumeration Oria
enumeration Orsara di Puglia
enumeration Orta Nova
enumeration Ortelle
enumeration Ostuni
enumeration Otranto
enumeration Palagianello
enumeration Palagiano
enumeration Palmariggi
enumeration Palo del Colle
enumeration Panni
enumeration Parabita
enumeration Patù
enumeration Peschici
enumeration Pietramontecorvino
enumeration Poggiardo
enumeration Poggio Imperiale
enumeration Poggiorsini
enumeration Polignano a Mare
enumeration Porto Cesareo
enumeration Presicce-Acquarica
enumeration Pulsano
enumeration Putignano
enumeration Racale
enumeration Rignano Garganico
enumeration Roccaforzata
enumeration Rocchetta Sant'Antonio
enumeration Rodi Garganico
enumeration Roseto Valfortore
enumeration Ruffano
enumeration Rutigliano
enumeration Ruvo di Puglia
enumeration Salice Salentino
enumeration Salve
enumeration Sammichele di Bari
enumeration Sanarica
enumeration San Cassiano
enumeration San Cesario di Lecce
enumeration San Donaci
enumeration San Donato di Lecce
enumeration San Ferdinando di Puglia
enumeration San Giorgio Ionico
enumeration San Giovanni Rotondo
enumeration San Marco in Lamis
enumeration San Marco la Catola
enumeration San Marzano di San Giuseppe
enumeration San Michele Salentino
enumeration Sannicandro di Bari
enumeration San Nicandro Garganico
enumeration Sannicola
enumeration San Pancrazio Salentino
enumeration San Paolo di Civitate
enumeration San Pietro in Lama
enumeration San Pietro Vernotico
enumeration San Severo
enumeration Santa Cesarea Terme
enumeration Sant'Agata di Puglia
enumeration Santeramo in Colle
enumeration San Vito dei Normanni
enumeration Sava
enumeration Scorrano
enumeration Seclì
enumeration Serracapriola
enumeration Sogliano Cavour
enumeration Soleto
enumeration Specchia
enumeration Spinazzola
enumeration Spongano
enumeration Squinzano
enumeration Statte
enumeration Sternatia
enumeration Stornara
enumeration Stornarella
enumeration Supersano
enumeration Surano
enumeration Surbo
enumeration Taranto
enumeration Taurisano
enumeration Taviano
enumeration Terlizzi
enumeration Tiggiano
enumeration Torchiarolo
enumeration Toritto
enumeration Torremaggiore
enumeration Torre Santa Susanna
enumeration Torricella
enumeration Trani
enumeration Trepuzzi
enumeration Tricase
enumeration Triggiano
enumeration Trinitapoli
enumeration Troia
enumeration Tuglie
enumeration Turi
enumeration Ugento
enumeration Uggiano la Chiesa
enumeration Valenzano
enumeration Veglie
enumeration Vernole
enumeration Vico del Gargano
enumeration Vieste
enumeration Villa Castelli
enumeration Volturara Appula
enumeration Volturino
enumeration Zapponeta
enumeration Zollino
source <xs:element name="L1_2nome_comune" type="comune"/>

element datiImmobile/L1_2nome_provincia
diagram libretto_diagrams/libretto_p64.png
namespace libretto
type provincia
properties
content simple
facets
Kind Value Annotation
enumeration BA
enumeration BT
enumeration BR
enumeration FG
enumeration LE
enumeration TA
source <xs:element name="L1_2nome_provincia" type="provincia"/>

element datiImmobile/L1_2flagSingolaUnitaImmobiliare
diagram libretto_diagrams/libretto_p65.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L1_2flagSingolaUnitaImmobiliare" type="xs:boolean" minOccurs="0"/>

element datiImmobile/datiCatastali
diagram libretto_diagrams/libretto_p66.png
namespace libretto
type dati_catastali
properties
minOcc 0
maxOcc unbounded
content complex
children L1_2codice_catastale_comune L1_2sezione L1_2foglio L1_2mappale_particella L1_2unitaimmobiliare
source <xs:element name="datiCatastali" type="dati_catastali" minOccurs="0" maxOccurs="unbounded"/>

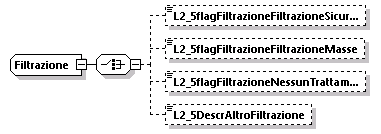

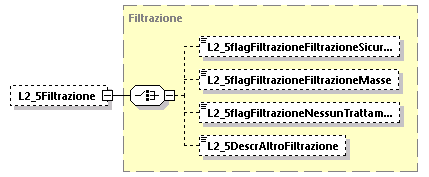

complexType Filtrazione
diagram libretto_diagrams/libretto_p67.png
namespace libretto
children L2_5flagFiltrazioneFiltrazioneSicurezza L2_5flagFiltrazioneFiltrazioneMasse L2_5flagFiltrazioneNessunTrattamento L2_5DescrAltroFiltrazione
used by

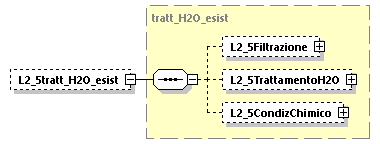

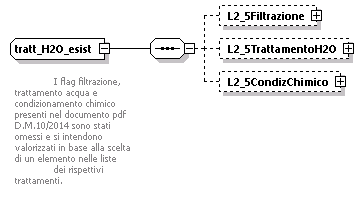

element tratt_H2O_esist/L2_5Filtrazione
source <xs:complexType name="Filtrazione">
  <xs:choice>
    <xs:element name="L2_5flagFiltrazioneFiltrazioneSicurezza" type="xs:boolean" fixed="true" minOccurs="0"/>
    <xs:element name="L2_5flagFiltrazioneFiltrazioneMasse" type="xs:boolean" fixed="true" minOccurs="0"/>
    <xs:element name="L2_5flagFiltrazioneNessunTrattamento" type="xs:boolean" fixed="true" minOccurs="0"/>
    <xs:element name="L2_5DescrAltroFiltrazione" type="xs:string" minOccurs="0"/>
  </xs:choice>
</xs:complexType>

element Filtrazione/L2_5flagFiltrazioneFiltrazioneSicurezza
diagram libretto_diagrams/libretto_p68.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
fixed true
source <xs:element name="L2_5flagFiltrazioneFiltrazioneSicurezza" type="xs:boolean" fixed="true" minOccurs="0"/>

element Filtrazione/L2_5flagFiltrazioneFiltrazioneMasse
diagram libretto_diagrams/libretto_p69.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
fixed true
source <xs:element name="L2_5flagFiltrazioneFiltrazioneMasse" type="xs:boolean" fixed="true" minOccurs="0"/>

element Filtrazione/L2_5flagFiltrazioneNessunTrattamento
diagram libretto_diagrams/libretto_p70.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
fixed true
source <xs:element name="L2_5flagFiltrazioneNessunTrattamento" type="xs:boolean" fixed="true" minOccurs="0"/>

element Filtrazione/L2_5DescrAltroFiltrazione
diagram libretto_diagrams/libretto_p71.png
namespace libretto
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L2_5DescrAltroFiltrazione" type="xs:string" minOccurs="0"/>

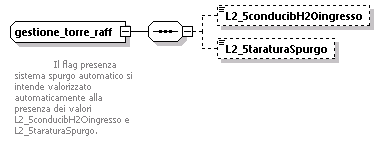

complexType gestione_torre_raff
diagram libretto_diagrams/libretto_p72.png
namespace libretto
children L2_5conducibH2Oingresso L2_5taraturaSpurgo
used by
element tratt_H2O_climaEst/L2_5altro_tratt_H2O_climaEst/L2_5gestione_torre_raff
annotation
documentation

             Il flag presenza sistema spurgo automatico si intende valorizzato automaticamente alla presenza dei valori L2_5conducibH2Oingresso e L2_5taraturaSpurgo.

source <xs:complexType name="gestione_torre_raff">
  <xs:annotation>
    <xs:documentation>
             Il flag presenza sistema spurgo automatico si intende valorizzato automaticamente alla presenza dei valori L2_5conducibH2Oingresso e L2_5taraturaSpurgo.
         </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="L2_5conducibH2Oingresso" type="decimale1" minOccurs="0"/>
    <xs:element name="L2_5taraturaSpurgo" type="decimale1" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element gestione_torre_raff/L2_5conducibH2Oingresso
diagram libretto_diagrams/libretto_p73.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L2_5conducibH2Oingresso" type="decimale1" minOccurs="0"/>

element gestione_torre_raff/L2_5taraturaSpurgo
diagram libretto_diagrams/libretto_p74.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L2_5taraturaSpurgo" type="decimale1" minOccurs="0"/>

complexType impianto
diagram libretto_diagrams/libretto_p75.png
namespace libretto
children scheda_1_dati_identificativi_impianto scheda_2_trattamento_acqua scheda_3_terzo_responsabile scheda_4_generatori scheda_5_sistemi_regolazione_contabilizzazione scheda_6_sistema_distribuzione scheda_7_emissione scheda_8_sistema_accumulo scheda_9_altriComponenti scheda_10_ventilazione scheda_11_1_VerificaGruppiTermici scheda_11_2_VerificaGruppiFrigo scheda_11_3_VerificaScambiatoreCalore scheda_11_4_VerificaCogeneratoriTrigeneratori scheda_12_interventi_CEE scheda_13_ispezione_autorita scheda_14_consumi_esercizi
used by
element libretto/impianto
annotation
documentation

Dati relativi all'impianto termico, questo elemento è composto dai seguenti sotto-elementi:
scheda_1_dati_identificativi_impianto
dati relativi all'edificio/immobile e dati catastali

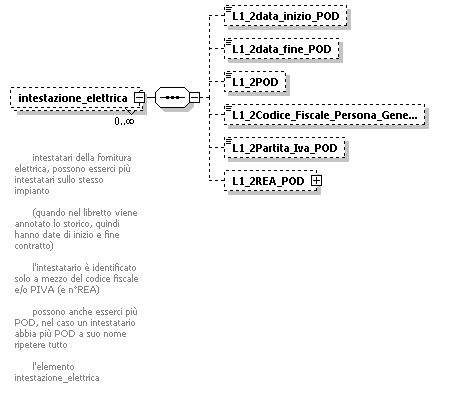

intestazione_elettrica

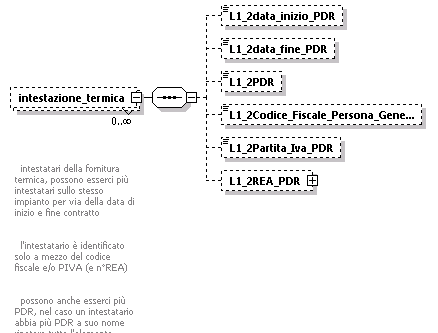

intestazione_termica
scheda_2_trattamento_acqua
scheda_3_terzo_responsabile

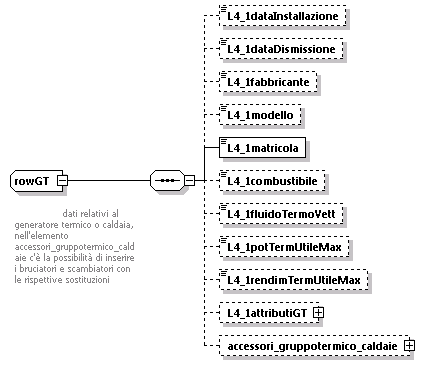

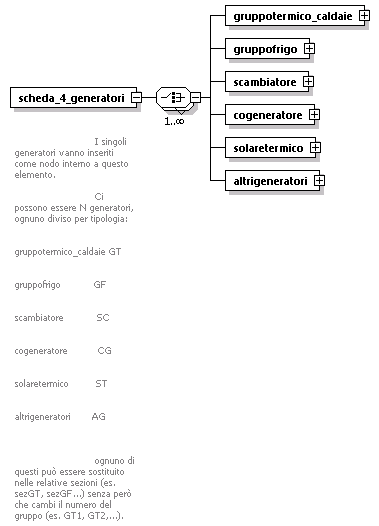

scheda_4_generatori

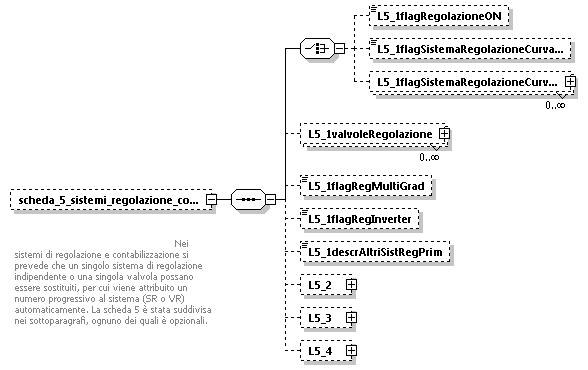

scheda_5_sistemi_regolazione_contabilizzazione

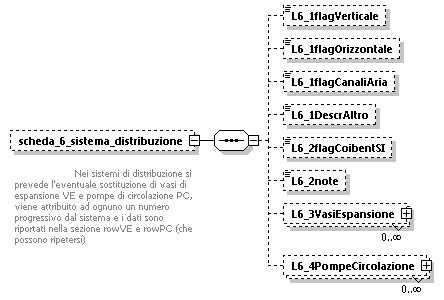

scheda_6_sistema_distribuzione
scheda_7_emissione
scheda_8_sistema_accumulo

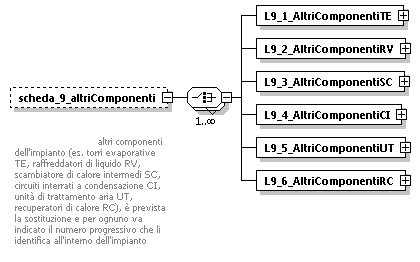

scheda_9_altriComponenti
scheda_10_ventilazione

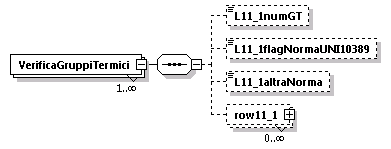

scheda_11_1_VerificaGruppiTermici

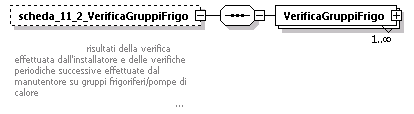

scheda_11_2_VerificaGruppiFrigo
scheda_11_3_VerificaScambiatoreCalore

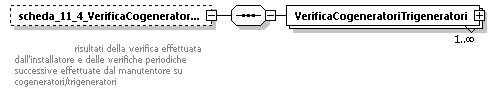

scheda_11_4_VerificaCogeneratoriTrigeneratori

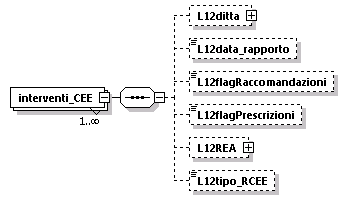

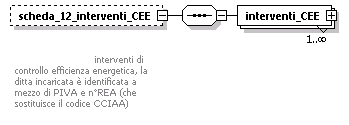

scheda_12_interventi_CEE

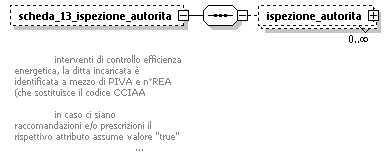

scheda_13_ispezione_autorita
scheda_14_consumi_esercizi

source <xs:complexType name="impianto">
  <xs:annotation>
    <xs:documentation>
Dati relativi all'impianto termico, questo elemento è composto dai seguenti sotto-elementi:
scheda_1_dati_identificativi_impianto
dati relativi all'edificio/immobile e dati catastali
intestazione_elettrica
intestazione_termica
scheda_2_trattamento_acqua
scheda_3_terzo_responsabile
scheda_4_generatori
scheda_5_sistemi_regolazione_contabilizzazione
scheda_6_sistema_distribuzione
scheda_7_emissione
scheda_8_sistema_accumulo
scheda_9_altriComponenti
scheda_10_ventilazione
scheda_11_1_VerificaGruppiTermici
scheda_11_2_VerificaGruppiFrigo
scheda_11_3_VerificaScambiatoreCalore
scheda_11_4_VerificaCogeneratoriTrigeneratori
scheda_12_interventi_CEE
scheda_13_ispezione_autorita
scheda_14_consumi_esercizi
        </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="scheda_1_dati_identificativi_impianto">
      <xs:annotation>
        <xs:documentation>
Nel libretto ministeriale il flag Altro al punto 1.3 è implicito se valorizzato il campo L1_3descrAltro. Analogamente vale per i flag Altro ai punti 1.4 e 1.5 con i campi L1_4flagAltro e L1_5descrAltro. I dati identificativi relativi all'unità immobiliare sono stati spostati all'interno dell'elemento L1_2datiImmobile.
</xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence>
          <xs:element name="L1_codice_impianto" type="xs:string">
            <xs:annotation>
              <xs:documentation>In assenza del codice impianto, inserire il codice del libretto
  (se esiste un solo impianto).</xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:element name="L1_2datiImmobile" type="datiImmobile"/>
          <xs:element name="L1_2volLordoRisc" type="decimale1" minOccurs="0"/>
          <xs:element name="L1_2volLordoRaffr" type="decimale1" minOccurs="0"/>
          <xs:element name="L1_3flagProdACS" type="xs:boolean" minOccurs="0"/>
          <xs:element name="L1_3potUtileACS" type="decimale1" minOccurs="0"/>
          <xs:element name="L1_3flagClimaInv" type="xs:boolean" minOccurs="0"/>
          <xs:element name="L1_3potUtileClimaInv" type="decimale1" minOccurs="0"/>
          <xs:element name="L1_3flagClimaEst" type="xs:boolean" minOccurs="0"/>
          <xs:element name="L1_3potUtileClimaEst" type="decimale1" minOccurs="0"/>
          <xs:element name="L1_3descrAltro" type="xs:string" minOccurs="0"/>
          <xs:element name="L1_4flagH2O" type="xs:boolean" minOccurs="0"/>
          <xs:element name="L1_4flagAria" type="xs:boolean" minOccurs="0"/>
          <xs:element name="L1_4descrAltro" type="xs:string" minOccurs="0"/>
          <xs:element name="L1_5flagGeneratCombu" type="xs:boolean" minOccurs="0"/>
          <xs:element name="L1_5flagPompaCal" type="xs:boolean" minOccurs="0"/>
          <xs:element name="L1_5flagMaccFrigo" type="xs:boolean" minOccurs="0"/>
          <xs:element name="L1_5flagTelerisc" type="xs:boolean" minOccurs="0"/>
          <xs:element name="L1_5flagTeleraffr" type="xs:boolean" minOccurs="0"/>
          <xs:element name="L1_5flagCogener" type="xs:boolean" minOccurs="0"/>
          <xs:element name="L1_5descrAltro" type="xs:string" minOccurs="0"/>
          <xs:element name="L1_5flagPannelliSol" type="xs:boolean" minOccurs="0"/>
          <xs:element name="L1_5superfLordaTot" type="decimale1" minOccurs="0"/>
          <xs:element name="L1_5flagAltraIntegraz" type="xs:boolean" minOccurs="0"/>
          <xs:element name="L1_5potUtile" type="decimale1" minOccurs="0"/>
          <xs:element name="L1_5descrAltrIntegraz" type="xs:string" minOccurs="0"/>
          <xs:element name="L1_5flagClimaInv" type="xs:boolean" minOccurs="0"/>
          <xs:element name="L1_5flagClimaEst" type="xs:boolean" minOccurs="0"/>
          <xs:element name="L1_5flagProdACS" type="xs:boolean" minOccurs="0"/>
          <xs:element name="L1_5descrAltroPer" type="xs:string" minOccurs="0"/>
          <xs:element name="L1_6responsabile" type="persona_generica" minOccurs="0"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="scheda_2_trattamento_acqua" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
   la scheda 2 trattamento acqua è composta da 5 punti, riguardanti rispettivamente:
   il contenuto dell'acqua dell'impianto di climatizzazione in m3
   la durezza in gradi francesi
   il trattamento dell'acqua Rif.UNI 8065
   eventuale protezione del gelo
   trattamento ACS
   trattamento impianto climatizzazione estivo
</xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence>
          <xs:element name="L2_1contenutoH2OimpClima" type="decimale1"/>
          <xs:element name="L2_2durezzaTotaleH2O" type="decimale1"/>

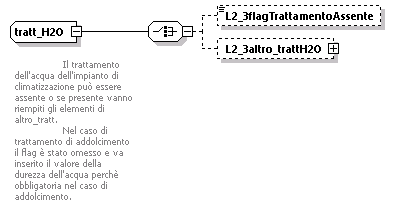

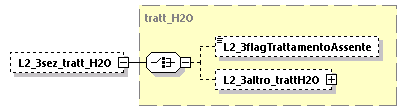

          <xs:element name="L2_3sez_tratt_H2O" type="tratt_H2O" minOccurs="0"/>

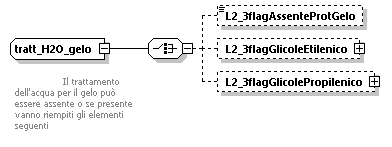

          <xs:element name="L2_3sez_tratt_H2O_gelo" type="tratt_H2O_gelo" minOccurs="0"/>

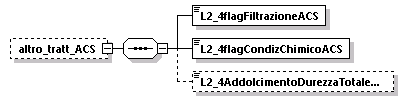

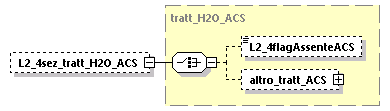

          <xs:element name="L2_4sez_tratt_H2O_ACS" type="tratt_H2O_ACS" minOccurs="0"/>

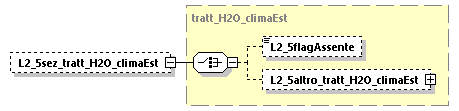

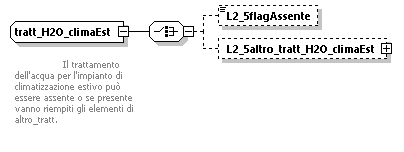

          <xs:element name="L2_5sez_tratt_H2O_climaEst" type="tratt_H2O_climaEst" minOccurs="0"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>

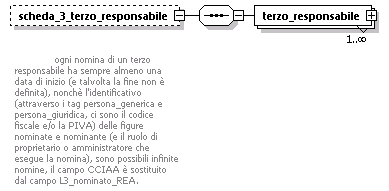

    <xs:element name="scheda_3_terzo_responsabile" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
ogni nomina di un terzo responsabile ha sempre almeno una data di inizio (e talvolta la fine non è definita), nonchè l'identificativo (attraverso i tag persona_generica e persona_giuridica, ci sono il codice fiscale e/o la PIVA) delle figure nominate e nominante (e il ruolo di proprietario o amministratore che esegue la nomina), sono possibili infinite nomine, il campo CCIAA è sostituito dal campo L3_nominato_REA.
</xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence>
          <xs:element name="terzo_responsabile" maxOccurs="unbounded">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="L3_nominante" type="persona_generica" minOccurs="0"/>
                <xs:element name="L3_nominato" type="persona_giuridica" minOccurs="0"/>
                <xs:element name="L3_nominato_REA" type="REA" minOccurs="0"/>
                <xs:element name="L3_data_inizio_nomina" type="data" minOccurs="0"/>
                <xs:element name="L3_data_fine_nomina" type="data" minOccurs="0"/>
                <xs:element name="L3_ruolo_nominante" type="ruolo_nominante" minOccurs="0"/>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="scheda_4_generatori">
      <xs:annotation>
        <xs:documentation>
I singoli generatori vanno inseriti come nodo interno a questo elemento.
Ci possono essere N generatori, ognuno diviso per tipologia:
gruppotermico_caldaie GT
gruppofrigo           GF
scambiatore           SC
cogeneratore          CG
solaretermico         ST
altrigeneratori       AG

ognuno di questi può essere sostituito nelle relative sezioni (es. sezGT, sezGF...) senza però che cambi il numero del gruppo (es. GT1, GT2,...).
nel caso ci siano bruciatori BR o scambiatori di calore SC collegati al gruppo termico, la sezione relativa ai loro dati e al numero progressivo che li identifica si trova nel rowGT cui sono collegati
</xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:choice maxOccurs="unbounded">
          <xs:element name="gruppotermico_caldaie">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="L4_1numGT" type="xs:integer"/>
                <xs:element name="rowGT" type="rowGT" maxOccurs="unbounded"/>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
          <xs:element name="gruppofrigo">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="L4_4numGF" type="xs:integer"/>
                <xs:element name="rowGF" type="rowGF" maxOccurs="unbounded"/>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
          <xs:element name="scambiatore">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="L4_5numSC" type="xs:integer"/>
                <xs:element name="rowSC" type="rowSC" maxOccurs="unbounded"/>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
          <xs:element name="cogeneratore">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="L4_6numCG" type="xs:integer"/>
                <xs:element name="rowCG" type="rowCG" maxOccurs="unbounded"/>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
          <xs:element name="solaretermico">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="L4_7numCS" type="xs:integer"/>
                <xs:element name="rowCS" type="rowCS" maxOccurs="unbounded"/>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
          <xs:element name="altrigeneratori">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="L4_8numAG" type="xs:integer"/>
                <xs:element name="rowAG" type="rowAG" maxOccurs="unbounded"/>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
        </xs:choice>
      </xs:complexType>
    </xs:element>
    <xs:element name="scheda_5_sistemi_regolazione_contabilizzazione" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
Nei sistemi di regolazione e contabilizzazione si prevede che un singolo sistema di regolazione indipendente o una singola valvola possano essere sostituiti, per cui viene attribuito un numero progressivo al sistema (SR o VR) automaticamente. La scheda 5 è stata suddivisa nei sottoparagrafi, ognuno dei quali è opzionali.
</xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence>
          <xs:choice>
            <xs:element name="L5_1flagRegolazioneON" type="xs:boolean" fixed="true" minOccurs="0"/>
            <xs:element name="L5_1flagSistemaRegolazioneCurvaIntegrata" type="xs:boolean" fixed="true" minOccurs="0"/>
            <xs:element name="L5_1flagSistemaRegolazioneCurvaIndipendente" type="rowSR" minOccurs="0" maxOccurs="unbounded"/>
          </xs:choice>
          <xs:element name="L5_1valvoleRegolazione" type="rowVR" minOccurs="0" maxOccurs="unbounded"/>
          <xs:element name="L5_1flagRegMultiGrad" type="xs:boolean" minOccurs="0"/>
          <xs:element name="L5_1flagRegInverter" type="xs:boolean" minOccurs="0"/>
          <xs:element name="L5_1descrAltriSistRegPrim" type="xs:string" minOccurs="0"/>
          <xs:element name="L5_2" minOccurs="0">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="L5_2termostato" type="tipoTermostato" minOccurs="0"/>
                <xs:element name="L5_2flagValvTermostSI" type="xs:boolean" minOccurs="0"/>
                <xs:element name="L5_2flagValvDueVieSI" type="xs:boolean" minOccurs="0"/>
                <xs:element name="L5_2flagValvTreVieSI" type="xs:boolean" minOccurs="0"/>
                <xs:element name="L5_2note" type="xs:string" minOccurs="0"/>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
          <xs:element name="L5_3" minOccurs="0">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="L5_3flagTeleLetturaSI" type="xs:boolean" minOccurs="0"/>
                <xs:element name="L5_3flagTeleGestioneSI" type="xs:boolean" minOccurs="0"/>
                <xs:element name="L5_3descrSistemaIniziale" type="xs:string" minOccurs="0"/>
                <xs:element name="L5_3SistemaSostituto" minOccurs="0" maxOccurs="unbounded">
                  <xs:complexType>
                    <xs:sequence>
                      <xs:element name="L5_3dataSostituzione" type="data" minOccurs="0"/>
                      <xs:element name="L5_3descrSistemaSost" type="xs:string" minOccurs="0"/>
                    </xs:sequence>
                  </xs:complexType>
                </xs:element>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
          <xs:element name="L5_4" minOccurs="0">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="L5_4ContabilizzazioneUISI" minOccurs="0">
                  <xs:annotation>
                    <xs:documentation>
   Il flag "L5_4ContabilizzazioneUISI" segue la presenza degli attributi alternativi tra loro: L5_4flagRiscald, L5_4flagRaffresc, L5_4flagACS. Il sistema di contabilizzazione può essere sostituito e in tal caso compare L5_4SistemaSostituto.
</xs:documentation>
                  </xs:annotation>
                  <xs:complexType>
                    <xs:choice minOccurs="0" maxOccurs="3">
                      <xs:element name="L5_4flagRiscald" type="xs:boolean" fixed="true" minOccurs="0"/>
                      <xs:element name="L5_4flagRaffresc" type="xs:boolean" fixed="true" minOccurs="0"/>
                      <xs:element name="L5_4flagACS" type="xs:boolean" fixed="true" minOccurs="0"/>
                    </xs:choice>
                  </xs:complexType>
                </xs:element>
                <xs:element name="L5_4flagSistemaDiretto" type="xs:boolean" minOccurs="0"/>
                <xs:element name="L5_4descrSistema" type="xs:string" minOccurs="0"/>
                <xs:element name="L5_4SistemaSostituto" minOccurs="0" maxOccurs="unbounded">
                  <xs:complexType>
                    <xs:sequence>
                      <xs:element name="L5_4dataSostituzione" type="data" minOccurs="0"/>
                      <xs:element name="L5_4descrSistemaSost" type="xs:string" minOccurs="0"/>
                    </xs:sequence>
                  </xs:complexType>
                </xs:element>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="scheda_6_sistema_distribuzione" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
                    Nei sistemi di distribuzione si prevede l'eventuale sostituzione di vasi di espansione VE e pompe di circolazione PC, viene attribuito ad ognuno un numero progressivo dal sistema e i dati sono riportati nella sezione rowVE e rowPC (che possono ripetersi)
                     </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence>
          <xs:element name="L6_1flagVerticale" type="xs:boolean" minOccurs="0"/>
          <xs:element name="L6_1flagOrizzontale" type="xs:boolean" minOccurs="0"/>
          <xs:element name="L6_1flagCanaliAria" type="xs:boolean" minOccurs="0"/>
          <xs:element name="L6_1DescrAltro" type="xs:string" minOccurs="0"/>
          <xs:element name="L6_2flagCoibentSI" type="xs:boolean" minOccurs="0"/>
          <xs:element name="L6_2note" type="xs:string" minOccurs="0"/>
          <xs:element name="L6_3VasiEspansione" minOccurs="0" maxOccurs="unbounded">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="L6_3numVE" type="xs:integer" minOccurs="0"/>
                <xs:element name="rowVE" type="rowVE" minOccurs="0" maxOccurs="unbounded"/>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
          <xs:element name="L6_4PompeCircolazione" minOccurs="0" maxOccurs="unbounded">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="L6_4numPC" type="xs:integer" minOccurs="0"/>
                <xs:element name="rowPC" type="rowPC" minOccurs="0" maxOccurs="unbounded"/>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="scheda_7_emissione" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
                    gli elementi contenuti in emissione sono dei flag (anche multipli) e una descrizione nel caso di altro tipo
                    </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence>
          <xs:element name="L7_flagRadiatori" type="xs:boolean" minOccurs="0"/>
          <xs:element name="L7_flagTermoConvett" type="xs:boolean" minOccurs="0"/>
          <xs:element name="L7_flagVentilConvett" type="xs:boolean" minOccurs="0"/>
          <xs:element name="L7_flagPannelRadianti" type="xs:boolean" minOccurs="0"/>
          <xs:element name="L7_flagBocchette" type="xs:boolean" minOccurs="0"/>
          <xs:element name="L7_flagStrisce" type="xs:boolean" minOccurs="0"/>
          <xs:element name="L7_flagTravi" type="xs:boolean" minOccurs="0"/>
          <xs:element name="L7_flagAltro" type="xs:boolean" minOccurs="0"/>
          <xs:element name="L7_descrAltro" type="xs:string" minOccurs="0"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="scheda_8_sistema_accumulo" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
sistemi di accumulo se non incorporati nel gruppo termico. la scheda prevede la sostituzione del singolo gruppo di accumulo numerato progressivamente, mentre i dati sono riportati in rowAC
</xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence>
          <xs:element name="sistema_accumulo" maxOccurs="unbounded">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="L8_1numAC" type="xs:integer" minOccurs="0"/>
                <xs:element name="rowAC" type="rowAC" minOccurs="0" maxOccurs="unbounded"/>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="scheda_9_altriComponenti" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
altri componenti dell'impianto (es. torri evaporative TE, raffreddatori di liquido RV, scambiatore di calore intermedi SC, circuiti interrati a condensazione CI, unità di trattamento aria UT, recuperatori di calore RC), è prevista la sostituzione e per ognuno va indicato il numero progressivo che li identifica all'interno dell'impianto
</xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:choice maxOccurs="unbounded">
          <xs:element name="L9_1_AltriComponentiTE">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="L9_1numTE" type="xs:integer"/>
                <xs:element name="rowTE" type="rowTE" maxOccurs="unbounded"/>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
          <xs:element name="L9_2_AltriComponentiRV">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="L9_2numRV" type="xs:integer"/>
                <xs:element name="rowRV" type="rowRV" maxOccurs="unbounded"/>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
          <xs:element name="L9_3_AltriComponentiSC">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="L9_3numSCcal" type="xs:integer"/>
                <xs:element name="rowSCcal" type="rowSCcal" maxOccurs="unbounded"/>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
          <xs:element name="L9_4_AltriComponentiCI">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="L9_4numCI" type="xs:integer"/>
                <xs:element name="rowCI" type="rowCI" maxOccurs="unbounded"/>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
          <xs:element name="L9_5_AltriComponentiUT">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="L9_5numUT" type="xs:integer"/>
                <xs:element name="rowUT" type="rowUT" maxOccurs="unbounded"/>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
          <xs:element name="L9_6_AltriComponentiRC">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="L9_6numRCcal" type="xs:integer"/>
                <xs:element name="rowRCcal" type="rowRCcal" maxOccurs="unbounded"/>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
        </xs:choice>
      </xs:complexType>
    </xs:element>
    <xs:element name="scheda_10_ventilazione" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
                   altri componenti dell'impianto, tipo impianto di ventilazione meccanica controllata, è prevista la sostituzione
                    </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence>
          <xs:element name="L10_1VentilazMeccanicaVM" maxOccurs="unbounded">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="L10_1numVM" type="xs:integer" minOccurs="0"/>
                <xs:element name="rowVM" type="rowVM" minOccurs="0" maxOccurs="unbounded"/>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="scheda_11_1_VerificaGruppiTermici" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
                    risultati della verifica effettuata dall'installatore e delle verifiche periodiche successive effettuate dal manutentore su gruppi termici/caldaie
                     </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence>
          <xs:element name="VerificaGruppiTermici" maxOccurs="unbounded">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="L11_1numGT" type="xs:integer" minOccurs="0"/>
                <xs:element name="L11_1flagNormaUNI10389" type="xs:boolean" minOccurs="0"/>
                <xs:element name="L11_1altraNorma" type="xs:string" minOccurs="0"/>
                <xs:element name="row11_1" type="row11_1" minOccurs="0" maxOccurs="unbounded"/>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="scheda_11_2_VerificaGruppiFrigo" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
                        risultati della verifica effettuata dall'installatore e delle verifiche periodiche successive effettuate dal manutentore su gruppi frigoriferi/pompe di calore
</xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence>
          <xs:element name="VerificaGruppiFrigo" maxOccurs="unbounded">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="L11_2numGF" type="xs:integer" minOccurs="0"/>
                <xs:element name="row11_2" type="row11_2" minOccurs="0" maxOccurs="unbounded"/>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="scheda_11_3_VerificaScambiatoreCalore" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
                   risultati della verifica effettuata dall'installatore e delle verifiche periodiche successive effettuate dal manutentore su scambiatori di calore della sottostazione di teleriscaldamento/teleraffreddamento
                    </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence>
          <xs:element name="VerificaScambiatoreCalore" maxOccurs="unbounded">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="L11_3numSC" type="xs:integer" minOccurs="0"/>
                <xs:element name="row11_3" type="row11_3" minOccurs="0" maxOccurs="unbounded"/>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="scheda_11_4_VerificaCogeneratoriTrigeneratori" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
                    risultati della verifica effettuata dall'installatore e delle verifiche periodiche successive effettuate dal manutentore su cogeneratori/trigeneratori
                                        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence>
          <xs:element name="VerificaCogeneratoriTrigeneratori" maxOccurs="unbounded">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="L11_4numCG" type="xs:integer" minOccurs="0"/>
                <xs:element name="row11_4" type="row11_4" minOccurs="0" maxOccurs="unbounded"/>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="scheda_12_interventi_CEE" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
interventi di controllo efficienza energetica, la ditta incaricata è identificata a mezzo di PIVA e n°REA (che sostituisce il codice CCIAA)
</xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence>
          <xs:element name="interventi_CEE" maxOccurs="unbounded">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="L12ditta" type="persona_giuridica" minOccurs="0"/>
                <xs:element name="L12data_rapporto" type="data" minOccurs="0"/>
                <xs:element name="L12flagRaccomandazioni" type="xs:boolean" minOccurs="0"/>
                <xs:element name="L12flagPrescrizioni" type="xs:boolean" minOccurs="0"/>
                <xs:element name="L12REA" type="REA" minOccurs="0"/>
                <xs:element name="L12tipo_RCEE" type="RCEE" minOccurs="0"/>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="scheda_13_ispezione_autorita" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
interventi di controllo efficienza energetica, la ditta incaricata è identificata a mezzo di PIVA e n°REA (che sostituisce il codice CCIAA
in caso ci siano raccomandazioni e/o prescrizioni il rispettivo attributo assume valore "true"
</xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence>
          <xs:element name="ispezione_autorita" type="ispezione" minOccurs="0" maxOccurs="unbounded"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="scheda_14_consumi_esercizi" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
interventi di controllo efficienza energetica, la ditta incaricata è identificata a mezzo di PIVA e n°REA (che sostituisce il codice CCIAA
in caso ci siano raccomandazioni e/o prescrizioni il rispettivo attributo assume valore "true"
</xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence>
          <xs:element name="consumi_esercizi" type="consumi_esercizi" minOccurs="0" maxOccurs="unbounded"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element impianto/scheda_1_dati_identificativi_impianto
diagram libretto_diagrams/libretto_p76.png
namespace libretto
properties
content complex
children L1_codice_impianto L1_2datiImmobile L1_2volLordoRisc L1_2volLordoRaffr L1_3flagProdACS L1_3potUtileACS L1_3flagClimaInv L1_3potUtileClimaInv L1_3flagClimaEst L1_3potUtileClimaEst L1_3descrAltro L1_4flagH2O L1_4flagAria L1_4descrAltro L1_5flagGeneratCombu L1_5flagPompaCal L1_5flagMaccFrigo L1_5flagTelerisc L1_5flagTeleraffr L1_5flagCogener L1_5descrAltro L1_5flagPannelliSol L1_5superfLordaTot L1_5flagAltraIntegraz L1_5potUtile L1_5descrAltrIntegraz L1_5flagClimaInv L1_5flagClimaEst L1_5flagProdACS L1_5descrAltroPer L1_6responsabile
annotation
documentation

Nel libretto ministeriale il flag Altro al punto 1.3 è implicito se valorizzato il campo L1_3descrAltro. Analogamente vale per i flag Altro ai punti 1.4 e 1.5 con i campi L1_4flagAltro e L1_5descrAltro. I dati identificativi relativi all'unità immobiliare sono stati spostati all'interno dell'elemento L1_2datiImmobile.
source <xs:element name="scheda_1_dati_identificativi_impianto">
  <xs:annotation>
    <xs:documentation>
Nel libretto ministeriale il flag Altro al punto 1.3 è implicito se valorizzato il campo L1_3descrAltro. Analogamente vale per i flag Altro ai punti 1.4 e 1.5 con i campi L1_4flagAltro e L1_5descrAltro. I dati identificativi relativi all'unità immobiliare sono stati spostati all'interno dell'elemento L1_2datiImmobile.
</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="L1_codice_impianto" type="xs:string">
        <xs:annotation>
          <xs:documentation>In assenza del codice impianto, inserire il codice del libretto
  (se esiste un solo impianto).</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="L1_2datiImmobile" type="datiImmobile"/>
      <xs:element name="L1_2volLordoRisc" type="decimale1" minOccurs="0"/>
      <xs:element name="L1_2volLordoRaffr" type="decimale1" minOccurs="0"/>
      <xs:element name="L1_3flagProdACS" type="xs:boolean" minOccurs="0"/>
      <xs:element name="L1_3potUtileACS" type="decimale1" minOccurs="0"/>
      <xs:element name="L1_3flagClimaInv" type="xs:boolean" minOccurs="0"/>
      <xs:element name="L1_3potUtileClimaInv" type="decimale1" minOccurs="0"/>
      <xs:element name="L1_3flagClimaEst" type="xs:boolean" minOccurs="0"/>
      <xs:element name="L1_3potUtileClimaEst" type="decimale1" minOccurs="0"/>
      <xs:element name="L1_3descrAltro" type="xs:string" minOccurs="0"/>
      <xs:element name="L1_4flagH2O" type="xs:boolean" minOccurs="0"/>
      <xs:element name="L1_4flagAria" type="xs:boolean" minOccurs="0"/>
      <xs:element name="L1_4descrAltro" type="xs:string" minOccurs="0"/>
      <xs:element name="L1_5flagGeneratCombu" type="xs:boolean" minOccurs="0"/>
      <xs:element name="L1_5flagPompaCal" type="xs:boolean" minOccurs="0"/>
      <xs:element name="L1_5flagMaccFrigo" type="xs:boolean" minOccurs="0"/>
      <xs:element name="L1_5flagTelerisc" type="xs:boolean" minOccurs="0"/>
      <xs:element name="L1_5flagTeleraffr" type="xs:boolean" minOccurs="0"/>
      <xs:element name="L1_5flagCogener" type="xs:boolean" minOccurs="0"/>
      <xs:element name="L1_5descrAltro" type="xs:string" minOccurs="0"/>
      <xs:element name="L1_5flagPannelliSol" type="xs:boolean" minOccurs="0"/>
      <xs:element name="L1_5superfLordaTot" type="decimale1" minOccurs="0"/>
      <xs:element name="L1_5flagAltraIntegraz" type="xs:boolean" minOccurs="0"/>
      <xs:element name="L1_5potUtile" type="decimale1" minOccurs="0"/>
      <xs:element name="L1_5descrAltrIntegraz" type="xs:string" minOccurs="0"/>
      <xs:element name="L1_5flagClimaInv" type="xs:boolean" minOccurs="0"/>
      <xs:element name="L1_5flagClimaEst" type="xs:boolean" minOccurs="0"/>
      <xs:element name="L1_5flagProdACS" type="xs:boolean" minOccurs="0"/>
      <xs:element name="L1_5descrAltroPer" type="xs:string" minOccurs="0"/>
      <xs:element name="L1_6responsabile" type="persona_generica" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element impianto/scheda_1_dati_identificativi_impianto/L1_codice_impianto
diagram libretto_diagrams/libretto_p77.png
namespace libretto
type xs:string
properties
content simple
annotation
documentation
In assenza del codice impianto, inserire il codice del libretto
  (se esiste un solo impianto).
source <xs:element name="L1_codice_impianto" type="xs:string">
  <xs:annotation>
    <xs:documentation>In assenza del codice impianto, inserire il codice del libretto
  (se esiste un solo impianto).</xs:documentation>
  </xs:annotation>
</xs:element>

element impianto/scheda_1_dati_identificativi_impianto/L1_2datiImmobile
diagram libretto_diagrams/libretto_p78.png
namespace libretto
type datiImmobile
properties
content complex
children L1_2indirizzo L1_2civico L1_2nome_comune L1_2nome_provincia L1_2flagSingolaUnitaImmobiliare datiCatastali
source <xs:element name="L1_2datiImmobile" type="datiImmobile"/>

element impianto/scheda_1_dati_identificativi_impianto/L1_2volLordoRisc
diagram libretto_diagrams/libretto_p79.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L1_2volLordoRisc" type="decimale1" minOccurs="0"/>

element impianto/scheda_1_dati_identificativi_impianto/L1_2volLordoRaffr
diagram libretto_diagrams/libretto_p80.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L1_2volLordoRaffr" type="decimale1" minOccurs="0"/>

element impianto/scheda_1_dati_identificativi_impianto/L1_3flagProdACS
diagram libretto_diagrams/libretto_p81.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L1_3flagProdACS" type="xs:boolean" minOccurs="0"/>

element impianto/scheda_1_dati_identificativi_impianto/L1_3potUtileACS
diagram libretto_diagrams/libretto_p82.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L1_3potUtileACS" type="decimale1" minOccurs="0"/>

element impianto/scheda_1_dati_identificativi_impianto/L1_3flagClimaInv
diagram libretto_diagrams/libretto_p83.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L1_3flagClimaInv" type="xs:boolean" minOccurs="0"/>

element impianto/scheda_1_dati_identificativi_impianto/L1_3potUtileClimaInv
diagram libretto_diagrams/libretto_p84.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L1_3potUtileClimaInv" type="decimale1" minOccurs="0"/>

element impianto/scheda_1_dati_identificativi_impianto/L1_3flagClimaEst
diagram libretto_diagrams/libretto_p85.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L1_3flagClimaEst" type="xs:boolean" minOccurs="0"/>

element impianto/scheda_1_dati_identificativi_impianto/L1_3potUtileClimaEst
diagram libretto_diagrams/libretto_p86.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L1_3potUtileClimaEst" type="decimale1" minOccurs="0"/>

element impianto/scheda_1_dati_identificativi_impianto/L1_3descrAltro
diagram libretto_diagrams/libretto_p87.png
namespace libretto
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L1_3descrAltro" type="xs:string" minOccurs="0"/>

element impianto/scheda_1_dati_identificativi_impianto/L1_4flagH2O
diagram libretto_diagrams/libretto_p88.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L1_4flagH2O" type="xs:boolean" minOccurs="0"/>

element impianto/scheda_1_dati_identificativi_impianto/L1_4flagAria
diagram libretto_diagrams/libretto_p89.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L1_4flagAria" type="xs:boolean" minOccurs="0"/>

element impianto/scheda_1_dati_identificativi_impianto/L1_4descrAltro
diagram libretto_diagrams/libretto_p90.png
namespace libretto
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L1_4descrAltro" type="xs:string" minOccurs="0"/>

element impianto/scheda_1_dati_identificativi_impianto/L1_5flagGeneratCombu
diagram libretto_diagrams/libretto_p91.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L1_5flagGeneratCombu" type="xs:boolean" minOccurs="0"/>

element impianto/scheda_1_dati_identificativi_impianto/L1_5flagPompaCal
diagram libretto_diagrams/libretto_p92.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L1_5flagPompaCal" type="xs:boolean" minOccurs="0"/>

element impianto/scheda_1_dati_identificativi_impianto/L1_5flagMaccFrigo
diagram libretto_diagrams/libretto_p93.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L1_5flagMaccFrigo" type="xs:boolean" minOccurs="0"/>

element impianto/scheda_1_dati_identificativi_impianto/L1_5flagTelerisc
diagram libretto_diagrams/libretto_p94.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L1_5flagTelerisc" type="xs:boolean" minOccurs="0"/>

element impianto/scheda_1_dati_identificativi_impianto/L1_5flagTeleraffr
diagram libretto_diagrams/libretto_p95.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L1_5flagTeleraffr" type="xs:boolean" minOccurs="0"/>

element impianto/scheda_1_dati_identificativi_impianto/L1_5flagCogener
diagram libretto_diagrams/libretto_p96.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L1_5flagCogener" type="xs:boolean" minOccurs="0"/>

element impianto/scheda_1_dati_identificativi_impianto/L1_5descrAltro
diagram libretto_diagrams/libretto_p97.png
namespace libretto
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L1_5descrAltro" type="xs:string" minOccurs="0"/>

element impianto/scheda_1_dati_identificativi_impianto/L1_5flagPannelliSol
diagram libretto_diagrams/libretto_p98.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L1_5flagPannelliSol" type="xs:boolean" minOccurs="0"/>

element impianto/scheda_1_dati_identificativi_impianto/L1_5superfLordaTot
diagram libretto_diagrams/libretto_p99.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L1_5superfLordaTot" type="decimale1" minOccurs="0"/>

element impianto/scheda_1_dati_identificativi_impianto/L1_5flagAltraIntegraz
diagram libretto_diagrams/libretto_p100.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L1_5flagAltraIntegraz" type="xs:boolean" minOccurs="0"/>

element impianto/scheda_1_dati_identificativi_impianto/L1_5potUtile
diagram libretto_diagrams/libretto_p101.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L1_5potUtile" type="decimale1" minOccurs="0"/>

element impianto/scheda_1_dati_identificativi_impianto/L1_5descrAltrIntegraz
diagram libretto_diagrams/libretto_p102.png
namespace libretto
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L1_5descrAltrIntegraz" type="xs:string" minOccurs="0"/>

element impianto/scheda_1_dati_identificativi_impianto/L1_5flagClimaInv
diagram libretto_diagrams/libretto_p103.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L1_5flagClimaInv" type="xs:boolean" minOccurs="0"/>

element impianto/scheda_1_dati_identificativi_impianto/L1_5flagClimaEst
diagram libretto_diagrams/libretto_p104.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L1_5flagClimaEst" type="xs:boolean" minOccurs="0"/>

element impianto/scheda_1_dati_identificativi_impianto/L1_5flagProdACS
diagram libretto_diagrams/libretto_p105.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L1_5flagProdACS" type="xs:boolean" minOccurs="0"/>

element impianto/scheda_1_dati_identificativi_impianto/L1_5descrAltroPer
diagram libretto_diagrams/libretto_p106.png
namespace libretto
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L1_5descrAltroPer" type="xs:string" minOccurs="0"/>

element impianto/scheda_1_dati_identificativi_impianto/L1_6responsabile
diagram libretto_diagrams/libretto_p107.png
namespace libretto
type persona_generica
properties
minOcc 0
maxOcc 1
content complex
children persona_fisica persona_giuridica
source <xs:element name="L1_6responsabile" type="persona_generica" minOccurs="0"/>

element impianto/scheda_2_trattamento_acqua
diagram libretto_diagrams/libretto_p108.png
namespace libretto
properties
minOcc 0
maxOcc 1
content complex
children L2_1contenutoH2OimpClima L2_2durezzaTotaleH2O L2_3sez_tratt_H2O L2_3sez_tratt_H2O_gelo L2_4sez_tratt_H2O_ACS L2_5sez_tratt_H2O_climaEst
annotation
documentation

   la scheda 2 trattamento acqua è composta da 5 punti, riguardanti rispettivamente:
   il contenuto dell'acqua dell'impianto di climatizzazione in m3
   la durezza in gradi francesi
   il trattamento dell'acqua Rif.UNI 8065
   eventuale protezione del gelo
   trattamento ACS
   trattamento impianto climatizzazione estivo
source <xs:element name="scheda_2_trattamento_acqua" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
   la scheda 2 trattamento acqua è composta da 5 punti, riguardanti rispettivamente:
   il contenuto dell'acqua dell'impianto di climatizzazione in m3
   la durezza in gradi francesi
   il trattamento dell'acqua Rif.UNI 8065
   eventuale protezione del gelo
   trattamento ACS
   trattamento impianto climatizzazione estivo
</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="L2_1contenutoH2OimpClima" type="decimale1"/>
      <xs:element name="L2_2durezzaTotaleH2O" type="decimale1"/>
      <xs:element name="L2_3sez_tratt_H2O" type="tratt_H2O" minOccurs="0"/>
      <xs:element name="L2_3sez_tratt_H2O_gelo" type="tratt_H2O_gelo" minOccurs="0"/>
      <xs:element name="L2_4sez_tratt_H2O_ACS" type="tratt_H2O_ACS" minOccurs="0"/>
      <xs:element name="L2_5sez_tratt_H2O_climaEst" type="tratt_H2O_climaEst" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element impianto/scheda_2_trattamento_acqua/L2_1contenutoH2OimpClima
diagram libretto_diagrams/libretto_p109.png
namespace libretto
type decimale1
properties
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L2_1contenutoH2OimpClima" type="decimale1"/>

element impianto/scheda_2_trattamento_acqua/L2_2durezzaTotaleH2O
diagram libretto_diagrams/libretto_p110.png
namespace libretto
type decimale1
properties
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L2_2durezzaTotaleH2O" type="decimale1"/>

element impianto/scheda_2_trattamento_acqua/L2_3sez_tratt_H2O
diagram libretto_diagrams/libretto_p111.png
namespace libretto
type tratt_H2O
properties
minOcc 0
maxOcc 1
content complex
children L2_3flagTrattamentoAssente L2_3altro_trattH2O
source <xs:element name="L2_3sez_tratt_H2O" type="tratt_H2O" minOccurs="0"/>

element impianto/scheda_2_trattamento_acqua/L2_3sez_tratt_H2O_gelo
diagram libretto_diagrams/libretto_p112.png
namespace libretto
type tratt_H2O_gelo
properties
minOcc 0
maxOcc 1
content complex
children L2_3flagAssenteProtGelo L2_3flagGlicoleEtilenico L2_3flagGlicolePropilenico
source <xs:element name="L2_3sez_tratt_H2O_gelo" type="tratt_H2O_gelo" minOccurs="0"/>

element impianto/scheda_2_trattamento_acqua/L2_4sez_tratt_H2O_ACS
diagram libretto_diagrams/libretto_p113.png
namespace libretto
type tratt_H2O_ACS
properties
minOcc 0
maxOcc 1
content complex
children L2_4flagAssenteACS altro_tratt_ACS
source <xs:element name="L2_4sez_tratt_H2O_ACS" type="tratt_H2O_ACS" minOccurs="0"/>

element impianto/scheda_2_trattamento_acqua/L2_5sez_tratt_H2O_climaEst
diagram libretto_diagrams/libretto_p114.png
namespace libretto
type tratt_H2O_climaEst
properties
minOcc 0
maxOcc 1
content complex
children L2_5flagAssente L2_5altro_tratt_H2O_climaEst
source <xs:element name="L2_5sez_tratt_H2O_climaEst" type="tratt_H2O_climaEst" minOccurs="0"/>

element impianto/scheda_3_terzo_responsabile
diagram libretto_diagrams/libretto_p115.png
namespace libretto
properties
minOcc 0
maxOcc 1
content complex
children terzo_responsabile
annotation
documentation

ogni nomina di un terzo responsabile ha sempre almeno una data di inizio (e talvolta la fine non è definita), nonchè l'identificativo (attraverso i tag persona_generica e persona_giuridica, ci sono il codice fiscale e/o la PIVA) delle figure nominate e nominante (e il ruolo di proprietario o amministratore che esegue la nomina), sono possibili infinite nomine, il campo CCIAA è sostituito dal campo L3_nominato_REA.
source <xs:element name="scheda_3_terzo_responsabile" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
ogni nomina di un terzo responsabile ha sempre almeno una data di inizio (e talvolta la fine non è definita), nonchè l'identificativo (attraverso i tag persona_generica e persona_giuridica, ci sono il codice fiscale e/o la PIVA) delle figure nominate e nominante (e il ruolo di proprietario o amministratore che esegue la nomina), sono possibili infinite nomine, il campo CCIAA è sostituito dal campo L3_nominato_REA.
</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="terzo_responsabile" maxOccurs="unbounded">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="L3_nominante" type="persona_generica" minOccurs="0"/>
            <xs:element name="L3_nominato" type="persona_giuridica" minOccurs="0"/>
            <xs:element name="L3_nominato_REA" type="REA" minOccurs="0"/>
            <xs:element name="L3_data_inizio_nomina" type="data" minOccurs="0"/>
            <xs:element name="L3_data_fine_nomina" type="data" minOccurs="0"/>
            <xs:element name="L3_ruolo_nominante" type="ruolo_nominante" minOccurs="0"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element impianto/scheda_3_terzo_responsabile/terzo_responsabile
diagram libretto_diagrams/libretto_p116.png
namespace libretto
properties
minOcc 1
maxOcc unbounded
content complex
children L3_nominante L3_nominato L3_nominato_REA L3_data_inizio_nomina L3_data_fine_nomina L3_ruolo_nominante
source <xs:element name="terzo_responsabile" maxOccurs="unbounded">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="L3_nominante" type="persona_generica" minOccurs="0"/>
      <xs:element name="L3_nominato" type="persona_giuridica" minOccurs="0"/>
      <xs:element name="L3_nominato_REA" type="REA" minOccurs="0"/>
      <xs:element name="L3_data_inizio_nomina" type="data" minOccurs="0"/>
      <xs:element name="L3_data_fine_nomina" type="data" minOccurs="0"/>
      <xs:element name="L3_ruolo_nominante" type="ruolo_nominante" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element impianto/scheda_3_terzo_responsabile/terzo_responsabile/L3_nominante
diagram libretto_diagrams/libretto_p117.png
namespace libretto
type persona_generica
properties
minOcc 0
maxOcc 1
content complex
children persona_fisica persona_giuridica
source <xs:element name="L3_nominante" type="persona_generica" minOccurs="0"/>

element impianto/scheda_3_terzo_responsabile/terzo_responsabile/L3_nominato
diagram libretto_diagrams/libretto_p118.png
namespace libretto
type persona_giuridica
properties
minOcc 0
maxOcc 1
content complex
children ragione_sociale partita_IVA
source <xs:element name="L3_nominato" type="persona_giuridica" minOccurs="0"/>

element impianto/scheda_3_terzo_responsabile/terzo_responsabile/L3_nominato_REA
diagram libretto_diagrams/libretto_p119.png
namespace libretto
type REA
properties
minOcc 0
maxOcc 1
content complex
children Sigla_Localita_Impresa numero_REA
source <xs:element name="L3_nominato_REA" type="REA" minOccurs="0"/>

element impianto/scheda_3_terzo_responsabile/terzo_responsabile/L3_data_inizio_nomina
diagram libretto_diagrams/libretto_p120.png
namespace libretto
type data
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1900-01-01
maxInclusive 2100-12-31
source <xs:element name="L3_data_inizio_nomina" type="data" minOccurs="0"/>

element impianto/scheda_3_terzo_responsabile/terzo_responsabile/L3_data_fine_nomina
diagram libretto_diagrams/libretto_p121.png
namespace libretto
type data
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1900-01-01
maxInclusive 2100-12-31
source <xs:element name="L3_data_fine_nomina" type="data" minOccurs="0"/>

element impianto/scheda_3_terzo_responsabile/terzo_responsabile/L3_ruolo_nominante
diagram libretto_diagrams/libretto_p122.png
namespace libretto
type ruolo_nominante
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1
maxInclusive 3
source <xs:element name="L3_ruolo_nominante" type="ruolo_nominante" minOccurs="0"/>

element impianto/scheda_4_generatori
diagram libretto_diagrams/libretto_p123.png
namespace libretto
properties
content complex
children gruppotermico_caldaie gruppofrigo scambiatore cogeneratore solaretermico altrigeneratori
annotation
documentation

I singoli generatori vanno inseriti come nodo interno a questo elemento.
Ci possono essere N generatori, ognuno diviso per tipologia:
gruppotermico_caldaie GT
gruppofrigo           GF
scambiatore           SC
cogeneratore          CG
solaretermico         ST
altrigeneratori       AG

ognuno di questi può essere sostituito nelle relative sezioni (es. sezGT, sezGF...) senza però che cambi il numero del gruppo (es. GT1, GT2,...).
nel caso ci siano bruciatori BR o scambiatori di calore SC collegati al gruppo termico, la sezione relativa ai loro dati e al numero progressivo che li identifica si trova nel rowGT cui sono collegati
source <xs:element name="scheda_4_generatori">
  <xs:annotation>
    <xs:documentation>
I singoli generatori vanno inseriti come nodo interno a questo elemento.
Ci possono essere N generatori, ognuno diviso per tipologia:
gruppotermico_caldaie GT
gruppofrigo           GF
scambiatore           SC
cogeneratore          CG
solaretermico         ST
altrigeneratori       AG

ognuno di questi può essere sostituito nelle relative sezioni (es. sezGT, sezGF...) senza però che cambi il numero del gruppo (es. GT1, GT2,...).
nel caso ci siano bruciatori BR o scambiatori di calore SC collegati al gruppo termico, la sezione relativa ai loro dati e al numero progressivo che li identifica si trova nel rowGT cui sono collegati
</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:choice maxOccurs="unbounded">
      <xs:element name="gruppotermico_caldaie">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="L4_1numGT" type="xs:integer"/>
            <xs:element name="rowGT" type="rowGT" maxOccurs="unbounded"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="gruppofrigo">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="L4_4numGF" type="xs:integer"/>
            <xs:element name="rowGF" type="rowGF" maxOccurs="unbounded"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="scambiatore">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="L4_5numSC" type="xs:integer"/>
            <xs:element name="rowSC" type="rowSC" maxOccurs="unbounded"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="cogeneratore">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="L4_6numCG" type="xs:integer"/>
            <xs:element name="rowCG" type="rowCG" maxOccurs="unbounded"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="solaretermico">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="L4_7numCS" type="xs:integer"/>
            <xs:element name="rowCS" type="rowCS" maxOccurs="unbounded"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="altrigeneratori">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="L4_8numAG" type="xs:integer"/>
            <xs:element name="rowAG" type="rowAG" maxOccurs="unbounded"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:choice>
  </xs:complexType>
</xs:element>

element impianto/scheda_4_generatori/gruppotermico_caldaie
diagram libretto_diagrams/libretto_p124.png
namespace libretto
properties
content complex
children L4_1numGT rowGT
source <xs:element name="gruppotermico_caldaie">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="L4_1numGT" type="xs:integer"/>
      <xs:element name="rowGT" type="rowGT" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element impianto/scheda_4_generatori/gruppotermico_caldaie/L4_1numGT
diagram libretto_diagrams/libretto_p125.png
namespace libretto
type xs:integer
properties
content simple
source <xs:element name="L4_1numGT" type="xs:integer"/>

element impianto/scheda_4_generatori/gruppotermico_caldaie/rowGT
diagram libretto_diagrams/libretto_p126.png
namespace libretto
type rowGT
properties
minOcc 1
maxOcc unbounded
content complex
children L4_1dataInstallazione L4_1dataDismissione L4_1fabbricante L4_1modello L4_1matricola L4_1combustibile L4_1fluidoTermoVett L4_1potTermUtileMax L4_1rendimTermUtileMax L4_1attributiGT accessori_gruppotermico_caldaie
source <xs:element name="rowGT" type="rowGT" maxOccurs="unbounded"/>

element impianto/scheda_4_generatori/gruppofrigo
diagram libretto_diagrams/libretto_p127.png
namespace libretto
properties
content complex
children L4_4numGF rowGF
source <xs:element name="gruppofrigo">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="L4_4numGF" type="xs:integer"/>
      <xs:element name="rowGF" type="rowGF" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element impianto/scheda_4_generatori/gruppofrigo/L4_4numGF
diagram libretto_diagrams/libretto_p128.png
namespace libretto
type xs:integer
properties
content simple
source <xs:element name="L4_4numGF" type="xs:integer"/>

element impianto/scheda_4_generatori/gruppofrigo/rowGF
diagram libretto_diagrams/libretto_p129.png
namespace libretto
type rowGF
properties
minOcc 1
maxOcc unbounded
content complex
children L4_4dataInstallazione L4_4dataDismissione L4_4fabbricante L4_4modello L4_4matricola L4_4flagSorgEsterna L4_4fluidoFrigo L4_4flagFluidoUtenza L4_4tipoScambioFrigo L4_4tipoLiquidoGassoso L4_4numeroCircuiti sezRaffreddamentoFrigo sezRiscaldamentoFrigo
source <xs:element name="rowGF" type="rowGF" maxOccurs="unbounded"/>

element impianto/scheda_4_generatori/scambiatore
diagram libretto_diagrams/libretto_p130.png
namespace libretto
properties
content complex
children L4_5numSC rowSC
source <xs:element name="scambiatore">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="L4_5numSC" type="xs:integer"/>
      <xs:element name="rowSC" type="rowSC" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element impianto/scheda_4_generatori/scambiatore/L4_5numSC
diagram libretto_diagrams/libretto_p131.png
namespace libretto
type xs:integer
properties
content simple
source <xs:element name="L4_5numSC" type="xs:integer"/>

element impianto/scheda_4_generatori/scambiatore/rowSC
diagram libretto_diagrams/libretto_p132.png
namespace libretto
type rowSC
properties
minOcc 1
maxOcc unbounded
content complex
children L4_5dataInstallazione L4_5dataDismissione L4_5fabbricante L4_5modello L4_5matricola L4_5potTermNomTot
source <xs:element name="rowSC" type="rowSC" maxOccurs="unbounded"/>

element impianto/scheda_4_generatori/cogeneratore
diagram libretto_diagrams/libretto_p133.png
namespace libretto
properties
content complex
children L4_6numCG rowCG
source <xs:element name="cogeneratore">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="L4_6numCG" type="xs:integer"/>
      <xs:element name="rowCG" type="rowCG" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element impianto/scheda_4_generatori/cogeneratore/L4_6numCG
diagram libretto_diagrams/libretto_p134.png
namespace libretto
type xs:integer
properties
content simple
source <xs:element name="L4_6numCG" type="xs:integer"/>

element impianto/scheda_4_generatori/cogeneratore/rowCG
diagram libretto_diagrams/libretto_p135.png
namespace libretto
type rowCG
properties
minOcc 1
maxOcc unbounded
content complex
children L4_6dataInstallazione L4_6dataDismissione L4_6fabbricante L4_6modello L4_6matricola L4_6tipologia L4_6combustibile L4_6potTermNom L4_6potElettrNom L4_6tempAcquaUscitaMIN L4_6tempAcquaUscitaMAX L4_6tempFumiValleMIN L4_6tempFumiValleMAX L4_6tempAcquaIngressoMIN L4_6tempAcquaIngressoMAX L4_6tempFumiMonteMIN L4_6tempFumiMonteMAX L4_6tempAcquaMotoreMIN L4_6tempAcquaMotoreMAX L4_6emissioniMonossidoMIN L4_6emissioniMonossidoMAX
source <xs:element name="rowCG" type="rowCG" maxOccurs="unbounded"/>

element impianto/scheda_4_generatori/solaretermico
diagram libretto_diagrams/libretto_p136.png
namespace libretto
properties
content complex
children L4_7numCS rowCS
source <xs:element name="solaretermico">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="L4_7numCS" type="xs:integer"/>
      <xs:element name="rowCS" type="rowCS" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element impianto/scheda_4_generatori/solaretermico/L4_7numCS
diagram libretto_diagrams/libretto_p137.png
namespace libretto
type xs:integer
properties
content simple
source <xs:element name="L4_7numCS" type="xs:integer"/>

element impianto/scheda_4_generatori/solaretermico/rowCS
diagram libretto_diagrams/libretto_p138.png
namespace libretto
type rowCS
properties
minOcc 1
maxOcc unbounded
content complex
children L4_7dataInstallazione L4_7dataDismissione L4_7fabbricante L4_7numeroCollettori L4_7superfTotApertura
source <xs:element name="rowCS" type="rowCS" maxOccurs="unbounded"/>

element impianto/scheda_4_generatori/altrigeneratori
diagram libretto_diagrams/libretto_p139.png
namespace libretto
properties
content complex
children L4_8numAG rowAG
source <xs:element name="altrigeneratori">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="L4_8numAG" type="xs:integer"/>
      <xs:element name="rowAG" type="rowAG" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element impianto/scheda_4_generatori/altrigeneratori/L4_8numAG
diagram libretto_diagrams/libretto_p140.png
namespace libretto
type xs:integer
properties
content simple
source <xs:element name="L4_8numAG" type="xs:integer"/>

element impianto/scheda_4_generatori/altrigeneratori/rowAG
diagram libretto_diagrams/libretto_p141.png
namespace libretto
type rowAG
properties
minOcc 1
maxOcc unbounded
content complex
children L4_8dataInstallazione L4_8dataDismissione L4_8fabbricante L4_8modello L4_8matricola L4_8tipologia L4_8potUtile
source <xs:element name="rowAG" type="rowAG" maxOccurs="unbounded"/>

element impianto/scheda_5_sistemi_regolazione_contabilizzazione
diagram libretto_diagrams/libretto_p142.png
namespace libretto
properties
minOcc 0
maxOcc 1
content complex
children L5_1flagRegolazioneON L5_1flagSistemaRegolazioneCurvaIntegrata L5_1flagSistemaRegolazioneCurvaIndipendente L5_1valvoleRegolazione L5_1flagRegMultiGrad L5_1flagRegInverter L5_1descrAltriSistRegPrim L5_2 L5_3 L5_4
annotation
documentation

Nei sistemi di regolazione e contabilizzazione si prevede che un singolo sistema di regolazione indipendente o una singola valvola possano essere sostituiti, per cui viene attribuito un numero progressivo al sistema (SR o VR) automaticamente. La scheda 5 è stata suddivisa nei sottoparagrafi, ognuno dei quali è opzionali.
source <xs:element name="scheda_5_sistemi_regolazione_contabilizzazione" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
Nei sistemi di regolazione e contabilizzazione si prevede che un singolo sistema di regolazione indipendente o una singola valvola possano essere sostituiti, per cui viene attribuito un numero progressivo al sistema (SR o VR) automaticamente. La scheda 5 è stata suddivisa nei sottoparagrafi, ognuno dei quali è opzionali.
</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:choice>
        <xs:element name="L5_1flagRegolazioneON" type="xs:boolean" fixed="true" minOccurs="0"/>
        <xs:element name="L5_1flagSistemaRegolazioneCurvaIntegrata" type="xs:boolean" fixed="true" minOccurs="0"/>
        <xs:element name="L5_1flagSistemaRegolazioneCurvaIndipendente" type="rowSR" minOccurs="0" maxOccurs="unbounded"/>
      </xs:choice>
      <xs:element name="L5_1valvoleRegolazione" type="rowVR" minOccurs="0" maxOccurs="unbounded"/>
      <xs:element name="L5_1flagRegMultiGrad" type="xs:boolean" minOccurs="0"/>
      <xs:element name="L5_1flagRegInverter" type="xs:boolean" minOccurs="0"/>
      <xs:element name="L5_1descrAltriSistRegPrim" type="xs:string" minOccurs="0"/>
      <xs:element name="L5_2" minOccurs="0">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="L5_2termostato" type="tipoTermostato" minOccurs="0"/>
            <xs:element name="L5_2flagValvTermostSI" type="xs:boolean" minOccurs="0"/>
            <xs:element name="L5_2flagValvDueVieSI" type="xs:boolean" minOccurs="0"/>
            <xs:element name="L5_2flagValvTreVieSI" type="xs:boolean" minOccurs="0"/>
            <xs:element name="L5_2note" type="xs:string" minOccurs="0"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="L5_3" minOccurs="0">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="L5_3flagTeleLetturaSI" type="xs:boolean" minOccurs="0"/>
            <xs:element name="L5_3flagTeleGestioneSI" type="xs:boolean" minOccurs="0"/>
            <xs:element name="L5_3descrSistemaIniziale" type="xs:string" minOccurs="0"/>
            <xs:element name="L5_3SistemaSostituto" minOccurs="0" maxOccurs="unbounded">
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="L5_3dataSostituzione" type="data" minOccurs="0"/>
                  <xs:element name="L5_3descrSistemaSost" type="xs:string" minOccurs="0"/>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="L5_4" minOccurs="0">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="L5_4ContabilizzazioneUISI" minOccurs="0">
              <xs:annotation>
                <xs:documentation>
   Il flag "L5_4ContabilizzazioneUISI" segue la presenza degli attributi alternativi tra loro: L5_4flagRiscald, L5_4flagRaffresc, L5_4flagACS. Il sistema di contabilizzazione può essere sostituito e in tal caso compare L5_4SistemaSostituto.
</xs:documentation>
              </xs:annotation>
              <xs:complexType>
                <xs:choice minOccurs="0" maxOccurs="3">
                  <xs:element name="L5_4flagRiscald" type="xs:boolean" fixed="true" minOccurs="0"/>
                  <xs:element name="L5_4flagRaffresc" type="xs:boolean" fixed="true" minOccurs="0"/>
                  <xs:element name="L5_4flagACS" type="xs:boolean" fixed="true" minOccurs="0"/>
                </xs:choice>
              </xs:complexType>
            </xs:element>
            <xs:element name="L5_4flagSistemaDiretto" type="xs:boolean" minOccurs="0"/>
            <xs:element name="L5_4descrSistema" type="xs:string" minOccurs="0"/>
            <xs:element name="L5_4SistemaSostituto" minOccurs="0" maxOccurs="unbounded">
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="L5_4dataSostituzione" type="data" minOccurs="0"/>
                  <xs:element name="L5_4descrSistemaSost" type="xs:string" minOccurs="0"/>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element impianto/scheda_5_sistemi_regolazione_contabilizzazione/L5_1flagRegolazioneON
diagram libretto_diagrams/libretto_p143.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
fixed true
source <xs:element name="L5_1flagRegolazioneON" type="xs:boolean" fixed="true" minOccurs="0"/>

element impianto/scheda_5_sistemi_regolazione_contabilizzazione/L5_1flagSistemaRegolazioneCurvaIntegrata
diagram libretto_diagrams/libretto_p144.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
fixed true
source <xs:element name="L5_1flagSistemaRegolazioneCurvaIntegrata" type="xs:boolean" fixed="true" minOccurs="0"/>

element impianto/scheda_5_sistemi_regolazione_contabilizzazione/L5_1flagSistemaRegolazioneCurvaIndipendente
diagram libretto_diagrams/libretto_p145.png
namespace libretto
type rowSR
properties
minOcc 0
maxOcc unbounded
content complex
children L5_1dataInstallazioneSR L5_1dataDismissioneSR L5_1fabbricanteSR L5_1modelloSR L5_1numPuntiReg L5_1numLivTemp
source <xs:element name="L5_1flagSistemaRegolazioneCurvaIndipendente" type="rowSR" minOccurs="0" maxOccurs="unbounded"/>

element impianto/scheda_5_sistemi_regolazione_contabilizzazione/L5_1valvoleRegolazione
diagram libretto_diagrams/libretto_p146.png
namespace libretto
type rowVR
properties
minOcc 0
maxOcc unbounded
content complex
children L5_1dataInstallazioneVR L5_1dataDismissioneVR L5_1fabbricanteVR L5_1modelloVR L5_1numVie L5_1servomotore
source <xs:element name="L5_1valvoleRegolazione" type="rowVR" minOccurs="0" maxOccurs="unbounded"/>

element impianto/scheda_5_sistemi_regolazione_contabilizzazione/L5_1flagRegMultiGrad
diagram libretto_diagrams/libretto_p147.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L5_1flagRegMultiGrad" type="xs:boolean" minOccurs="0"/>

element impianto/scheda_5_sistemi_regolazione_contabilizzazione/L5_1flagRegInverter
diagram libretto_diagrams/libretto_p148.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L5_1flagRegInverter" type="xs:boolean" minOccurs="0"/>

element impianto/scheda_5_sistemi_regolazione_contabilizzazione/L5_1descrAltriSistRegPrim
diagram libretto_diagrams/libretto_p149.png
namespace libretto
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L5_1descrAltriSistRegPrim" type="xs:string" minOccurs="0"/>

element impianto/scheda_5_sistemi_regolazione_contabilizzazione/L5_2
diagram libretto_diagrams/libretto_p150.png
namespace libretto
properties
minOcc 0
maxOcc 1
content complex
children L5_2termostato L5_2flagValvTermostSI L5_2flagValvDueVieSI L5_2flagValvTreVieSI L5_2note
source <xs:element name="L5_2" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="L5_2termostato" type="tipoTermostato" minOccurs="0"/>
      <xs:element name="L5_2flagValvTermostSI" type="xs:boolean" minOccurs="0"/>
      <xs:element name="L5_2flagValvDueVieSI" type="xs:boolean" minOccurs="0"/>
      <xs:element name="L5_2flagValvTreVieSI" type="xs:boolean" minOccurs="0"/>
      <xs:element name="L5_2note" type="xs:string" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element impianto/scheda_5_sistemi_regolazione_contabilizzazione/L5_2/L5_2termostato
diagram libretto_diagrams/libretto_p151.png
namespace libretto
type tipoTermostato
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1
maxInclusive 4
source <xs:element name="L5_2termostato" type="tipoTermostato" minOccurs="0"/>

element impianto/scheda_5_sistemi_regolazione_contabilizzazione/L5_2/L5_2flagValvTermostSI
diagram libretto_diagrams/libretto_p152.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L5_2flagValvTermostSI" type="xs:boolean" minOccurs="0"/>

element impianto/scheda_5_sistemi_regolazione_contabilizzazione/L5_2/L5_2flagValvDueVieSI
diagram libretto_diagrams/libretto_p153.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L5_2flagValvDueVieSI" type="xs:boolean" minOccurs="0"/>

element impianto/scheda_5_sistemi_regolazione_contabilizzazione/L5_2/L5_2flagValvTreVieSI
diagram libretto_diagrams/libretto_p154.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L5_2flagValvTreVieSI" type="xs:boolean" minOccurs="0"/>

element impianto/scheda_5_sistemi_regolazione_contabilizzazione/L5_2/L5_2note
diagram libretto_diagrams/libretto_p155.png
namespace libretto
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L5_2note" type="xs:string" minOccurs="0"/>

element impianto/scheda_5_sistemi_regolazione_contabilizzazione/L5_3
diagram libretto_diagrams/libretto_p156.png
namespace libretto
properties
minOcc 0
maxOcc 1
content complex
children L5_3flagTeleLetturaSI L5_3flagTeleGestioneSI L5_3descrSistemaIniziale L5_3SistemaSostituto
source <xs:element name="L5_3" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="L5_3flagTeleLetturaSI" type="xs:boolean" minOccurs="0"/>
      <xs:element name="L5_3flagTeleGestioneSI" type="xs:boolean" minOccurs="0"/>
      <xs:element name="L5_3descrSistemaIniziale" type="xs:string" minOccurs="0"/>
      <xs:element name="L5_3SistemaSostituto" minOccurs="0" maxOccurs="unbounded">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="L5_3dataSostituzione" type="data" minOccurs="0"/>
            <xs:element name="L5_3descrSistemaSost" type="xs:string" minOccurs="0"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element impianto/scheda_5_sistemi_regolazione_contabilizzazione/L5_3/L5_3flagTeleLetturaSI
diagram libretto_diagrams/libretto_p157.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L5_3flagTeleLetturaSI" type="xs:boolean" minOccurs="0"/>

element impianto/scheda_5_sistemi_regolazione_contabilizzazione/L5_3/L5_3flagTeleGestioneSI
diagram libretto_diagrams/libretto_p158.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L5_3flagTeleGestioneSI" type="xs:boolean" minOccurs="0"/>

element impianto/scheda_5_sistemi_regolazione_contabilizzazione/L5_3/L5_3descrSistemaIniziale
diagram libretto_diagrams/libretto_p159.png
namespace libretto
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L5_3descrSistemaIniziale" type="xs:string" minOccurs="0"/>

element impianto/scheda_5_sistemi_regolazione_contabilizzazione/L5_3/L5_3SistemaSostituto
diagram libretto_diagrams/libretto_p160.png
namespace libretto
properties
minOcc 0
maxOcc unbounded
content complex
children L5_3dataSostituzione L5_3descrSistemaSost
source <xs:element name="L5_3SistemaSostituto" minOccurs="0" maxOccurs="unbounded">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="L5_3dataSostituzione" type="data" minOccurs="0"/>
      <xs:element name="L5_3descrSistemaSost" type="xs:string" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element impianto/scheda_5_sistemi_regolazione_contabilizzazione/L5_3/L5_3SistemaSostituto/L5_3dataSostituzione
diagram libretto_diagrams/libretto_p161.png
namespace libretto
type data
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1900-01-01
maxInclusive 2100-12-31
source <xs:element name="L5_3dataSostituzione" type="data" minOccurs="0"/>

element impianto/scheda_5_sistemi_regolazione_contabilizzazione/L5_3/L5_3SistemaSostituto/L5_3descrSistemaSost
diagram libretto_diagrams/libretto_p162.png
namespace libretto
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L5_3descrSistemaSost" type="xs:string" minOccurs="0"/>

element impianto/scheda_5_sistemi_regolazione_contabilizzazione/L5_4
diagram libretto_diagrams/libretto_p163.png
namespace libretto
properties
minOcc 0
maxOcc 1
content complex
children L5_4ContabilizzazioneUISI L5_4flagSistemaDiretto L5_4descrSistema L5_4SistemaSostituto
source <xs:element name="L5_4" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="L5_4ContabilizzazioneUISI" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
   Il flag "L5_4ContabilizzazioneUISI" segue la presenza degli attributi alternativi tra loro: L5_4flagRiscald, L5_4flagRaffresc, L5_4flagACS. Il sistema di contabilizzazione può essere sostituito e in tal caso compare L5_4SistemaSostituto.
</xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:choice minOccurs="0" maxOccurs="3">
            <xs:element name="L5_4flagRiscald" type="xs:boolean" fixed="true" minOccurs="0"/>
            <xs:element name="L5_4flagRaffresc" type="xs:boolean" fixed="true" minOccurs="0"/>
            <xs:element name="L5_4flagACS" type="xs:boolean" fixed="true" minOccurs="0"/>
          </xs:choice>
        </xs:complexType>
      </xs:element>
      <xs:element name="L5_4flagSistemaDiretto" type="xs:boolean" minOccurs="0"/>
      <xs:element name="L5_4descrSistema" type="xs:string" minOccurs="0"/>
      <xs:element name="L5_4SistemaSostituto" minOccurs="0" maxOccurs="unbounded">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="L5_4dataSostituzione" type="data" minOccurs="0"/>
            <xs:element name="L5_4descrSistemaSost" type="xs:string" minOccurs="0"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element impianto/scheda_5_sistemi_regolazione_contabilizzazione/L5_4/L5_4ContabilizzazioneUISI
diagram libretto_diagrams/libretto_p164.png
namespace libretto
properties
minOcc 0
maxOcc 1
content complex
children L5_4flagRiscald L5_4flagRaffresc L5_4flagACS
annotation
documentation

   Il flag "L5_4ContabilizzazioneUISI" segue la presenza degli attributi alternativi tra loro: L5_4flagRiscald, L5_4flagRaffresc, L5_4flagACS. Il sistema di contabilizzazione può essere sostituito e in tal caso compare L5_4SistemaSostituto.
source <xs:element name="L5_4ContabilizzazioneUISI" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
   Il flag "L5_4ContabilizzazioneUISI" segue la presenza degli attributi alternativi tra loro: L5_4flagRiscald, L5_4flagRaffresc, L5_4flagACS. Il sistema di contabilizzazione può essere sostituito e in tal caso compare L5_4SistemaSostituto.
</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:choice minOccurs="0" maxOccurs="3">
      <xs:element name="L5_4flagRiscald" type="xs:boolean" fixed="true" minOccurs="0"/>
      <xs:element name="L5_4flagRaffresc" type="xs:boolean" fixed="true" minOccurs="0"/>
      <xs:element name="L5_4flagACS" type="xs:boolean" fixed="true" minOccurs="0"/>
    </xs:choice>
  </xs:complexType>
</xs:element>

element impianto/scheda_5_sistemi_regolazione_contabilizzazione/L5_4/L5_4ContabilizzazioneUISI/L5_4flagRiscald
diagram libretto_diagrams/libretto_p165.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
fixed true
source <xs:element name="L5_4flagRiscald" type="xs:boolean" fixed="true" minOccurs="0"/>

element impianto/scheda_5_sistemi_regolazione_contabilizzazione/L5_4/L5_4ContabilizzazioneUISI/L5_4flagRaffresc
diagram libretto_diagrams/libretto_p166.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
fixed true
source <xs:element name="L5_4flagRaffresc" type="xs:boolean" fixed="true" minOccurs="0"/>

element impianto/scheda_5_sistemi_regolazione_contabilizzazione/L5_4/L5_4ContabilizzazioneUISI/L5_4flagACS
diagram libretto_diagrams/libretto_p167.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
fixed true
source <xs:element name="L5_4flagACS" type="xs:boolean" fixed="true" minOccurs="0"/>

element impianto/scheda_5_sistemi_regolazione_contabilizzazione/L5_4/L5_4flagSistemaDiretto
diagram libretto_diagrams/libretto_p168.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L5_4flagSistemaDiretto" type="xs:boolean" minOccurs="0"/>

element impianto/scheda_5_sistemi_regolazione_contabilizzazione/L5_4/L5_4descrSistema
diagram libretto_diagrams/libretto_p169.png
namespace libretto
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L5_4descrSistema" type="xs:string" minOccurs="0"/>

element impianto/scheda_5_sistemi_regolazione_contabilizzazione/L5_4/L5_4SistemaSostituto
diagram libretto_diagrams/libretto_p170.png
namespace libretto
properties
minOcc 0
maxOcc unbounded
content complex
children L5_4dataSostituzione L5_4descrSistemaSost
source <xs:element name="L5_4SistemaSostituto" minOccurs="0" maxOccurs="unbounded">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="L5_4dataSostituzione" type="data" minOccurs="0"/>
      <xs:element name="L5_4descrSistemaSost" type="xs:string" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element impianto/scheda_5_sistemi_regolazione_contabilizzazione/L5_4/L5_4SistemaSostituto/L5_4dataSostituzione
diagram libretto_diagrams/libretto_p171.png
namespace libretto
type data
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1900-01-01
maxInclusive 2100-12-31
source <xs:element name="L5_4dataSostituzione" type="data" minOccurs="0"/>

element impianto/scheda_5_sistemi_regolazione_contabilizzazione/L5_4/L5_4SistemaSostituto/L5_4descrSistemaSost
diagram libretto_diagrams/libretto_p172.png
namespace libretto
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L5_4descrSistemaSost" type="xs:string" minOccurs="0"/>

element impianto/scheda_6_sistema_distribuzione
diagram libretto_diagrams/libretto_p173.png
namespace libretto
properties
minOcc 0
maxOcc 1
content complex
children L6_1flagVerticale L6_1flagOrizzontale L6_1flagCanaliAria L6_1DescrAltro L6_2flagCoibentSI L6_2note L6_3VasiEspansione L6_4PompeCircolazione
annotation
documentation

                    Nei sistemi di distribuzione si prevede l'eventuale sostituzione di vasi di espansione VE e pompe di circolazione PC, viene attribuito ad ognuno un numero progressivo dal sistema e i dati sono riportati nella sezione rowVE e rowPC (che possono ripetersi)

source <xs:element name="scheda_6_sistema_distribuzione" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
                    Nei sistemi di distribuzione si prevede l'eventuale sostituzione di vasi di espansione VE e pompe di circolazione PC, viene attribuito ad ognuno un numero progressivo dal sistema e i dati sono riportati nella sezione rowVE e rowPC (che possono ripetersi)
                     </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="L6_1flagVerticale" type="xs:boolean" minOccurs="0"/>
      <xs:element name="L6_1flagOrizzontale" type="xs:boolean" minOccurs="0"/>
      <xs:element name="L6_1flagCanaliAria" type="xs:boolean" minOccurs="0"/>
      <xs:element name="L6_1DescrAltro" type="xs:string" minOccurs="0"/>
      <xs:element name="L6_2flagCoibentSI" type="xs:boolean" minOccurs="0"/>
      <xs:element name="L6_2note" type="xs:string" minOccurs="0"/>
      <xs:element name="L6_3VasiEspansione" minOccurs="0" maxOccurs="unbounded">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="L6_3numVE" type="xs:integer" minOccurs="0"/>
            <xs:element name="rowVE" type="rowVE" minOccurs="0" maxOccurs="unbounded"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="L6_4PompeCircolazione" minOccurs="0" maxOccurs="unbounded">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="L6_4numPC" type="xs:integer" minOccurs="0"/>
            <xs:element name="rowPC" type="rowPC" minOccurs="0" maxOccurs="unbounded"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element impianto/scheda_6_sistema_distribuzione/L6_1flagVerticale
diagram libretto_diagrams/libretto_p174.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L6_1flagVerticale" type="xs:boolean" minOccurs="0"/>

element impianto/scheda_6_sistema_distribuzione/L6_1flagOrizzontale
diagram libretto_diagrams/libretto_p175.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L6_1flagOrizzontale" type="xs:boolean" minOccurs="0"/>

element impianto/scheda_6_sistema_distribuzione/L6_1flagCanaliAria
diagram libretto_diagrams/libretto_p176.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L6_1flagCanaliAria" type="xs:boolean" minOccurs="0"/>

element impianto/scheda_6_sistema_distribuzione/L6_1DescrAltro
diagram libretto_diagrams/libretto_p177.png
namespace libretto
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L6_1DescrAltro" type="xs:string" minOccurs="0"/>

element impianto/scheda_6_sistema_distribuzione/L6_2flagCoibentSI
diagram libretto_diagrams/libretto_p178.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L6_2flagCoibentSI" type="xs:boolean" minOccurs="0"/>

element impianto/scheda_6_sistema_distribuzione/L6_2note
diagram libretto_diagrams/libretto_p179.png
namespace libretto
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L6_2note" type="xs:string" minOccurs="0"/>

element impianto/scheda_6_sistema_distribuzione/L6_3VasiEspansione
diagram libretto_diagrams/libretto_p180.png
namespace libretto
properties
minOcc 0
maxOcc unbounded
content complex
children L6_3numVE rowVE
source <xs:element name="L6_3VasiEspansione" minOccurs="0" maxOccurs="unbounded">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="L6_3numVE" type="xs:integer" minOccurs="0"/>
      <xs:element name="rowVE" type="rowVE" minOccurs="0" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element impianto/scheda_6_sistema_distribuzione/L6_3VasiEspansione/L6_3numVE
diagram libretto_diagrams/libretto_p181.png
namespace libretto
type xs:integer
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L6_3numVE" type="xs:integer" minOccurs="0"/>

element impianto/scheda_6_sistema_distribuzione/L6_3VasiEspansione/rowVE
diagram libretto_diagrams/libretto_p182.png
namespace libretto
type rowVE
properties
minOcc 0
maxOcc unbounded
content complex
children L6_3capacita L6_3apertochiuso
source <xs:element name="rowVE" type="rowVE" minOccurs="0" maxOccurs="unbounded"/>

element impianto/scheda_6_sistema_distribuzione/L6_4PompeCircolazione
diagram libretto_diagrams/libretto_p183.png
namespace libretto
properties
minOcc 0
maxOcc unbounded
content complex
children L6_4numPC rowPC
source <xs:element name="L6_4PompeCircolazione" minOccurs="0" maxOccurs="unbounded">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="L6_4numPC" type="xs:integer" minOccurs="0"/>
      <xs:element name="rowPC" type="rowPC" minOccurs="0" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element impianto/scheda_6_sistema_distribuzione/L6_4PompeCircolazione/L6_4numPC
diagram libretto_diagrams/libretto_p184.png
namespace libretto
type xs:integer
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L6_4numPC" type="xs:integer" minOccurs="0"/>

element impianto/scheda_6_sistema_distribuzione/L6_4PompeCircolazione/rowPC
diagram libretto_diagrams/libretto_p185.png
namespace libretto
type rowPC
properties
minOcc 0
maxOcc unbounded
content complex
children L6_4dataInstallazione L6_4dataDismissione L6_4fabbricante L6_4modello L6_4flagGiriVarSI L6_4potNominale
source <xs:element name="rowPC" type="rowPC" minOccurs="0" maxOccurs="unbounded"/>

element impianto/scheda_7_emissione
diagram libretto_diagrams/libretto_p186.png
namespace libretto
properties
minOcc 0
maxOcc 1
content complex
children L7_flagRadiatori L7_flagTermoConvett L7_flagVentilConvett L7_flagPannelRadianti L7_flagBocchette L7_flagStrisce L7_flagTravi L7_flagAltro L7_descrAltro
annotation
documentation

                    gli elementi contenuti in emissione sono dei flag (anche multipli) e una descrizione nel caso di altro tipo

source <xs:element name="scheda_7_emissione" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
                    gli elementi contenuti in emissione sono dei flag (anche multipli) e una descrizione nel caso di altro tipo
                    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="L7_flagRadiatori" type="xs:boolean" minOccurs="0"/>
      <xs:element name="L7_flagTermoConvett" type="xs:boolean" minOccurs="0"/>
      <xs:element name="L7_flagVentilConvett" type="xs:boolean" minOccurs="0"/>
      <xs:element name="L7_flagPannelRadianti" type="xs:boolean" minOccurs="0"/>
      <xs:element name="L7_flagBocchette" type="xs:boolean" minOccurs="0"/>
      <xs:element name="L7_flagStrisce" type="xs:boolean" minOccurs="0"/>
      <xs:element name="L7_flagTravi" type="xs:boolean" minOccurs="0"/>
      <xs:element name="L7_flagAltro" type="xs:boolean" minOccurs="0"/>
      <xs:element name="L7_descrAltro" type="xs:string" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element impianto/scheda_7_emissione/L7_flagRadiatori
diagram libretto_diagrams/libretto_p187.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L7_flagRadiatori" type="xs:boolean" minOccurs="0"/>

element impianto/scheda_7_emissione/L7_flagTermoConvett
diagram libretto_diagrams/libretto_p188.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L7_flagTermoConvett" type="xs:boolean" minOccurs="0"/>

element impianto/scheda_7_emissione/L7_flagVentilConvett
diagram libretto_diagrams/libretto_p189.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L7_flagVentilConvett" type="xs:boolean" minOccurs="0"/>

element impianto/scheda_7_emissione/L7_flagPannelRadianti
diagram libretto_diagrams/libretto_p190.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L7_flagPannelRadianti" type="xs:boolean" minOccurs="0"/>

element impianto/scheda_7_emissione/L7_flagBocchette
diagram libretto_diagrams/libretto_p191.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L7_flagBocchette" type="xs:boolean" minOccurs="0"/>

element impianto/scheda_7_emissione/L7_flagStrisce
diagram libretto_diagrams/libretto_p192.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L7_flagStrisce" type="xs:boolean" minOccurs="0"/>

element impianto/scheda_7_emissione/L7_flagTravi
diagram libretto_diagrams/libretto_p193.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L7_flagTravi" type="xs:boolean" minOccurs="0"/>

element impianto/scheda_7_emissione/L7_flagAltro
diagram libretto_diagrams/libretto_p194.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L7_flagAltro" type="xs:boolean" minOccurs="0"/>

element impianto/scheda_7_emissione/L7_descrAltro
diagram libretto_diagrams/libretto_p195.png
namespace libretto
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L7_descrAltro" type="xs:string" minOccurs="0"/>

element impianto/scheda_8_sistema_accumulo
diagram libretto_diagrams/libretto_p196.png
namespace libretto
properties
minOcc 0
maxOcc 1
content complex
children sistema_accumulo
annotation
documentation

sistemi di accumulo se non incorporati nel gruppo termico. la scheda prevede la sostituzione del singolo gruppo di accumulo numerato progressivamente, mentre i dati sono riportati in rowAC
source <xs:element name="scheda_8_sistema_accumulo" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
sistemi di accumulo se non incorporati nel gruppo termico. la scheda prevede la sostituzione del singolo gruppo di accumulo numerato progressivamente, mentre i dati sono riportati in rowAC
</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="sistema_accumulo" maxOccurs="unbounded">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="L8_1numAC" type="xs:integer" minOccurs="0"/>
            <xs:element name="rowAC" type="rowAC" minOccurs="0" maxOccurs="unbounded"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element impianto/scheda_8_sistema_accumulo/sistema_accumulo
diagram libretto_diagrams/libretto_p197.png
namespace libretto
properties
minOcc 1
maxOcc unbounded
content complex
children L8_1numAC rowAC
source <xs:element name="sistema_accumulo" maxOccurs="unbounded">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="L8_1numAC" type="xs:integer" minOccurs="0"/>
      <xs:element name="rowAC" type="rowAC" minOccurs="0" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element impianto/scheda_8_sistema_accumulo/sistema_accumulo/L8_1numAC
diagram libretto_diagrams/libretto_p198.png
namespace libretto
type xs:integer
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L8_1numAC" type="xs:integer" minOccurs="0"/>

element impianto/scheda_8_sistema_accumulo/sistema_accumulo/rowAC
diagram libretto_diagrams/libretto_p199.png
namespace libretto
type rowAC
properties
minOcc 0
maxOcc unbounded
content complex
children L8_1dataInstallazione L8_1dataDismissione L8_1fabbricante L8_1modello L8_1matricola L8_1capacita L8_1flagACS L8_1flagRiscald L8_1flagRaffresc L8_1flagCoibentSI
source <xs:element name="rowAC" type="rowAC" minOccurs="0" maxOccurs="unbounded"/>

element impianto/scheda_9_altriComponenti
diagram libretto_diagrams/libretto_p200.png
namespace libretto
properties
minOcc 0
maxOcc 1
content complex
children L9_1_AltriComponentiTE L9_2_AltriComponentiRV L9_3_AltriComponentiSC L9_4_AltriComponentiCI L9_5_AltriComponentiUT L9_6_AltriComponentiRC
annotation
documentation

altri componenti dell'impianto (es. torri evaporative TE, raffreddatori di liquido RV, scambiatore di calore intermedi SC, circuiti interrati a condensazione CI, unità di trattamento aria UT, recuperatori di calore RC), è prevista la sostituzione e per ognuno va indicato il numero progressivo che li identifica all'interno dell'impianto
source <xs:element name="scheda_9_altriComponenti" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
altri componenti dell'impianto (es. torri evaporative TE, raffreddatori di liquido RV, scambiatore di calore intermedi SC, circuiti interrati a condensazione CI, unità di trattamento aria UT, recuperatori di calore RC), è prevista la sostituzione e per ognuno va indicato il numero progressivo che li identifica all'interno dell'impianto
</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:choice maxOccurs="unbounded">
      <xs:element name="L9_1_AltriComponentiTE">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="L9_1numTE" type="xs:integer"/>
            <xs:element name="rowTE" type="rowTE" maxOccurs="unbounded"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="L9_2_AltriComponentiRV">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="L9_2numRV" type="xs:integer"/>
            <xs:element name="rowRV" type="rowRV" maxOccurs="unbounded"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="L9_3_AltriComponentiSC">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="L9_3numSCcal" type="xs:integer"/>
            <xs:element name="rowSCcal" type="rowSCcal" maxOccurs="unbounded"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="L9_4_AltriComponentiCI">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="L9_4numCI" type="xs:integer"/>
            <xs:element name="rowCI" type="rowCI" maxOccurs="unbounded"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="L9_5_AltriComponentiUT">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="L9_5numUT" type="xs:integer"/>
            <xs:element name="rowUT" type="rowUT" maxOccurs="unbounded"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="L9_6_AltriComponentiRC">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="L9_6numRCcal" type="xs:integer"/>
            <xs:element name="rowRCcal" type="rowRCcal" maxOccurs="unbounded"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:choice>
  </xs:complexType>
</xs:element>

element impianto/scheda_9_altriComponenti/L9_1_AltriComponentiTE
diagram libretto_diagrams/libretto_p201.png
namespace libretto
properties
content complex
children L9_1numTE rowTE
source <xs:element name="L9_1_AltriComponentiTE">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="L9_1numTE" type="xs:integer"/>
      <xs:element name="rowTE" type="rowTE" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element impianto/scheda_9_altriComponenti/L9_1_AltriComponentiTE/L9_1numTE
diagram libretto_diagrams/libretto_p202.png
namespace libretto
type xs:integer
properties
content simple
source <xs:element name="L9_1numTE" type="xs:integer"/>

element impianto/scheda_9_altriComponenti/L9_1_AltriComponentiTE/rowTE
diagram libretto_diagrams/libretto_p203.png
namespace libretto
type rowTE
properties
minOcc 1
maxOcc unbounded
content complex
children L9_1dataInstallazione L9_1dataDismissione L9_1fabbricante L9_1modello L9_1matricola L9_1capacitaNominale L9_1numVentilatori L9_1tipoVentilatori
source <xs:element name="rowTE" type="rowTE" maxOccurs="unbounded"/>

element impianto/scheda_9_altriComponenti/L9_2_AltriComponentiRV
diagram libretto_diagrams/libretto_p204.png
namespace libretto
properties
content complex
children L9_2numRV rowRV
source <xs:element name="L9_2_AltriComponentiRV">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="L9_2numRV" type="xs:integer"/>
      <xs:element name="rowRV" type="rowRV" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element impianto/scheda_9_altriComponenti/L9_2_AltriComponentiRV/L9_2numRV
diagram libretto_diagrams/libretto_p205.png
namespace libretto
type xs:integer
properties
content simple
source <xs:element name="L9_2numRV" type="xs:integer"/>

element impianto/scheda_9_altriComponenti/L9_2_AltriComponentiRV/rowRV
diagram libretto_diagrams/libretto_p206.png
namespace libretto
type rowRV
properties
minOcc 1
maxOcc unbounded
content complex
children L9_2dataInstallazione L9_2dataDismissione L9_2fabbricante L9_2modello L9_2matricola L9_2numVentilatori L9_2tipoVentilatori
source <xs:element name="rowRV" type="rowRV" maxOccurs="unbounded"/>

element impianto/scheda_9_altriComponenti/L9_3_AltriComponentiSC
diagram libretto_diagrams/libretto_p207.png
namespace libretto
properties
content complex
children L9_3numSCcal rowSCcal
source <xs:element name="L9_3_AltriComponentiSC">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="L9_3numSCcal" type="xs:integer"/>
      <xs:element name="rowSCcal" type="rowSCcal" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element impianto/scheda_9_altriComponenti/L9_3_AltriComponentiSC/L9_3numSCcal
diagram libretto_diagrams/libretto_p208.png
namespace libretto
type xs:integer
properties
content simple
source <xs:element name="L9_3numSCcal" type="xs:integer"/>

element impianto/scheda_9_altriComponenti/L9_3_AltriComponentiSC/rowSCcal
diagram libretto_diagrams/libretto_p209.png
namespace libretto
type rowSCcal
properties
minOcc 1
maxOcc unbounded
content complex
children L9_3dataInstallazione L9_3dataDismissione L9_3fabbricante L9_3modello
source <xs:element name="rowSCcal" type="rowSCcal" maxOccurs="unbounded"/>

element impianto/scheda_9_altriComponenti/L9_4_AltriComponentiCI
diagram libretto_diagrams/libretto_p210.png
namespace libretto
properties
content complex
children L9_4numCI rowCI
source <xs:element name="L9_4_AltriComponentiCI">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="L9_4numCI" type="xs:integer"/>
      <xs:element name="rowCI" type="rowCI" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element impianto/scheda_9_altriComponenti/L9_4_AltriComponentiCI/L9_4numCI
diagram libretto_diagrams/libretto_p211.png
namespace libretto
type xs:integer
properties
content simple
source <xs:element name="L9_4numCI" type="xs:integer"/>

element impianto/scheda_9_altriComponenti/L9_4_AltriComponentiCI/rowCI
diagram libretto_diagrams/libretto_p212.png
namespace libretto
type rowCI
properties
minOcc 1
maxOcc unbounded
content complex
children L9_4dataInstallazione L9_4dataDismissione L9_4lungCircuito L9_4superfScamb L9_4profInstallaz
source <xs:element name="rowCI" type="rowCI" maxOccurs="unbounded"/>

element impianto/scheda_9_altriComponenti/L9_5_AltriComponentiUT
diagram libretto_diagrams/libretto_p213.png
namespace libretto
properties
content complex
children L9_5numUT rowUT
source <xs:element name="L9_5_AltriComponentiUT">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="L9_5numUT" type="xs:integer"/>
      <xs:element name="rowUT" type="rowUT" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element impianto/scheda_9_altriComponenti/L9_5_AltriComponentiUT/L9_5numUT
diagram libretto_diagrams/libretto_p214.png
namespace libretto
type xs:integer
properties
content simple
source <xs:element name="L9_5numUT" type="xs:integer"/>

element impianto/scheda_9_altriComponenti/L9_5_AltriComponentiUT/rowUT
diagram libretto_diagrams/libretto_p215.png
namespace libretto
type rowUT
properties
minOcc 1
maxOcc unbounded
content complex
children L9_5dataInstallazione L9_5dataDismissione L9_5fabbricante L9_5modello L9_5matricola L9_5portataVentMandata L9_5portataVentRipresa L9_5potenzaVentMandata L9_5potenzaVentRipresa
source <xs:element name="rowUT" type="rowUT" maxOccurs="unbounded"/>

element impianto/scheda_9_altriComponenti/L9_6_AltriComponentiRC
diagram libretto_diagrams/libretto_p216.png
namespace libretto
properties
content complex
children L9_6numRCcal rowRCcal
source <xs:element name="L9_6_AltriComponentiRC">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="L9_6numRCcal" type="xs:integer"/>
      <xs:element name="rowRCcal" type="rowRCcal" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element impianto/scheda_9_altriComponenti/L9_6_AltriComponentiRC/L9_6numRCcal
diagram libretto_diagrams/libretto_p217.png
namespace libretto
type xs:integer
properties
content simple
source <xs:element name="L9_6numRCcal" type="xs:integer"/>

element impianto/scheda_9_altriComponenti/L9_6_AltriComponentiRC/rowRCcal
diagram libretto_diagrams/libretto_p218.png
namespace libretto
type rowRCcal
properties
minOcc 1
maxOcc unbounded
content complex
children L9_6dataInstallazione L9_6dataDismissione L9_6tipologia L9_6flagInstallatoUTAindipendente L9_6portataVentMandata L9_6portataVentRipresa L9_6potenzaVentMandata L9_6potenzaVentRipresa
source <xs:element name="rowRCcal" type="rowRCcal" maxOccurs="unbounded"/>

element impianto/scheda_10_ventilazione
diagram libretto_diagrams/libretto_p219.png
namespace libretto
properties
minOcc 0
maxOcc 1
content complex
children L10_1VentilazMeccanicaVM
annotation
documentation

                   altri componenti dell'impianto, tipo impianto di ventilazione meccanica controllata, è prevista la sostituzione

source <xs:element name="scheda_10_ventilazione" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
                   altri componenti dell'impianto, tipo impianto di ventilazione meccanica controllata, è prevista la sostituzione
                    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="L10_1VentilazMeccanicaVM" maxOccurs="unbounded">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="L10_1numVM" type="xs:integer" minOccurs="0"/>
            <xs:element name="rowVM" type="rowVM" minOccurs="0" maxOccurs="unbounded"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element impianto/scheda_10_ventilazione/L10_1VentilazMeccanicaVM
diagram libretto_diagrams/libretto_p220.png
namespace libretto
properties
minOcc 1
maxOcc unbounded
content complex
children L10_1numVM rowVM
source <xs:element name="L10_1VentilazMeccanicaVM" maxOccurs="unbounded">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="L10_1numVM" type="xs:integer" minOccurs="0"/>
      <xs:element name="rowVM" type="rowVM" minOccurs="0" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element impianto/scheda_10_ventilazione/L10_1VentilazMeccanicaVM/L10_1numVM
diagram libretto_diagrams/libretto_p221.png
namespace libretto
type xs:integer
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L10_1numVM" type="xs:integer" minOccurs="0"/>

element impianto/scheda_10_ventilazione/L10_1VentilazMeccanicaVM/rowVM
diagram libretto_diagrams/libretto_p222.png
namespace libretto
type rowVM
properties
minOcc 0
maxOcc unbounded
content complex
children L10_1dataInstallazione L10_1dataDismissione L10_1fabbricante L10_1modello L10_1tipo_ventilazione_meccanica L10_1maxPortataAria L10_1rendimentoRecupero
source <xs:element name="rowVM" type="rowVM" minOccurs="0" maxOccurs="unbounded"/>

element impianto/scheda_11_1_VerificaGruppiTermici
diagram libretto_diagrams/libretto_p223.png
namespace libretto
properties
minOcc 0
maxOcc 1
content complex
children VerificaGruppiTermici
annotation
documentation

                    risultati della verifica effettuata dall'installatore e delle verifiche periodiche successive effettuate dal manutentore su gruppi termici/caldaie

source <xs:element name="scheda_11_1_VerificaGruppiTermici" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
                    risultati della verifica effettuata dall'installatore e delle verifiche periodiche successive effettuate dal manutentore su gruppi termici/caldaie
                     </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="VerificaGruppiTermici" maxOccurs="unbounded">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="L11_1numGT" type="xs:integer" minOccurs="0"/>
            <xs:element name="L11_1flagNormaUNI10389" type="xs:boolean" minOccurs="0"/>
            <xs:element name="L11_1altraNorma" type="xs:string" minOccurs="0"/>
            <xs:element name="row11_1" type="row11_1" minOccurs="0" maxOccurs="unbounded"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element impianto/scheda_11_1_VerificaGruppiTermici/VerificaGruppiTermici
diagram libretto_diagrams/libretto_p224.png
namespace libretto
properties
minOcc 1
maxOcc unbounded
content complex
children L11_1numGT L11_1flagNormaUNI10389 L11_1altraNorma row11_1
source <xs:element name="VerificaGruppiTermici" maxOccurs="unbounded">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="L11_1numGT" type="xs:integer" minOccurs="0"/>
      <xs:element name="L11_1flagNormaUNI10389" type="xs:boolean" minOccurs="0"/>
      <xs:element name="L11_1altraNorma" type="xs:string" minOccurs="0"/>
      <xs:element name="row11_1" type="row11_1" minOccurs="0" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element impianto/scheda_11_1_VerificaGruppiTermici/VerificaGruppiTermici/L11_1numGT
diagram libretto_diagrams/libretto_p225.png
namespace libretto
type xs:integer
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L11_1numGT" type="xs:integer" minOccurs="0"/>

element impianto/scheda_11_1_VerificaGruppiTermici/VerificaGruppiTermici/L11_1flagNormaUNI10389
diagram libretto_diagrams/libretto_p226.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L11_1flagNormaUNI10389" type="xs:boolean" minOccurs="0"/>

element impianto/scheda_11_1_VerificaGruppiTermici/VerificaGruppiTermici/L11_1altraNorma
diagram libretto_diagrams/libretto_p227.png
namespace libretto
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L11_1altraNorma" type="xs:string" minOccurs="0"/>

element impianto/scheda_11_1_VerificaGruppiTermici/VerificaGruppiTermici/row11_1
diagram libretto_diagrams/libretto_p228.png
namespace libretto
type row11_1
properties
minOcc 0
maxOcc unbounded
content complex
children L11_1data L11_1moduloTermico L11_1portataTermicaEffettiva L11_1combustibile L11_1tempFumi L11_1tempAria L11_1O2 L11_1CO2 L11_1bacharach1 L11_1bacharach2 L11_1bacharach3 L11_1COfumiSecchi L11_1portataCombustibile L11_1valorePortata L11_1COfumiSecchiSenzaAria L11_1rendimCombustione L11_1flagRispettoIndBacharach L11_1flagRispettoLimiteCOfumiSecchi L11_1rendimentoLegge L11_1flagRispettoRendimentoMinimo L11_1nox L11_1tecnico
source <xs:element name="row11_1" type="row11_1" minOccurs="0" maxOccurs="unbounded"/>

element impianto/scheda_11_2_VerificaGruppiFrigo
diagram libretto_diagrams/libretto_p229.png
namespace libretto
properties
minOcc 0
maxOcc 1
content complex
children VerificaGruppiFrigo
annotation
documentation

                        risultati della verifica effettuata dall'installatore e delle verifiche periodiche successive effettuate dal manutentore su gruppi frigoriferi/pompe di calore
source <xs:element name="scheda_11_2_VerificaGruppiFrigo" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
                        risultati della verifica effettuata dall'installatore e delle verifiche periodiche successive effettuate dal manutentore su gruppi frigoriferi/pompe di calore
</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="VerificaGruppiFrigo" maxOccurs="unbounded">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="L11_2numGF" type="xs:integer" minOccurs="0"/>
            <xs:element name="row11_2" type="row11_2" minOccurs="0" maxOccurs="unbounded"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element impianto/scheda_11_2_VerificaGruppiFrigo/VerificaGruppiFrigo
diagram libretto_diagrams/libretto_p230.png
namespace libretto
properties
minOcc 1
maxOcc unbounded
content complex
children L11_2numGF row11_2
source <xs:element name="VerificaGruppiFrigo" maxOccurs="unbounded">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="L11_2numGF" type="xs:integer" minOccurs="0"/>
      <xs:element name="row11_2" type="row11_2" minOccurs="0" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element impianto/scheda_11_2_VerificaGruppiFrigo/VerificaGruppiFrigo/L11_2numGF
diagram libretto_diagrams/libretto_p231.png
namespace libretto
type xs:integer
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L11_2numGF" type="xs:integer" minOccurs="0"/>

element impianto/scheda_11_2_VerificaGruppiFrigo/VerificaGruppiFrigo/row11_2
diagram libretto_diagrams/libretto_p232.png
namespace libretto
type row11_2
properties
minOcc 0
maxOcc unbounded
content complex
children L11_2data L11_2flagAssenzaPerdite L11_2flagRaffrescamento L11_2flagRiscaldamento L11_2numCircuito L11_2surrisc L11_2tSottoRaffr L11_2tCondens L11_2tEvaporaz L11_2tIngLatoEst L11_2tUscLatoEst L11_2tIngLatoUtenze L11_2tUscLatoUtenze L11_2tUscFluido L11_2tBulboUmido L11_2tIngFluidoSorg L11_2tUscFluidoSorg L11_2tIngFluidoMacc L11_2tUscFluidoMacc L11_2potenzaAss L11_2flagFiltriPuliti L11_2flagVerificaSuperata L11_2dataRipristino L11_2tecnico
source <xs:element name="row11_2" type="row11_2" minOccurs="0" maxOccurs="unbounded"/>

element impianto/scheda_11_3_VerificaScambiatoreCalore
diagram libretto_diagrams/libretto_p233.png
namespace libretto
properties
minOcc 0
maxOcc 1
content complex
children VerificaScambiatoreCalore
annotation
documentation

                   risultati della verifica effettuata dall'installatore e delle verifiche periodiche successive effettuate dal manutentore su scambiatori di calore della sottostazione di teleriscaldamento/teleraffreddamento

source <xs:element name="scheda_11_3_VerificaScambiatoreCalore" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
                   risultati della verifica effettuata dall'installatore e delle verifiche periodiche successive effettuate dal manutentore su scambiatori di calore della sottostazione di teleriscaldamento/teleraffreddamento
                    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="VerificaScambiatoreCalore" maxOccurs="unbounded">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="L11_3numSC" type="xs:integer" minOccurs="0"/>
            <xs:element name="row11_3" type="row11_3" minOccurs="0" maxOccurs="unbounded"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element impianto/scheda_11_3_VerificaScambiatoreCalore/VerificaScambiatoreCalore
diagram libretto_diagrams/libretto_p234.png
namespace libretto
properties
minOcc 1
maxOcc unbounded
content complex
children L11_3numSC row11_3
source <xs:element name="VerificaScambiatoreCalore" maxOccurs="unbounded">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="L11_3numSC" type="xs:integer" minOccurs="0"/>
      <xs:element name="row11_3" type="row11_3" minOccurs="0" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element impianto/scheda_11_3_VerificaScambiatoreCalore/VerificaScambiatoreCalore/L11_3numSC
diagram libretto_diagrams/libretto_p235.png
namespace libretto
type xs:integer
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L11_3numSC" type="xs:integer" minOccurs="0"/>

element impianto/scheda_11_3_VerificaScambiatoreCalore/VerificaScambiatoreCalore/row11_3
diagram libretto_diagrams/libretto_p236.png
namespace libretto
type row11_3
properties
minOcc 0
maxOcc unbounded
content complex
children L11_3data L11_3tempEsterna L11_3tempMandPrimario L11_3tempRitPrimario L11_3tempMandSecond L11_3tempRitSecond L11_3portataFluidoPrim L11_3potTermica L11_3flagPotenzaCompatibile L11_3flagStatoCoibentazioni L11_3flagDispositiviRegolazione L11_3tecnico
source <xs:element name="row11_3" type="row11_3" minOccurs="0" maxOccurs="unbounded"/>

element impianto/scheda_11_4_VerificaCogeneratoriTrigeneratori
diagram libretto_diagrams/libretto_p237.png
namespace libretto
properties
minOcc 0
maxOcc 1
content complex
children VerificaCogeneratoriTrigeneratori
annotation
documentation

                    risultati della verifica effettuata dall'installatore e delle verifiche periodiche successive effettuate dal manutentore su cogeneratori/trigeneratori

source <xs:element name="scheda_11_4_VerificaCogeneratoriTrigeneratori" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
                    risultati della verifica effettuata dall'installatore e delle verifiche periodiche successive effettuate dal manutentore su cogeneratori/trigeneratori
                                        </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="VerificaCogeneratoriTrigeneratori" maxOccurs="unbounded">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="L11_4numCG" type="xs:integer" minOccurs="0"/>
            <xs:element name="row11_4" type="row11_4" minOccurs="0" maxOccurs="unbounded"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element impianto/scheda_11_4_VerificaCogeneratoriTrigeneratori/VerificaCogeneratoriTrigeneratori
diagram libretto_diagrams/libretto_p238.png
namespace libretto
properties
minOcc 1
maxOcc unbounded
content complex
children L11_4numCG row11_4
source <xs:element name="VerificaCogeneratoriTrigeneratori" maxOccurs="unbounded">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="L11_4numCG" type="xs:integer" minOccurs="0"/>
      <xs:element name="row11_4" type="row11_4" minOccurs="0" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element impianto/scheda_11_4_VerificaCogeneratoriTrigeneratori/VerificaCogeneratoriTrigeneratori/L11_4numCG
diagram libretto_diagrams/libretto_p239.png
namespace libretto
type xs:integer
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L11_4numCG" type="xs:integer" minOccurs="0"/>

element impianto/scheda_11_4_VerificaCogeneratoriTrigeneratori/VerificaCogeneratoriTrigeneratori/row11_4
diagram libretto_diagrams/libretto_p240.png
namespace libretto
type row11_4
properties
minOcc 0
maxOcc unbounded
content complex
children L11_4data L11_4tempAriaComb L11_4tempH2Ouscita L11_4tempH2Oingresso L11_4tempH2Omotore L11_4tempFumiValle L11_4tempFumiMonte L11_4potElettricaMorsetti L11_4emissioniCO L11_4sovraFreqSoglia1 L11_4sovraFreqSoglia2 L11_4sovraFreqSoglia3 L11_4sovraFreqTempo1 L11_4sovraFreqTempo2 L11_4sovraFreqTempo3 L11_4sottoFreqSoglia1 L11_4sottoFreqSoglia2 L11_4sottoFreqSoglia3 L11_4sottoFreqTempo1 L11_4sottoFreqTempo2 L11_4sottoFreqTempo3 L11_4sovraTensSoglia1 L11_4sovraTensSoglia2 L11_4sovraTensSoglia3 L11_4sovraTensTempo1 L11_4sovraTensTempo2 L11_4sovraTensTempo3 L11_4sottoTensSoglia1 L11_4sottoTensSoglia2 L11_4sottoTensSoglia3 L11_4sottoTensTempo1 L11_4sottoTensTempo2 L11_4sottoTensTempo3 L11_4tecnico
source <xs:element name="row11_4" type="row11_4" minOccurs="0" maxOccurs="unbounded"/>

element impianto/scheda_12_interventi_CEE
diagram libretto_diagrams/libretto_p241.png
namespace libretto
properties
minOcc 0
maxOcc 1
content complex
children interventi_CEE
annotation
documentation

interventi di controllo efficienza energetica, la ditta incaricata è identificata a mezzo di PIVA e n°REA (che sostituisce il codice CCIAA)
source <xs:element name="scheda_12_interventi_CEE" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
interventi di controllo efficienza energetica, la ditta incaricata è identificata a mezzo di PIVA e n°REA (che sostituisce il codice CCIAA)
</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="interventi_CEE" maxOccurs="unbounded">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="L12ditta" type="persona_giuridica" minOccurs="0"/>
            <xs:element name="L12data_rapporto" type="data" minOccurs="0"/>
            <xs:element name="L12flagRaccomandazioni" type="xs:boolean" minOccurs="0"/>
            <xs:element name="L12flagPrescrizioni" type="xs:boolean" minOccurs="0"/>
            <xs:element name="L12REA" type="REA" minOccurs="0"/>
            <xs:element name="L12tipo_RCEE" type="RCEE" minOccurs="0"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element impianto/scheda_12_interventi_CEE/interventi_CEE
diagram libretto_diagrams/libretto_p242.png
namespace libretto
properties
minOcc 1
maxOcc unbounded
content complex
children L12ditta L12data_rapporto L12flagRaccomandazioni L12flagPrescrizioni L12REA L12tipo_RCEE
source <xs:element name="interventi_CEE" maxOccurs="unbounded">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="L12ditta" type="persona_giuridica" minOccurs="0"/>
      <xs:element name="L12data_rapporto" type="data" minOccurs="0"/>
      <xs:element name="L12flagRaccomandazioni" type="xs:boolean" minOccurs="0"/>
      <xs:element name="L12flagPrescrizioni" type="xs:boolean" minOccurs="0"/>
      <xs:element name="L12REA" type="REA" minOccurs="0"/>
      <xs:element name="L12tipo_RCEE" type="RCEE" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element impianto/scheda_12_interventi_CEE/interventi_CEE/L12ditta
diagram libretto_diagrams/libretto_p243.png
namespace libretto
type persona_giuridica
properties
minOcc 0
maxOcc 1
content complex
children ragione_sociale partita_IVA
source <xs:element name="L12ditta" type="persona_giuridica" minOccurs="0"/>

element impianto/scheda_12_interventi_CEE/interventi_CEE/L12data_rapporto
diagram libretto_diagrams/libretto_p244.png
namespace libretto
type data
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1900-01-01
maxInclusive 2100-12-31
source <xs:element name="L12data_rapporto" type="data" minOccurs="0"/>

element impianto/scheda_12_interventi_CEE/interventi_CEE/L12flagRaccomandazioni
diagram libretto_diagrams/libretto_p245.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L12flagRaccomandazioni" type="xs:boolean" minOccurs="0"/>

element impianto/scheda_12_interventi_CEE/interventi_CEE/L12flagPrescrizioni
diagram libretto_diagrams/libretto_p246.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L12flagPrescrizioni" type="xs:boolean" minOccurs="0"/>

element impianto/scheda_12_interventi_CEE/interventi_CEE/L12REA
diagram libretto_diagrams/libretto_p247.png
namespace libretto
type REA
properties
minOcc 0
maxOcc 1
content complex
children Sigla_Localita_Impresa numero_REA
source <xs:element name="L12REA" type="REA" minOccurs="0"/>

element impianto/scheda_12_interventi_CEE/interventi_CEE/L12tipo_RCEE
diagram libretto_diagrams/libretto_p248.png
namespace libretto
type RCEE
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1
maxInclusive 4
source <xs:element name="L12tipo_RCEE" type="RCEE" minOccurs="0"/>

element impianto/scheda_13_ispezione_autorita
diagram libretto_diagrams/libretto_p249.png
namespace libretto
properties
minOcc 0
maxOcc 1
content complex
children ispezione_autorita
annotation
documentation

interventi di controllo efficienza energetica, la ditta incaricata è identificata a mezzo di PIVA e n°REA (che sostituisce il codice CCIAA
in caso ci siano raccomandazioni e/o prescrizioni il rispettivo attributo assume valore "true"
source <xs:element name="scheda_13_ispezione_autorita" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
interventi di controllo efficienza energetica, la ditta incaricata è identificata a mezzo di PIVA e n°REA (che sostituisce il codice CCIAA
in caso ci siano raccomandazioni e/o prescrizioni il rispettivo attributo assume valore "true"
</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="ispezione_autorita" type="ispezione" minOccurs="0" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element impianto/scheda_13_ispezione_autorita/ispezione_autorita
diagram libretto_diagrams/libretto_p250.png
namespace libretto
type ispezione
properties
minOcc 0
maxOcc unbounded
content complex
children L13flagEsitoIspezione L13dataIspezione L13ispettore L13nomeAutoritaCompetente L13noteIspezione L13numeroRapportoProva
source <xs:element name="ispezione_autorita" type="ispezione" minOccurs="0" maxOccurs="unbounded"/>

element impianto/scheda_14_consumi_esercizi
diagram libretto_diagrams/libretto_p251.png
namespace libretto
properties
minOcc 0
maxOcc 1
content complex
children consumi_esercizi
annotation
documentation

interventi di controllo efficienza energetica, la ditta incaricata è identificata a mezzo di PIVA e n°REA (che sostituisce il codice CCIAA
in caso ci siano raccomandazioni e/o prescrizioni il rispettivo attributo assume valore "true"
source <xs:element name="scheda_14_consumi_esercizi" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
interventi di controllo efficienza energetica, la ditta incaricata è identificata a mezzo di PIVA e n°REA (che sostituisce il codice CCIAA
in caso ci siano raccomandazioni e/o prescrizioni il rispettivo attributo assume valore "true"
</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="consumi_esercizi" type="consumi_esercizi" minOccurs="0" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element impianto/scheda_14_consumi_esercizi/consumi_esercizi
diagram libretto_diagrams/libretto_p252.png
namespace libretto
type consumi_esercizi
properties
minOcc 0
maxOcc unbounded
content complex
children consumo_combustibile energia_elettrica acqua_impianto_termico prodotti_chimici_trattamento_acqua
source <xs:element name="consumi_esercizi" type="consumi_esercizi" minOccurs="0" maxOccurs="unbounded"/>

complexType ispezione
diagram libretto_diagrams/libretto_p253.png
namespace libretto
children L13flagEsitoIspezione L13dataIspezione L13ispettore L13nomeAutoritaCompetente L13noteIspezione L13numeroRapportoProva
used by
element impianto/scheda_13_ispezione_autorita/ispezione_autorita
annotation
documentation

                         questo elemento contiene i dati dell'ispezione a cura dell'autorità competente o organismo esterno
                         tale autorità viene identificata solo a mezzo della ragione sociale, mentre l'ispettore solo tramite identificativo_persona_generica dove si compila il CF
                         l'esito positivo dell'ispezione viene indicato con esito_ipezione=1

source <xs:complexType name="ispezione">
  <xs:annotation>
    <xs:documentation>
                         questo elemento contiene i dati dell'ispezione a cura dell'autorità competente o organismo esterno
                         tale autorità viene identificata solo a mezzo della ragione sociale, mentre l'ispettore solo tramite identificativo_persona_generica dove si compila il CF
                         l'esito positivo dell'ispezione viene indicato con esito_ipezione=1
                </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="L13flagEsitoIspezione" type="xs:boolean" minOccurs="0"/>
    <xs:element name="L13dataIspezione" type="data" minOccurs="0"/>
    <xs:element name="L13ispettore" type="persona_fisica" minOccurs="0"/>
    <xs:element name="L13nomeAutoritaCompetente" type="xs:string" minOccurs="0"/>
    <xs:element name="L13noteIspezione" type="xs:string" minOccurs="0"/>
    <xs:element name="L13numeroRapportoProva" type="xs:string" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element ispezione/L13flagEsitoIspezione
diagram libretto_diagrams/libretto_p254.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L13flagEsitoIspezione" type="xs:boolean" minOccurs="0"/>

element ispezione/L13dataIspezione
diagram libretto_diagrams/libretto_p255.png
namespace libretto
type data
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1900-01-01
maxInclusive 2100-12-31
source <xs:element name="L13dataIspezione" type="data" minOccurs="0"/>

element ispezione/L13ispettore
diagram libretto_diagrams/libretto_p256.png
namespace libretto
type persona_fisica
properties
minOcc 0
maxOcc 1
content complex
children nome cognome codice_fiscale
source <xs:element name="L13ispettore" type="persona_fisica" minOccurs="0"/>

element ispezione/L13nomeAutoritaCompetente
diagram libretto_diagrams/libretto_p257.png
namespace libretto
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L13nomeAutoritaCompetente" type="xs:string" minOccurs="0"/>

element ispezione/L13noteIspezione
diagram libretto_diagrams/libretto_p258.png
namespace libretto
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L13noteIspezione" type="xs:string" minOccurs="0"/>

element ispezione/L13numeroRapportoProva
diagram libretto_diagrams/libretto_p259.png
namespace libretto
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L13numeroRapportoProva" type="xs:string" minOccurs="0"/>

complexType persona_fisica
diagram libretto_diagrams/libretto_p260.png
namespace libretto
children nome cognome codice_fiscale
used by
elements row11_1/L11_1tecnico row11_2/L11_2tecnico row11_3/L11_3tecnico row11_4/L11_4tecnico ispezione/L13ispettore persona_generica/persona_fisica
source <xs:complexType name="persona_fisica">
  <xs:sequence>
    <xs:element name="nome" type="xs:string" minOccurs="0"/>
    <xs:element name="cognome" type="xs:string" minOccurs="0"/>
    <xs:element name="codice_fiscale" type="codice_fiscale"/>
  </xs:sequence>
</xs:complexType>

element persona_fisica/nome
diagram libretto_diagrams/libretto_p261.png
namespace libretto
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="nome" type="xs:string" minOccurs="0"/>

element persona_fisica/cognome
diagram libretto_diagrams/libretto_p262.png
namespace libretto
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="cognome" type="xs:string" minOccurs="0"/>

element persona_fisica/codice_fiscale
diagram libretto_diagrams/libretto_p263.png
namespace libretto
type codice_fiscale
properties
content simple
facets
Kind Value Annotation
pattern [0-9]{11}
pattern [A-Z]{6}[0-9LMNPQRSTUV]{2}[ABCDEHLMPRST][0-9LMNPQRSTUV]{2}[A-Z][0-9LMNPQRSTUV]{3}[A-Z]
source <xs:element name="codice_fiscale" type="codice_fiscale"/>

complexType persona_generica
diagram libretto_diagrams/libretto_p264.png
namespace libretto
children persona_fisica persona_giuridica
used by
elements impianto/scheda_1_dati_identificativi_impianto/L1_6responsabile impianto/scheda_3_terzo_responsabile/terzo_responsabile/L3_nominante
source <xs:complexType name="persona_generica">
  <xs:choice>
    <xs:element name="persona_fisica" type="persona_fisica"/>
    <xs:element name="persona_giuridica" type="persona_giuridica"/>
  </xs:choice>
</xs:complexType>

element persona_generica/persona_fisica
diagram libretto_diagrams/libretto_p265.png
namespace libretto
type persona_fisica
properties
content complex
children nome cognome codice_fiscale
source <xs:element name="persona_fisica" type="persona_fisica"/>

element persona_generica/persona_giuridica
diagram libretto_diagrams/libretto_p266.png
namespace libretto
type persona_giuridica
properties
content complex
children ragione_sociale partita_IVA
source <xs:element name="persona_giuridica" type="persona_giuridica"/>

complexType persona_giuridica
diagram libretto_diagrams/libretto_p267.png
namespace libretto
children ragione_sociale partita_IVA
used by
elements impianto/scheda_12_interventi_CEE/interventi_CEE/L12ditta impianto/scheda_3_terzo_responsabile/terzo_responsabile/L3_nominato persona_generica/persona_giuridica
source <xs:complexType name="persona_giuridica">
  <xs:sequence>
    <xs:element name="ragione_sociale" type="xs:string" minOccurs="0"/>
    <xs:element name="partita_IVA" type="partita_IVA"/>
  </xs:sequence>
</xs:complexType>

element persona_giuridica/ragione_sociale
diagram libretto_diagrams/libretto_p268.png
namespace libretto
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="ragione_sociale" type="xs:string" minOccurs="0"/>

element persona_giuridica/partita_IVA
diagram libretto_diagrams/libretto_p269.png
namespace libretto
type partita_IVA
properties
content simple
facets
Kind Value Annotation
length 11
pattern [0-9]{11}
source <xs:element name="partita_IVA" type="partita_IVA"/>

complexType REA
diagram libretto_diagrams/libretto_p270.png
namespace libretto
children Sigla_Localita_Impresa numero_REA
used by
elements impianto/scheda_12_interventi_CEE/interventi_CEE/L12REA unitaimmobiliare/intestazione_termica/L1_2REA_PDR unitaimmobiliare/intestazione_elettrica/L1_2REA_POD impianto/scheda_3_terzo_responsabile/terzo_responsabile/L3_nominato_REA
annotation
documentation
il numero REA è composto dalla sigla di 2 caratteri riguardandi la località e un codice numerico a 6 cifre
source <xs:complexType name="REA">
  <xs:annotation>
    <xs:documentation>il numero REA è composto dalla sigla di 2 caratteri riguardandi la località e un codice numerico a 6 cifre</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="Sigla_Localita_Impresa" type="codice_provincia" minOccurs="0"/>
    <xs:element name="numero_REA" type="numero_REA" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element REA/Sigla_Localita_Impresa
diagram libretto_diagrams/libretto_p271.png
namespace libretto
type codice_provincia
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
pattern [A-Z]{2}
source <xs:element name="Sigla_Localita_Impresa" type="codice_provincia" minOccurs="0"/>

element REA/numero_REA
diagram libretto_diagrams/libretto_p272.png
namespace libretto
type numero_REA
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
pattern [0-9]{6}
source <xs:element name="numero_REA" type="numero_REA" minOccurs="0"/>

complexType row11_1
diagram libretto_diagrams/libretto_p273.png
namespace libretto
children L11_1data L11_1moduloTermico L11_1portataTermicaEffettiva L11_1combustibile L11_1tempFumi L11_1tempAria L11_1O2 L11_1CO2 L11_1bacharach1 L11_1bacharach2 L11_1bacharach3 L11_1COfumiSecchi L11_1portataCombustibile L11_1valorePortata L11_1COfumiSecchiSenzaAria L11_1rendimCombustione L11_1flagRispettoIndBacharach L11_1flagRispettoLimiteCOfumiSecchi L11_1rendimentoLegge L11_1flagRispettoRendimentoMinimo L11_1nox L11_1tecnico
used by
element impianto/scheda_11_1_VerificaGruppiTermici/VerificaGruppiTermici/row11_1
annotation
documentation

                dati della verifica tipo 1, il dato dell'NOX è opzionale

source <xs:complexType name="row11_1">
  <xs:annotation>
    <xs:documentation>
                dati della verifica tipo 1, il dato dell'NOX è opzionale
            </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="L11_1data" type="data" minOccurs="0"/>
    <xs:element name="L11_1moduloTermico" type="xs:integer" minOccurs="0"/>
    <xs:element name="L11_1portataTermicaEffettiva" type="decimale1" minOccurs="0"/>
    <xs:element name="L11_1combustibile" type="combustibile" minOccurs="0"/>
    <xs:element name="L11_1tempFumi" type="decimale1" minOccurs="0"/>
    <xs:element name="L11_1tempAria" type="decimale1" minOccurs="0"/>
    <xs:element name="L11_1O2" type="decimale1" minOccurs="0"/>
    <xs:element name="L11_1CO2" type="decimale1" minOccurs="0"/>
    <xs:element name="L11_1bacharach1" type="xs:integer" minOccurs="0"/>
    <xs:element name="L11_1bacharach2" type="xs:integer" minOccurs="0"/>
    <xs:element name="L11_1bacharach3" type="xs:integer" minOccurs="0"/>
    <xs:element name="L11_1COfumiSecchi" type="xs:integer" minOccurs="0"/>
    <xs:element name="L11_1portataCombustibile" type="portata" minOccurs="0"/>
    <xs:element name="L11_1valorePortata" type="decimale1" minOccurs="0"/>
    <xs:element name="L11_1COfumiSecchiSenzaAria" type="xs:integer" minOccurs="0"/>
    <xs:element name="L11_1rendimCombustione" type="rendimento" minOccurs="0"/>
    <xs:element name="L11_1flagRispettoIndBacharach" type="xs:boolean" minOccurs="0"/>
    <xs:element name="L11_1flagRispettoLimiteCOfumiSecchi" type="xs:boolean" minOccurs="0"/>
    <xs:element name="L11_1rendimentoLegge" type="rendimento" minOccurs="0"/>
    <xs:element name="L11_1flagRispettoRendimentoMinimo" type="xs:boolean" minOccurs="0"/>
    <xs:element name="L11_1nox" type="decimale1" minOccurs="0"/>
    <xs:element name="L11_1tecnico" type="persona_fisica" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element row11_1/L11_1data
diagram libretto_diagrams/libretto_p274.png
namespace libretto
type data
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1900-01-01
maxInclusive 2100-12-31
source <xs:element name="L11_1data" type="data" minOccurs="0"/>

element row11_1/L11_1moduloTermico
diagram libretto_diagrams/libretto_p275.png
namespace libretto
type xs:integer
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L11_1moduloTermico" type="xs:integer" minOccurs="0"/>

element row11_1/L11_1portataTermicaEffettiva
diagram libretto_diagrams/libretto_p276.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L11_1portataTermicaEffettiva" type="decimale1" minOccurs="0"/>

element row11_1/L11_1combustibile
diagram libretto_diagrams/libretto_p277.png
namespace libretto
type combustibile
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1
maxInclusive 24
source <xs:element name="L11_1combustibile" type="combustibile" minOccurs="0"/>

element row11_1/L11_1tempFumi
diagram libretto_diagrams/libretto_p278.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L11_1tempFumi" type="decimale1" minOccurs="0"/>

element row11_1/L11_1tempAria
diagram libretto_diagrams/libretto_p279.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L11_1tempAria" type="decimale1" minOccurs="0"/>

element row11_1/L11_1O2
diagram libretto_diagrams/libretto_p280.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L11_1O2" type="decimale1" minOccurs="0"/>

element row11_1/L11_1CO2
diagram libretto_diagrams/libretto_p281.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L11_1CO2" type="decimale1" minOccurs="0"/>

element row11_1/L11_1bacharach1
diagram libretto_diagrams/libretto_p282.png
namespace libretto
type xs:integer
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L11_1bacharach1" type="xs:integer" minOccurs="0"/>

element row11_1/L11_1bacharach2
diagram libretto_diagrams/libretto_p283.png
namespace libretto
type xs:integer
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L11_1bacharach2" type="xs:integer" minOccurs="0"/>

element row11_1/L11_1bacharach3
diagram libretto_diagrams/libretto_p284.png
namespace libretto
type xs:integer
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L11_1bacharach3" type="xs:integer" minOccurs="0"/>

element row11_1/L11_1COfumiSecchi
diagram libretto_diagrams/libretto_p285.png
namespace libretto
type xs:integer
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L11_1COfumiSecchi" type="xs:integer" minOccurs="0"/>

element row11_1/L11_1portataCombustibile
diagram libretto_diagrams/libretto_p286.png
namespace libretto
type portata
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1
maxInclusive 2
source <xs:element name="L11_1portataCombustibile" type="portata" minOccurs="0"/>

element row11_1/L11_1valorePortata
diagram libretto_diagrams/libretto_p287.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L11_1valorePortata" type="decimale1" minOccurs="0"/>

element row11_1/L11_1COfumiSecchiSenzaAria
diagram libretto_diagrams/libretto_p288.png
namespace libretto
type xs:integer
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L11_1COfumiSecchiSenzaAria" type="xs:integer" minOccurs="0"/>

element row11_1/L11_1rendimCombustione
diagram libretto_diagrams/libretto_p289.png
namespace libretto
type rendimento
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 0.0
maxInclusive 200.0
fractionDigits 1
source <xs:element name="L11_1rendimCombustione" type="rendimento" minOccurs="0"/>

element row11_1/L11_1flagRispettoIndBacharach
diagram libretto_diagrams/libretto_p290.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L11_1flagRispettoIndBacharach" type="xs:boolean" minOccurs="0"/>

element row11_1/L11_1flagRispettoLimiteCOfumiSecchi
diagram libretto_diagrams/libretto_p291.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L11_1flagRispettoLimiteCOfumiSecchi" type="xs:boolean" minOccurs="0"/>

element row11_1/L11_1rendimentoLegge
diagram libretto_diagrams/libretto_p292.png
namespace libretto
type rendimento
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 0.0
maxInclusive 200.0
fractionDigits 1
source <xs:element name="L11_1rendimentoLegge" type="rendimento" minOccurs="0"/>

element row11_1/L11_1flagRispettoRendimentoMinimo
diagram libretto_diagrams/libretto_p293.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L11_1flagRispettoRendimentoMinimo" type="xs:boolean" minOccurs="0"/>

element row11_1/L11_1nox
diagram libretto_diagrams/libretto_p294.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L11_1nox" type="decimale1" minOccurs="0"/>

element row11_1/L11_1tecnico
diagram libretto_diagrams/libretto_p295.png
namespace libretto
type persona_fisica
properties
minOcc 0
maxOcc 1
content complex
children nome cognome codice_fiscale
source <xs:element name="L11_1tecnico" type="persona_fisica" minOccurs="0"/>

complexType row11_2
diagram libretto_diagrams/libretto_p296.png
namespace libretto
children L11_2data L11_2flagAssenzaPerdite L11_2flagRaffrescamento L11_2flagRiscaldamento L11_2numCircuito L11_2surrisc L11_2tSottoRaffr L11_2tCondens L11_2tEvaporaz L11_2tIngLatoEst L11_2tUscLatoEst L11_2tIngLatoUtenze L11_2tUscLatoUtenze L11_2tUscFluido L11_2tBulboUmido L11_2tIngFluidoSorg L11_2tUscFluidoSorg L11_2tIngFluidoMacc L11_2tUscFluidoMacc L11_2potenzaAss L11_2flagFiltriPuliti L11_2flagVerificaSuperata L11_2dataRipristino L11_2tecnico
used by
element impianto/scheda_11_2_VerificaGruppiFrigo/VerificaGruppiFrigo/row11_2
annotation
documentation

                dati della verifica tipo 2

source <xs:complexType name="row11_2">
  <xs:annotation>
    <xs:documentation>
                dati della verifica tipo 2
            </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="L11_2data" type="data" minOccurs="0"/>
    <xs:element name="L11_2flagAssenzaPerdite" type="xs:boolean" minOccurs="0"/>
    <xs:element name="L11_2flagRaffrescamento" type="xs:boolean" minOccurs="0"/>
    <xs:element name="L11_2flagRiscaldamento" type="xs:boolean" minOccurs="0"/>
    <xs:element name="L11_2numCircuito" type="xs:integer" minOccurs="0"/>
    <xs:element name="L11_2surrisc" type="decimale1" minOccurs="0"/>
    <xs:element name="L11_2tSottoRaffr" type="decimale1" minOccurs="0"/>
    <xs:element name="L11_2tCondens" type="decimale1" minOccurs="0"/>
    <xs:element name="L11_2tEvaporaz" type="decimale1" minOccurs="0"/>
    <xs:element name="L11_2tIngLatoEst" type="decimale1" minOccurs="0"/>
    <xs:element name="L11_2tUscLatoEst" type="decimale1" minOccurs="0"/>
    <xs:element name="L11_2tIngLatoUtenze" type="decimale1" minOccurs="0"/>
    <xs:element name="L11_2tUscLatoUtenze" type="decimale1" minOccurs="0"/>
    <xs:element name="L11_2tUscFluido" type="decimale1" minOccurs="0"/>
    <xs:element name="L11_2tBulboUmido" type="decimale1" minOccurs="0"/>
    <xs:element name="L11_2tIngFluidoSorg" type="decimale1" minOccurs="0"/>
    <xs:element name="L11_2tUscFluidoSorg" type="decimale1" minOccurs="0"/>
    <xs:element name="L11_2tIngFluidoMacc" type="decimale1" minOccurs="0"/>
    <xs:element name="L11_2tUscFluidoMacc" type="decimale1" minOccurs="0"/>
    <xs:element name="L11_2potenzaAss" type="decimale1" minOccurs="0"/>
    <xs:element name="L11_2flagFiltriPuliti" type="xs:boolean" minOccurs="0"/>
    <xs:element name="L11_2flagVerificaSuperata" type="xs:boolean" minOccurs="0"/>
    <xs:element name="L11_2dataRipristino" type="data" minOccurs="0"/>
    <xs:element name="L11_2tecnico" type="persona_fisica" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element row11_2/L11_2data
diagram libretto_diagrams/libretto_p297.png
namespace libretto
type data
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1900-01-01
maxInclusive 2100-12-31
source <xs:element name="L11_2data" type="data" minOccurs="0"/>

element row11_2/L11_2flagAssenzaPerdite
diagram libretto_diagrams/libretto_p298.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L11_2flagAssenzaPerdite" type="xs:boolean" minOccurs="0"/>

element row11_2/L11_2flagRaffrescamento
diagram libretto_diagrams/libretto_p299.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L11_2flagRaffrescamento" type="xs:boolean" minOccurs="0"/>

element row11_2/L11_2flagRiscaldamento
diagram libretto_diagrams/libretto_p300.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L11_2flagRiscaldamento" type="xs:boolean" minOccurs="0"/>

element row11_2/L11_2numCircuito
diagram libretto_diagrams/libretto_p301.png
namespace libretto
type xs:integer
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L11_2numCircuito" type="xs:integer" minOccurs="0"/>

element row11_2/L11_2surrisc
diagram libretto_diagrams/libretto_p302.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L11_2surrisc" type="decimale1" minOccurs="0"/>

element row11_2/L11_2tSottoRaffr
diagram libretto_diagrams/libretto_p303.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L11_2tSottoRaffr" type="decimale1" minOccurs="0"/>

element row11_2/L11_2tCondens
diagram libretto_diagrams/libretto_p304.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L11_2tCondens" type="decimale1" minOccurs="0"/>

element row11_2/L11_2tEvaporaz
diagram libretto_diagrams/libretto_p305.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L11_2tEvaporaz" type="decimale1" minOccurs="0"/>

element row11_2/L11_2tIngLatoEst
diagram libretto_diagrams/libretto_p306.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L11_2tIngLatoEst" type="decimale1" minOccurs="0"/>

element row11_2/L11_2tUscLatoEst
diagram libretto_diagrams/libretto_p307.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L11_2tUscLatoEst" type="decimale1" minOccurs="0"/>

element row11_2/L11_2tIngLatoUtenze
diagram libretto_diagrams/libretto_p308.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L11_2tIngLatoUtenze" type="decimale1" minOccurs="0"/>

element row11_2/L11_2tUscLatoUtenze
diagram libretto_diagrams/libretto_p309.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L11_2tUscLatoUtenze" type="decimale1" minOccurs="0"/>

element row11_2/L11_2tUscFluido
diagram libretto_diagrams/libretto_p310.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L11_2tUscFluido" type="decimale1" minOccurs="0"/>

element row11_2/L11_2tBulboUmido
diagram libretto_diagrams/libretto_p311.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L11_2tBulboUmido" type="decimale1" minOccurs="0"/>

element row11_2/L11_2tIngFluidoSorg
diagram libretto_diagrams/libretto_p312.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L11_2tIngFluidoSorg" type="decimale1" minOccurs="0"/>

element row11_2/L11_2tUscFluidoSorg
diagram libretto_diagrams/libretto_p313.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L11_2tUscFluidoSorg" type="decimale1" minOccurs="0"/>

element row11_2/L11_2tIngFluidoMacc
diagram libretto_diagrams/libretto_p314.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L11_2tIngFluidoMacc" type="decimale1" minOccurs="0"/>

element row11_2/L11_2tUscFluidoMacc
diagram libretto_diagrams/libretto_p315.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L11_2tUscFluidoMacc" type="decimale1" minOccurs="0"/>

element row11_2/L11_2potenzaAss
diagram libretto_diagrams/libretto_p316.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L11_2potenzaAss" type="decimale1" minOccurs="0"/>

element row11_2/L11_2flagFiltriPuliti
diagram libretto_diagrams/libretto_p317.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L11_2flagFiltriPuliti" type="xs:boolean" minOccurs="0"/>

element row11_2/L11_2flagVerificaSuperata
diagram libretto_diagrams/libretto_p318.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L11_2flagVerificaSuperata" type="xs:boolean" minOccurs="0"/>

element row11_2/L11_2dataRipristino
diagram libretto_diagrams/libretto_p319.png
namespace libretto
type data
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1900-01-01
maxInclusive 2100-12-31
source <xs:element name="L11_2dataRipristino" type="data" minOccurs="0"/>

element row11_2/L11_2tecnico
diagram libretto_diagrams/libretto_p320.png
namespace libretto
type persona_fisica
properties
minOcc 0
maxOcc 1
content complex
children nome cognome codice_fiscale
source <xs:element name="L11_2tecnico" type="persona_fisica" minOccurs="0"/>

complexType row11_3
diagram libretto_diagrams/libretto_p321.png
namespace libretto
children L11_3data L11_3tempEsterna L11_3tempMandPrimario L11_3tempRitPrimario L11_3tempMandSecond L11_3tempRitSecond L11_3portataFluidoPrim L11_3potTermica L11_3flagPotenzaCompatibile L11_3flagStatoCoibentazioni L11_3flagDispositiviRegolazione L11_3tecnico
used by
element impianto/scheda_11_3_VerificaScambiatoreCalore/VerificaScambiatoreCalore/row11_3
annotation
documentation

                dati della verifica tipo 3

source <xs:complexType name="row11_3">
  <xs:annotation>
    <xs:documentation>
                dati della verifica tipo 3
                </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="L11_3data" type="data" minOccurs="0"/>
    <xs:element name="L11_3tempEsterna" type="decimale1" minOccurs="0"/>
    <xs:element name="L11_3tempMandPrimario" type="decimale1" minOccurs="0"/>
    <xs:element name="L11_3tempRitPrimario" type="decimale1" minOccurs="0"/>
    <xs:element name="L11_3tempMandSecond" type="decimale1" minOccurs="0"/>
    <xs:element name="L11_3tempRitSecond" type="decimale1" minOccurs="0"/>
    <xs:element name="L11_3portataFluidoPrim" type="decimale1" minOccurs="0"/>
    <xs:element name="L11_3potTermica" type="decimale1" minOccurs="0"/>
    <xs:element name="L11_3flagPotenzaCompatibile" type="controllo_compatibilita" minOccurs="0"/>
    <xs:element name="L11_3flagStatoCoibentazioni" type="controllo_compatibilita" minOccurs="0"/>
    <xs:element name="L11_3flagDispositiviRegolazione" type="controllo_compatibilita" minOccurs="0"/>
    <xs:element name="L11_3tecnico" type="persona_fisica" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element row11_3/L11_3data
diagram libretto_diagrams/libretto_p322.png
namespace libretto
type data
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1900-01-01
maxInclusive 2100-12-31
source <xs:element name="L11_3data" type="data" minOccurs="0"/>

element row11_3/L11_3tempEsterna
diagram libretto_diagrams/libretto_p323.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L11_3tempEsterna" type="decimale1" minOccurs="0"/>

element row11_3/L11_3tempMandPrimario
diagram libretto_diagrams/libretto_p324.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L11_3tempMandPrimario" type="decimale1" minOccurs="0"/>

element row11_3/L11_3tempRitPrimario
diagram libretto_diagrams/libretto_p325.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L11_3tempRitPrimario" type="decimale1" minOccurs="0"/>

element row11_3/L11_3tempMandSecond
diagram libretto_diagrams/libretto_p326.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L11_3tempMandSecond" type="decimale1" minOccurs="0"/>

element row11_3/L11_3tempRitSecond
diagram libretto_diagrams/libretto_p327.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L11_3tempRitSecond" type="decimale1" minOccurs="0"/>

element row11_3/L11_3portataFluidoPrim
diagram libretto_diagrams/libretto_p328.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L11_3portataFluidoPrim" type="decimale1" minOccurs="0"/>

element row11_3/L11_3potTermica
diagram libretto_diagrams/libretto_p329.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L11_3potTermica" type="decimale1" minOccurs="0"/>

element row11_3/L11_3flagPotenzaCompatibile
diagram libretto_diagrams/libretto_p330.png
namespace libretto
type controllo_compatibilita
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1
maxInclusive 4
source <xs:element name="L11_3flagPotenzaCompatibile" type="controllo_compatibilita" minOccurs="0"/>

element row11_3/L11_3flagStatoCoibentazioni
diagram libretto_diagrams/libretto_p331.png
namespace libretto
type controllo_compatibilita
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1
maxInclusive 4
source <xs:element name="L11_3flagStatoCoibentazioni" type="controllo_compatibilita" minOccurs="0"/>

element row11_3/L11_3flagDispositiviRegolazione
diagram libretto_diagrams/libretto_p332.png
namespace libretto
type controllo_compatibilita
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1
maxInclusive 4
source <xs:element name="L11_3flagDispositiviRegolazione" type="controllo_compatibilita" minOccurs="0"/>

element row11_3/L11_3tecnico
diagram libretto_diagrams/libretto_p333.png
namespace libretto
type persona_fisica
properties
minOcc 0
maxOcc 1
content complex
children nome cognome codice_fiscale
source <xs:element name="L11_3tecnico" type="persona_fisica" minOccurs="0"/>

complexType row11_4
diagram libretto_diagrams/libretto_p334.png
namespace libretto
children L11_4data L11_4tempAriaComb L11_4tempH2Ouscita L11_4tempH2Oingresso L11_4tempH2Omotore L11_4tempFumiValle L11_4tempFumiMonte L11_4potElettricaMorsetti L11_4emissioniCO L11_4sovraFreqSoglia1 L11_4sovraFreqSoglia2 L11_4sovraFreqSoglia3 L11_4sovraFreqTempo1 L11_4sovraFreqTempo2 L11_4sovraFreqTempo3 L11_4sottoFreqSoglia1 L11_4sottoFreqSoglia2 L11_4sottoFreqSoglia3 L11_4sottoFreqTempo1 L11_4sottoFreqTempo2 L11_4sottoFreqTempo3 L11_4sovraTensSoglia1 L11_4sovraTensSoglia2 L11_4sovraTensSoglia3 L11_4sovraTensTempo1 L11_4sovraTensTempo2 L11_4sovraTensTempo3 L11_4sottoTensSoglia1 L11_4sottoTensSoglia2 L11_4sottoTensSoglia3 L11_4sottoTensTempo1 L11_4sottoTensTempo2 L11_4sottoTensTempo3 L11_4tecnico
used by
element impianto/scheda_11_4_VerificaCogeneratoriTrigeneratori/VerificaCogeneratoriTrigeneratori/row11_4
annotation
documentation

                dati della verifica tipo 4

source <xs:complexType name="row11_4">
  <xs:annotation>
    <xs:documentation>
                dati della verifica tipo 4
                </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="L11_4data" type="data" minOccurs="0"/>
    <xs:element name="L11_4tempAriaComb" type="decimale1" minOccurs="0"/>
    <xs:element name="L11_4tempH2Ouscita" type="decimale1" minOccurs="0"/>
    <xs:element name="L11_4tempH2Oingresso" type="decimale1" minOccurs="0"/>
    <xs:element name="L11_4tempH2Omotore" type="decimale1" minOccurs="0"/>
    <xs:element name="L11_4tempFumiValle" type="decimale1" minOccurs="0"/>
    <xs:element name="L11_4tempFumiMonte" type="decimale1" minOccurs="0"/>
    <xs:element name="L11_4potElettricaMorsetti" type="decimale1" minOccurs="0"/>
    <xs:element name="L11_4emissioniCO" type="decimale1" minOccurs="0"/>
    <xs:element name="L11_4sovraFreqSoglia1" type="xs:integer" minOccurs="0"/>
    <xs:element name="L11_4sovraFreqSoglia2" type="xs:integer" minOccurs="0"/>
    <xs:element name="L11_4sovraFreqSoglia3" type="xs:integer" minOccurs="0"/>
    <xs:element name="L11_4sovraFreqTempo1" type="xs:integer" minOccurs="0"/>
    <xs:element name="L11_4sovraFreqTempo2" type="xs:integer" minOccurs="0"/>
    <xs:element name="L11_4sovraFreqTempo3" type="xs:integer" minOccurs="0"/>
    <xs:element name="L11_4sottoFreqSoglia1" type="xs:integer" minOccurs="0"/>
    <xs:element name="L11_4sottoFreqSoglia2" type="xs:integer" minOccurs="0"/>
    <xs:element name="L11_4sottoFreqSoglia3" type="xs:integer" minOccurs="0"/>
    <xs:element name="L11_4sottoFreqTempo1" type="xs:integer" minOccurs="0"/>
    <xs:element name="L11_4sottoFreqTempo2" type="xs:integer" minOccurs="0"/>
    <xs:element name="L11_4sottoFreqTempo3" type="xs:integer" minOccurs="0"/>
    <xs:element name="L11_4sovraTensSoglia1" type="xs:integer" minOccurs="0"/>
    <xs:element name="L11_4sovraTensSoglia2" type="xs:integer" minOccurs="0"/>
    <xs:element name="L11_4sovraTensSoglia3" type="xs:integer" minOccurs="0"/>
    <xs:element name="L11_4sovraTensTempo1" type="xs:integer" minOccurs="0"/>
    <xs:element name="L11_4sovraTensTempo2" type="xs:integer" minOccurs="0"/>
    <xs:element name="L11_4sovraTensTempo3" type="xs:integer" minOccurs="0"/>
    <xs:element name="L11_4sottoTensSoglia1" type="xs:integer" minOccurs="0"/>
    <xs:element name="L11_4sottoTensSoglia2" type="xs:integer" minOccurs="0"/>
    <xs:element name="L11_4sottoTensSoglia3" type="xs:integer" minOccurs="0"/>
    <xs:element name="L11_4sottoTensTempo1" type="xs:integer" minOccurs="0"/>
    <xs:element name="L11_4sottoTensTempo2" type="xs:integer" minOccurs="0"/>
    <xs:element name="L11_4sottoTensTempo3" type="xs:integer" minOccurs="0"/>
    <xs:element name="L11_4tecnico" type="persona_fisica" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element row11_4/L11_4data
diagram libretto_diagrams/libretto_p335.png
namespace libretto
type data
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1900-01-01
maxInclusive 2100-12-31
source <xs:element name="L11_4data" type="data" minOccurs="0"/>

element row11_4/L11_4tempAriaComb
diagram libretto_diagrams/libretto_p336.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L11_4tempAriaComb" type="decimale1" minOccurs="0"/>

element row11_4/L11_4tempH2Ouscita
diagram libretto_diagrams/libretto_p337.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L11_4tempH2Ouscita" type="decimale1" minOccurs="0"/>

element row11_4/L11_4tempH2Oingresso
diagram libretto_diagrams/libretto_p338.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L11_4tempH2Oingresso" type="decimale1" minOccurs="0"/>

element row11_4/L11_4tempH2Omotore
diagram libretto_diagrams/libretto_p339.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L11_4tempH2Omotore" type="decimale1" minOccurs="0"/>

element row11_4/L11_4tempFumiValle
diagram libretto_diagrams/libretto_p340.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L11_4tempFumiValle" type="decimale1" minOccurs="0"/>

element row11_4/L11_4tempFumiMonte
diagram libretto_diagrams/libretto_p341.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L11_4tempFumiMonte" type="decimale1" minOccurs="0"/>

element row11_4/L11_4potElettricaMorsetti
diagram libretto_diagrams/libretto_p342.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L11_4potElettricaMorsetti" type="decimale1" minOccurs="0"/>

element row11_4/L11_4emissioniCO
diagram libretto_diagrams/libretto_p343.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L11_4emissioniCO" type="decimale1" minOccurs="0"/>

element row11_4/L11_4sovraFreqSoglia1
diagram libretto_diagrams/libretto_p344.png
namespace libretto
type xs:integer
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L11_4sovraFreqSoglia1" type="xs:integer" minOccurs="0"/>

element row11_4/L11_4sovraFreqSoglia2
diagram libretto_diagrams/libretto_p345.png
namespace libretto
type xs:integer
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L11_4sovraFreqSoglia2" type="xs:integer" minOccurs="0"/>

element row11_4/L11_4sovraFreqSoglia3
diagram libretto_diagrams/libretto_p346.png
namespace libretto
type xs:integer
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L11_4sovraFreqSoglia3" type="xs:integer" minOccurs="0"/>

element row11_4/L11_4sovraFreqTempo1
diagram libretto_diagrams/libretto_p347.png
namespace libretto
type xs:integer
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L11_4sovraFreqTempo1" type="xs:integer" minOccurs="0"/>

element row11_4/L11_4sovraFreqTempo2
diagram libretto_diagrams/libretto_p348.png
namespace libretto
type xs:integer
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L11_4sovraFreqTempo2" type="xs:integer" minOccurs="0"/>

element row11_4/L11_4sovraFreqTempo3
diagram libretto_diagrams/libretto_p349.png
namespace libretto
type xs:integer
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L11_4sovraFreqTempo3" type="xs:integer" minOccurs="0"/>

element row11_4/L11_4sottoFreqSoglia1
diagram libretto_diagrams/libretto_p350.png
namespace libretto
type xs:integer
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L11_4sottoFreqSoglia1" type="xs:integer" minOccurs="0"/>

element row11_4/L11_4sottoFreqSoglia2
diagram libretto_diagrams/libretto_p351.png
namespace libretto
type xs:integer
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L11_4sottoFreqSoglia2" type="xs:integer" minOccurs="0"/>

element row11_4/L11_4sottoFreqSoglia3
diagram libretto_diagrams/libretto_p352.png
namespace libretto
type xs:integer
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L11_4sottoFreqSoglia3" type="xs:integer" minOccurs="0"/>

element row11_4/L11_4sottoFreqTempo1
diagram libretto_diagrams/libretto_p353.png
namespace libretto
type xs:integer
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L11_4sottoFreqTempo1" type="xs:integer" minOccurs="0"/>

element row11_4/L11_4sottoFreqTempo2
diagram libretto_diagrams/libretto_p354.png
namespace libretto
type xs:integer
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L11_4sottoFreqTempo2" type="xs:integer" minOccurs="0"/>

element row11_4/L11_4sottoFreqTempo3
diagram libretto_diagrams/libretto_p355.png
namespace libretto
type xs:integer
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L11_4sottoFreqTempo3" type="xs:integer" minOccurs="0"/>

element row11_4/L11_4sovraTensSoglia1
diagram libretto_diagrams/libretto_p356.png
namespace libretto
type xs:integer
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L11_4sovraTensSoglia1" type="xs:integer" minOccurs="0"/>

element row11_4/L11_4sovraTensSoglia2
diagram libretto_diagrams/libretto_p357.png
namespace libretto
type xs:integer
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L11_4sovraTensSoglia2" type="xs:integer" minOccurs="0"/>

element row11_4/L11_4sovraTensSoglia3
diagram libretto_diagrams/libretto_p358.png
namespace libretto
type xs:integer
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L11_4sovraTensSoglia3" type="xs:integer" minOccurs="0"/>

element row11_4/L11_4sovraTensTempo1
diagram libretto_diagrams/libretto_p359.png
namespace libretto
type xs:integer
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L11_4sovraTensTempo1" type="xs:integer" minOccurs="0"/>

element row11_4/L11_4sovraTensTempo2
diagram libretto_diagrams/libretto_p360.png
namespace libretto
type xs:integer
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L11_4sovraTensTempo2" type="xs:integer" minOccurs="0"/>

element row11_4/L11_4sovraTensTempo3
diagram libretto_diagrams/libretto_p361.png
namespace libretto
type xs:integer
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L11_4sovraTensTempo3" type="xs:integer" minOccurs="0"/>

element row11_4/L11_4sottoTensSoglia1
diagram libretto_diagrams/libretto_p362.png
namespace libretto
type xs:integer
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L11_4sottoTensSoglia1" type="xs:integer" minOccurs="0"/>

element row11_4/L11_4sottoTensSoglia2
diagram libretto_diagrams/libretto_p363.png
namespace libretto
type xs:integer
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L11_4sottoTensSoglia2" type="xs:integer" minOccurs="0"/>

element row11_4/L11_4sottoTensSoglia3
diagram libretto_diagrams/libretto_p364.png
namespace libretto
type xs:integer
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L11_4sottoTensSoglia3" type="xs:integer" minOccurs="0"/>

element row11_4/L11_4sottoTensTempo1
diagram libretto_diagrams/libretto_p365.png
namespace libretto
type xs:integer
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L11_4sottoTensTempo1" type="xs:integer" minOccurs="0"/>

element row11_4/L11_4sottoTensTempo2
diagram libretto_diagrams/libretto_p366.png
namespace libretto
type xs:integer
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L11_4sottoTensTempo2" type="xs:integer" minOccurs="0"/>

element row11_4/L11_4sottoTensTempo3
diagram libretto_diagrams/libretto_p367.png
namespace libretto
type xs:integer
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L11_4sottoTensTempo3" type="xs:integer" minOccurs="0"/>

element row11_4/L11_4tecnico
diagram libretto_diagrams/libretto_p368.png
namespace libretto
type persona_fisica
properties
minOcc 0
maxOcc 1
content complex
children nome cognome codice_fiscale
source <xs:element name="L11_4tecnico" type="persona_fisica" minOccurs="0"/>

complexType rowAC
diagram libretto_diagrams/libretto_p369.png
namespace libretto
children L8_1dataInstallazione L8_1dataDismissione L8_1fabbricante L8_1modello L8_1matricola L8_1capacita L8_1flagACS L8_1flagRiscald L8_1flagRaffresc L8_1flagCoibentSI
used by
element impianto/scheda_8_sistema_accumulo/sistema_accumulo/rowAC
annotation
documentation

                dati del Sistema di accumulo esterno al gruppo termico.

source <xs:complexType name="rowAC">
  <xs:annotation>
    <xs:documentation>
                dati del Sistema di accumulo esterno al gruppo termico.
            </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="L8_1dataInstallazione" type="data" minOccurs="0"/>
    <xs:element name="L8_1dataDismissione" type="data" minOccurs="0"/>
    <xs:element name="L8_1fabbricante" type="fabbricante" minOccurs="0"/>
    <xs:element name="L8_1modello" type="xs:string" minOccurs="0"/>
    <xs:element name="L8_1matricola" type="xs:string" minOccurs="0"/>
    <xs:element name="L8_1capacita" type="decimale1" minOccurs="0"/>
    <xs:element name="L8_1flagACS" type="xs:boolean" minOccurs="0"/>
    <xs:element name="L8_1flagRiscald" type="xs:boolean" minOccurs="0"/>
    <xs:element name="L8_1flagRaffresc" type="xs:boolean" minOccurs="0"/>
    <xs:element name="L8_1flagCoibentSI" type="xs:boolean" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element rowAC/L8_1dataInstallazione
diagram libretto_diagrams/libretto_p370.png
namespace libretto
type data
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1900-01-01
maxInclusive 2100-12-31
source <xs:element name="L8_1dataInstallazione" type="data" minOccurs="0"/>

element rowAC/L8_1dataDismissione
diagram libretto_diagrams/libretto_p371.png
namespace libretto
type data
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1900-01-01
maxInclusive 2100-12-31
source <xs:element name="L8_1dataDismissione" type="data" minOccurs="0"/>

element rowAC/L8_1fabbricante
diagram libretto_diagrams/libretto_p372.png
namespace libretto
type fabbricante
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L8_1fabbricante" type="fabbricante" minOccurs="0"/>

element rowAC/L8_1modello
diagram libretto_diagrams/libretto_p373.png
namespace libretto
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L8_1modello" type="xs:string" minOccurs="0"/>

element rowAC/L8_1matricola
diagram libretto_diagrams/libretto_p374.png
namespace libretto
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L8_1matricola" type="xs:string" minOccurs="0"/>

element rowAC/L8_1capacita
diagram libretto_diagrams/libretto_p375.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L8_1capacita" type="decimale1" minOccurs="0"/>

element rowAC/L8_1flagACS
diagram libretto_diagrams/libretto_p376.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L8_1flagACS" type="xs:boolean" minOccurs="0"/>

element rowAC/L8_1flagRiscald
diagram libretto_diagrams/libretto_p377.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L8_1flagRiscald" type="xs:boolean" minOccurs="0"/>

element rowAC/L8_1flagRaffresc
diagram libretto_diagrams/libretto_p378.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L8_1flagRaffresc" type="xs:boolean" minOccurs="0"/>

element rowAC/L8_1flagCoibentSI
diagram libretto_diagrams/libretto_p379.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L8_1flagCoibentSI" type="xs:boolean" minOccurs="0"/>

complexType rowAG
diagram libretto_diagrams/libretto_p380.png
namespace libretto
children L4_8dataInstallazione L4_8dataDismissione L4_8fabbricante L4_8modello L4_8matricola L4_8tipologia L4_8potUtile
used by
element impianto/scheda_4_generatori/altrigeneratori/rowAG
annotation
documentation

dati di altri generatori
source <xs:complexType name="rowAG">
  <xs:annotation>
    <xs:documentation>
dati di altri generatori
</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="L4_8dataInstallazione" type="data" minOccurs="0"/>
    <xs:element name="L4_8dataDismissione" type="data" minOccurs="0"/>
    <xs:element name="L4_8fabbricante" type="fabbricante" minOccurs="0"/>
    <xs:element name="L4_8modello" type="xs:string" minOccurs="0"/>
    <xs:element name="L4_8matricola" type="xs:string"/>
    <xs:element name="L4_8tipologia" type="xs:string" minOccurs="0"/>
    <xs:element name="L4_8potUtile" type="decimale1" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element rowAG/L4_8dataInstallazione
diagram libretto_diagrams/libretto_p381.png
namespace libretto
type data
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1900-01-01
maxInclusive 2100-12-31
source <xs:element name="L4_8dataInstallazione" type="data" minOccurs="0"/>

element rowAG/L4_8dataDismissione
diagram libretto_diagrams/libretto_p382.png
namespace libretto
type data
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1900-01-01
maxInclusive 2100-12-31
source <xs:element name="L4_8dataDismissione" type="data" minOccurs="0"/>

element rowAG/L4_8fabbricante
diagram libretto_diagrams/libretto_p383.png
namespace libretto
type fabbricante
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L4_8fabbricante" type="fabbricante" minOccurs="0"/>

element rowAG/L4_8modello
diagram libretto_diagrams/libretto_p384.png
namespace libretto
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L4_8modello" type="xs:string" minOccurs="0"/>

element rowAG/L4_8matricola
diagram libretto_diagrams/libretto_p385.png
namespace libretto
type xs:string
properties
content simple
source <xs:element name="L4_8matricola" type="xs:string"/>

element rowAG/L4_8tipologia
diagram libretto_diagrams/libretto_p386.png
namespace libretto
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L4_8tipologia" type="xs:string" minOccurs="0"/>

element rowAG/L4_8potUtile
diagram libretto_diagrams/libretto_p387.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L4_8potUtile" type="decimale1" minOccurs="0"/>

complexType rowBR
diagram libretto_diagrams/libretto_p388.png
namespace libretto
children L4_2dataInstallazione L4_2dataDismissione L4_2fabbricante L4_2modello L4_2matricola L4_2tipologia L4_2combustibile L4_2portataTermMaxNom L4_2portataTermMinNom
used by
element rowGT/accessori_gruppotermico_caldaie/sezBR/rowBR
annotation
documentation

                dati del bruciatore collegato al gruppo termico

source <xs:complexType name="rowBR">
  <xs:annotation>
    <xs:documentation>
                dati del bruciatore collegato al gruppo termico
                </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="L4_2dataInstallazione" type="data" minOccurs="0"/>
    <xs:element name="L4_2dataDismissione" type="data" minOccurs="0"/>
    <xs:element name="L4_2fabbricante" type="fabbricante" minOccurs="0"/>
    <xs:element name="L4_2modello" type="xs:string" minOccurs="0"/>
    <xs:element name="L4_2matricola" type="xs:string"/>
    <xs:element name="L4_2tipologia" type="tipo_bruciatore" minOccurs="0"/>
    <xs:element name="L4_2combustibile" type="combustibile" minOccurs="0"/>
    <xs:element name="L4_2portataTermMaxNom" type="xs:integer" minOccurs="0"/>
    <xs:element name="L4_2portataTermMinNom" type="xs:integer" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element rowBR/L4_2dataInstallazione
diagram libretto_diagrams/libretto_p389.png
namespace libretto
type data
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1900-01-01
maxInclusive 2100-12-31
source <xs:element name="L4_2dataInstallazione" type="data" minOccurs="0"/>

element rowBR/L4_2dataDismissione
diagram libretto_diagrams/libretto_p390.png
namespace libretto
type data
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1900-01-01
maxInclusive 2100-12-31
source <xs:element name="L4_2dataDismissione" type="data" minOccurs="0"/>

element rowBR/L4_2fabbricante
diagram libretto_diagrams/libretto_p391.png
namespace libretto
type fabbricante
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L4_2fabbricante" type="fabbricante" minOccurs="0"/>

element rowBR/L4_2modello
diagram libretto_diagrams/libretto_p392.png
namespace libretto
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L4_2modello" type="xs:string" minOccurs="0"/>

element rowBR/L4_2matricola
diagram libretto_diagrams/libretto_p393.png
namespace libretto
type xs:string
properties
content simple
source <xs:element name="L4_2matricola" type="xs:string"/>

element rowBR/L4_2tipologia
diagram libretto_diagrams/libretto_p394.png
namespace libretto
type tipo_bruciatore
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1
maxInclusive 3
source <xs:element name="L4_2tipologia" type="tipo_bruciatore" minOccurs="0"/>

element rowBR/L4_2combustibile
diagram libretto_diagrams/libretto_p395.png
namespace libretto
type combustibile
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1
maxInclusive 24
source <xs:element name="L4_2combustibile" type="combustibile" minOccurs="0"/>

element rowBR/L4_2portataTermMaxNom
diagram libretto_diagrams/libretto_p396.png
namespace libretto
type xs:integer
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L4_2portataTermMaxNom" type="xs:integer" minOccurs="0"/>

element rowBR/L4_2portataTermMinNom
diagram libretto_diagrams/libretto_p397.png
namespace libretto
type xs:integer
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L4_2portataTermMinNom" type="xs:integer" minOccurs="0"/>

complexType rowCG
diagram libretto_diagrams/libretto_p398.png
namespace libretto
children L4_6dataInstallazione L4_6dataDismissione L4_6fabbricante L4_6modello L4_6matricola L4_6tipologia L4_6combustibile L4_6potTermNom L4_6potElettrNom L4_6tempAcquaUscitaMIN L4_6tempAcquaUscitaMAX L4_6tempFumiValleMIN L4_6tempFumiValleMAX L4_6tempAcquaIngressoMIN L4_6tempAcquaIngressoMAX L4_6tempFumiMonteMIN L4_6tempFumiMonteMAX L4_6tempAcquaMotoreMIN L4_6tempAcquaMotoreMAX L4_6emissioniMonossidoMIN L4_6emissioniMonossidoMAX
used by
element impianto/scheda_4_generatori/cogeneratore/rowCG
annotation
documentation

dati del cogeneratore/trigeneratore
source <xs:complexType name="rowCG">
  <xs:annotation>
    <xs:documentation>
dati del cogeneratore/trigeneratore
</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="L4_6dataInstallazione" type="data" minOccurs="0"/>
    <xs:element name="L4_6dataDismissione" type="data" minOccurs="0"/>
    <xs:element name="L4_6fabbricante" type="fabbricante" minOccurs="0"/>
    <xs:element name="L4_6modello" type="xs:string" minOccurs="0"/>
    <xs:element name="L4_6matricola" type="xs:string"/>
    <xs:element name="L4_6tipologia" type="tipoCogeneratore" minOccurs="0"/>
    <xs:element name="L4_6combustibile" type="combustibile"/>
    <xs:element name="L4_6potTermNom" type="xs:decimal" minOccurs="0"/>
    <xs:element name="L4_6potElettrNom" type="xs:decimal" minOccurs="0"/>
    <xs:element name="L4_6tempAcquaUscitaMIN" type="decimale1" minOccurs="0"/>
    <xs:element name="L4_6tempAcquaUscitaMAX" type="decimale1" minOccurs="0"/>
    <xs:element name="L4_6tempFumiValleMIN" type="decimale1" minOccurs="0"/>
    <xs:element name="L4_6tempFumiValleMAX" type="decimale1" minOccurs="0"/>
    <xs:element name="L4_6tempAcquaIngressoMIN" type="decimale1" minOccurs="0"/>
    <xs:element name="L4_6tempAcquaIngressoMAX" type="decimale1" minOccurs="0"/>
    <xs:element name="L4_6tempFumiMonteMIN" type="decimale1" minOccurs="0"/>
    <xs:element name="L4_6tempFumiMonteMAX" type="decimale1" minOccurs="0"/>
    <xs:element name="L4_6tempAcquaMotoreMIN" type="decimale1" minOccurs="0"/>
    <xs:element name="L4_6tempAcquaMotoreMAX" type="decimale1" minOccurs="0"/>
    <xs:element name="L4_6emissioniMonossidoMIN" type="decimale1" minOccurs="0"/>
    <xs:element name="L4_6emissioniMonossidoMAX" type="decimale1" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element rowCG/L4_6dataInstallazione
diagram libretto_diagrams/libretto_p399.png
namespace libretto
type data
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1900-01-01
maxInclusive 2100-12-31
source <xs:element name="L4_6dataInstallazione" type="data" minOccurs="0"/>

element rowCG/L4_6dataDismissione
diagram libretto_diagrams/libretto_p400.png
namespace libretto
type data
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1900-01-01
maxInclusive 2100-12-31
source <xs:element name="L4_6dataDismissione" type="data" minOccurs="0"/>

element rowCG/L4_6fabbricante
diagram libretto_diagrams/libretto_p401.png
namespace libretto
type fabbricante
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L4_6fabbricante" type="fabbricante" minOccurs="0"/>

element rowCG/L4_6modello
diagram libretto_diagrams/libretto_p402.png
namespace libretto
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L4_6modello" type="xs:string" minOccurs="0"/>

element rowCG/L4_6matricola
diagram libretto_diagrams/libretto_p403.png
namespace libretto
type xs:string
properties
content simple
source <xs:element name="L4_6matricola" type="xs:string"/>

element rowCG/L4_6tipologia
diagram libretto_diagrams/libretto_p404.png
namespace libretto
type tipoCogeneratore
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1
maxInclusive 4
source <xs:element name="L4_6tipologia" type="tipoCogeneratore" minOccurs="0"/>

element rowCG/L4_6combustibile
diagram libretto_diagrams/libretto_p405.png
namespace libretto
type combustibile
properties
content simple
facets
Kind Value Annotation
minInclusive 1
maxInclusive 24
source <xs:element name="L4_6combustibile" type="combustibile"/>

element rowCG/L4_6potTermNom
diagram libretto_diagrams/libretto_p406.png
namespace libretto
type xs:decimal
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L4_6potTermNom" type="xs:decimal" minOccurs="0"/>

element rowCG/L4_6potElettrNom
diagram libretto_diagrams/libretto_p407.png
namespace libretto
type xs:decimal
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L4_6potElettrNom" type="xs:decimal" minOccurs="0"/>

element rowCG/L4_6tempAcquaUscitaMIN
diagram libretto_diagrams/libretto_p408.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L4_6tempAcquaUscitaMIN" type="decimale1" minOccurs="0"/>

element rowCG/L4_6tempAcquaUscitaMAX
diagram libretto_diagrams/libretto_p409.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L4_6tempAcquaUscitaMAX" type="decimale1" minOccurs="0"/>

element rowCG/L4_6tempFumiValleMIN
diagram libretto_diagrams/libretto_p410.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L4_6tempFumiValleMIN" type="decimale1" minOccurs="0"/>

element rowCG/L4_6tempFumiValleMAX
diagram libretto_diagrams/libretto_p411.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L4_6tempFumiValleMAX" type="decimale1" minOccurs="0"/>

element rowCG/L4_6tempAcquaIngressoMIN
diagram libretto_diagrams/libretto_p412.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L4_6tempAcquaIngressoMIN" type="decimale1" minOccurs="0"/>

element rowCG/L4_6tempAcquaIngressoMAX
diagram libretto_diagrams/libretto_p413.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L4_6tempAcquaIngressoMAX" type="decimale1" minOccurs="0"/>

element rowCG/L4_6tempFumiMonteMIN
diagram libretto_diagrams/libretto_p414.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L4_6tempFumiMonteMIN" type="decimale1" minOccurs="0"/>

element rowCG/L4_6tempFumiMonteMAX
diagram libretto_diagrams/libretto_p415.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L4_6tempFumiMonteMAX" type="decimale1" minOccurs="0"/>

element rowCG/L4_6tempAcquaMotoreMIN
diagram libretto_diagrams/libretto_p416.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L4_6tempAcquaMotoreMIN" type="decimale1" minOccurs="0"/>

element rowCG/L4_6tempAcquaMotoreMAX
diagram libretto_diagrams/libretto_p417.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L4_6tempAcquaMotoreMAX" type="decimale1" minOccurs="0"/>

element rowCG/L4_6emissioniMonossidoMIN
diagram libretto_diagrams/libretto_p418.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L4_6emissioniMonossidoMIN" type="decimale1" minOccurs="0"/>

element rowCG/L4_6emissioniMonossidoMAX
diagram libretto_diagrams/libretto_p419.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L4_6emissioniMonossidoMAX" type="decimale1" minOccurs="0"/>

complexType rowCI
diagram libretto_diagrams/libretto_p420.png
namespace libretto
children L9_4dataInstallazione L9_4dataDismissione L9_4lungCircuito L9_4superfScamb L9_4profInstallaz
used by
element impianto/scheda_9_altriComponenti/L9_4_AltriComponentiCI/rowCI
annotation
documentation

                dati dei circuiti di raffreddamento interrati

source <xs:complexType name="rowCI">
  <xs:annotation>
    <xs:documentation>
                dati dei circuiti di raffreddamento interrati
                </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="L9_4dataInstallazione" type="data" minOccurs="0"/>
    <xs:element name="L9_4dataDismissione" type="data" minOccurs="0"/>
    <xs:element name="L9_4lungCircuito" type="decimale1" minOccurs="0"/>
    <xs:element name="L9_4superfScamb" type="decimale1" minOccurs="0"/>
    <xs:element name="L9_4profInstallaz" type="decimale1" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element rowCI/L9_4dataInstallazione
diagram libretto_diagrams/libretto_p421.png
namespace libretto
type data
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1900-01-01
maxInclusive 2100-12-31
source <xs:element name="L9_4dataInstallazione" type="data" minOccurs="0"/>

element rowCI/L9_4dataDismissione
diagram libretto_diagrams/libretto_p422.png
namespace libretto
type data
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1900-01-01
maxInclusive 2100-12-31
source <xs:element name="L9_4dataDismissione" type="data" minOccurs="0"/>

element rowCI/L9_4lungCircuito
diagram libretto_diagrams/libretto_p423.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L9_4lungCircuito" type="decimale1" minOccurs="0"/>

element rowCI/L9_4superfScamb
diagram libretto_diagrams/libretto_p424.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L9_4superfScamb" type="decimale1" minOccurs="0"/>

element rowCI/L9_4profInstallaz
diagram libretto_diagrams/libretto_p425.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L9_4profInstallaz" type="decimale1" minOccurs="0"/>

complexType rowCS
diagram libretto_diagrams/libretto_p426.png
namespace libretto
children L4_7dataInstallazione L4_7dataDismissione L4_7fabbricante L4_7numeroCollettori L4_7superfTotApertura
used by
element impianto/scheda_4_generatori/solaretermico/rowCS
annotation
documentation

dati del solare termico
source <xs:complexType name="rowCS">
  <xs:annotation>
    <xs:documentation>
dati del solare termico
</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="L4_7dataInstallazione" type="data" minOccurs="0"/>
    <xs:element name="L4_7dataDismissione" type="data" minOccurs="0"/>
    <xs:element name="L4_7fabbricante" type="fabbricante" minOccurs="0"/>
    <xs:element name="L4_7numeroCollettori" type="xs:integer" minOccurs="0"/>
    <xs:element name="L4_7superfTotApertura" type="decimale1" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element rowCS/L4_7dataInstallazione
diagram libretto_diagrams/libretto_p427.png
namespace libretto
type data
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1900-01-01
maxInclusive 2100-12-31
source <xs:element name="L4_7dataInstallazione" type="data" minOccurs="0"/>

element rowCS/L4_7dataDismissione
diagram libretto_diagrams/libretto_p428.png
namespace libretto
type data
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1900-01-01
maxInclusive 2100-12-31
source <xs:element name="L4_7dataDismissione" type="data" minOccurs="0"/>

element rowCS/L4_7fabbricante
diagram libretto_diagrams/libretto_p429.png
namespace libretto
type fabbricante
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L4_7fabbricante" type="fabbricante" minOccurs="0"/>

element rowCS/L4_7numeroCollettori
diagram libretto_diagrams/libretto_p430.png
namespace libretto
type xs:integer
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L4_7numeroCollettori" type="xs:integer" minOccurs="0"/>

element rowCS/L4_7superfTotApertura
diagram libretto_diagrams/libretto_p431.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L4_7superfTotApertura" type="decimale1" minOccurs="0"/>

complexType rowGF
diagram libretto_diagrams/libretto_p432.png
namespace libretto
children L4_4dataInstallazione L4_4dataDismissione L4_4fabbricante L4_4modello L4_4matricola L4_4flagSorgEsterna L4_4fluidoFrigo L4_4flagFluidoUtenza L4_4tipoScambioFrigo L4_4tipoLiquidoGassoso L4_4numeroCircuiti sezRaffreddamentoFrigo sezRiscaldamentoFrigo
used by
element impianto/scheda_4_generatori/gruppofrigo/rowGF
annotation
documentation

                dati del gruppo frigo/pompa di calore, la sorgente esterna e il fluido lato utenza  (L4_4flagSorgEsterna - L4_4flagFluidoUtenza ) valgono "true" se aria, vale "false" se acqua
                nel caso il assorbimento a fiamma diretta con combustibile va indicato se il combustibile è liquido o gassoso

source <xs:complexType name="rowGF">
  <xs:annotation>
    <xs:documentation>
                dati del gruppo frigo/pompa di calore, la sorgente esterna e il fluido lato utenza  (L4_4flagSorgEsterna - L4_4flagFluidoUtenza ) valgono "true" se aria, vale "false" se acqua
                nel caso il assorbimento a fiamma diretta con combustibile va indicato se il combustibile è liquido o gassoso
                </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="L4_4dataInstallazione" type="data" minOccurs="0"/>
    <xs:element name="L4_4dataDismissione" type="data" minOccurs="0"/>
    <xs:element name="L4_4fabbricante" type="fabbricante" minOccurs="0"/>
    <xs:element name="L4_4modello" type="xs:string" minOccurs="0"/>
    <xs:element name="L4_4matricola" type="xs:string"/>
    <xs:element name="L4_4flagSorgEsterna" type="xs:boolean" minOccurs="0"/>
    <xs:element name="L4_4fluidoFrigo" type="fluido_frigorigeno" minOccurs="0"/>
    <xs:element name="L4_4flagFluidoUtenza" type="xs:boolean" minOccurs="0"/>
    <xs:element name="L4_4tipoScambioFrigo" minOccurs="0">
      <xs:complexType>
        <xs:choice>
          <xs:element name="L4_4flagAssorbimentoRecCalore" type="xs:boolean" fixed="true"/>
          <xs:element name="L4_4FiammaDirettaLiquidoGassoso" type="xs:boolean" fixed="true"/>
          <xs:element name="L4_4CicliCompressione" type="xs:boolean" fixed="true"/>
        </xs:choice>
      </xs:complexType>
    </xs:element>
    <xs:element name="L4_4tipoLiquidoGassoso" type="combustibilefiammadiretta" minOccurs="0"/>
    <xs:element name="L4_4numeroCircuiti" type="xs:integer" minOccurs="0"/>
    <xs:element name="sezRaffreddamentoFrigo" minOccurs="0">
      <xs:complexType>
        <xs:sequence>
          <xs:element name="L4_4raffrescam" type="efficienzaFrigo" minOccurs="0"/>
          <xs:element name="L4_4potFrigoNom" type="decimale1" minOccurs="0"/>
          <xs:element name="L4_4potFrigoAssorb" type="decimale1" minOccurs="0"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="sezRiscaldamentoFrigo" minOccurs="0">
      <xs:complexType>
        <xs:sequence>
          <xs:element name="L4_4riscaldam" type="efficienzaFrigo" minOccurs="0"/>
          <xs:element name="L4_4potTermNom" type="decimale1" minOccurs="0"/>
          <xs:element name="L4_4potTermAssorb" type="decimale1" minOccurs="0"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element rowGF/L4_4dataInstallazione
diagram libretto_diagrams/libretto_p433.png
namespace libretto
type data
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1900-01-01
maxInclusive 2100-12-31
source <xs:element name="L4_4dataInstallazione" type="data" minOccurs="0"/>

element rowGF/L4_4dataDismissione
diagram libretto_diagrams/libretto_p434.png
namespace libretto
type data
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1900-01-01
maxInclusive 2100-12-31
source <xs:element name="L4_4dataDismissione" type="data" minOccurs="0"/>

element rowGF/L4_4fabbricante
diagram libretto_diagrams/libretto_p435.png
namespace libretto
type fabbricante
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L4_4fabbricante" type="fabbricante" minOccurs="0"/>

element rowGF/L4_4modello
diagram libretto_diagrams/libretto_p436.png
namespace libretto
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L4_4modello" type="xs:string" minOccurs="0"/>

element rowGF/L4_4matricola
diagram libretto_diagrams/libretto_p437.png
namespace libretto
type xs:string
properties
content simple
source <xs:element name="L4_4matricola" type="xs:string"/>

element rowGF/L4_4flagSorgEsterna
diagram libretto_diagrams/libretto_p438.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L4_4flagSorgEsterna" type="xs:boolean" minOccurs="0"/>

element rowGF/L4_4fluidoFrigo
diagram libretto_diagrams/libretto_p439.png
namespace libretto
type fluido_frigorigeno
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1
maxInclusive 7
source <xs:element name="L4_4fluidoFrigo" type="fluido_frigorigeno" minOccurs="0"/>

element rowGF/L4_4flagFluidoUtenza
diagram libretto_diagrams/libretto_p440.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L4_4flagFluidoUtenza" type="xs:boolean" minOccurs="0"/>

element rowGF/L4_4tipoScambioFrigo
diagram libretto_diagrams/libretto_p441.png
namespace libretto
properties
minOcc 0
maxOcc 1
content complex
children L4_4flagAssorbimentoRecCalore L4_4FiammaDirettaLiquidoGassoso L4_4CicliCompressione
source <xs:element name="L4_4tipoScambioFrigo" minOccurs="0">
  <xs:complexType>
    <xs:choice>
      <xs:element name="L4_4flagAssorbimentoRecCalore" type="xs:boolean" fixed="true"/>
      <xs:element name="L4_4FiammaDirettaLiquidoGassoso" type="xs:boolean" fixed="true"/>
      <xs:element name="L4_4CicliCompressione" type="xs:boolean" fixed="true"/>
    </xs:choice>
  </xs:complexType>
</xs:element>

element rowGF/L4_4tipoScambioFrigo/L4_4flagAssorbimentoRecCalore
diagram libretto_diagrams/libretto_p442.png
namespace libretto
type xs:boolean
properties
content simple
fixed true
source <xs:element name="L4_4flagAssorbimentoRecCalore" type="xs:boolean" fixed="true"/>

element rowGF/L4_4tipoScambioFrigo/L4_4FiammaDirettaLiquidoGassoso
diagram libretto_diagrams/libretto_p443.png
namespace libretto
type xs:boolean
properties
content simple
fixed true
source <xs:element name="L4_4FiammaDirettaLiquidoGassoso" type="xs:boolean" fixed="true"/>

element rowGF/L4_4tipoScambioFrigo/L4_4CicliCompressione
diagram libretto_diagrams/libretto_p444.png
namespace libretto
type xs:boolean
properties
content simple
fixed true
source <xs:element name="L4_4CicliCompressione" type="xs:boolean" fixed="true"/>

element rowGF/L4_4tipoLiquidoGassoso
diagram libretto_diagrams/libretto_p445.png
namespace libretto
type combustibilefiammadiretta
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1
maxInclusive 2
source <xs:element name="L4_4tipoLiquidoGassoso" type="combustibilefiammadiretta" minOccurs="0"/>

element rowGF/L4_4numeroCircuiti
diagram libretto_diagrams/libretto_p446.png
namespace libretto
type xs:integer
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L4_4numeroCircuiti" type="xs:integer" minOccurs="0"/>

element rowGF/sezRaffreddamentoFrigo
diagram libretto_diagrams/libretto_p447.png
namespace libretto
properties
minOcc 0
maxOcc 1
content complex
children L4_4raffrescam L4_4potFrigoNom L4_4potFrigoAssorb
source <xs:element name="sezRaffreddamentoFrigo" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="L4_4raffrescam" type="efficienzaFrigo" minOccurs="0"/>
      <xs:element name="L4_4potFrigoNom" type="decimale1" minOccurs="0"/>
      <xs:element name="L4_4potFrigoAssorb" type="decimale1" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element rowGF/sezRaffreddamentoFrigo/L4_4raffrescam
diagram libretto_diagrams/libretto_p448.png
namespace libretto
type efficienzaFrigo
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1.00
maxInclusive 10.00
fractionDigits 2
source <xs:element name="L4_4raffrescam" type="efficienzaFrigo" minOccurs="0"/>

element rowGF/sezRaffreddamentoFrigo/L4_4potFrigoNom
diagram libretto_diagrams/libretto_p449.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L4_4potFrigoNom" type="decimale1" minOccurs="0"/>

element rowGF/sezRaffreddamentoFrigo/L4_4potFrigoAssorb
diagram libretto_diagrams/libretto_p450.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L4_4potFrigoAssorb" type="decimale1" minOccurs="0"/>

element rowGF/sezRiscaldamentoFrigo
diagram libretto_diagrams/libretto_p451.png
namespace libretto
properties
minOcc 0
maxOcc 1
content complex
children L4_4riscaldam L4_4potTermNom L4_4potTermAssorb
source <xs:element name="sezRiscaldamentoFrigo" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="L4_4riscaldam" type="efficienzaFrigo" minOccurs="0"/>
      <xs:element name="L4_4potTermNom" type="decimale1" minOccurs="0"/>
      <xs:element name="L4_4potTermAssorb" type="decimale1" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element rowGF/sezRiscaldamentoFrigo/L4_4riscaldam
diagram libretto_diagrams/libretto_p452.png
namespace libretto
type efficienzaFrigo
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1.00
maxInclusive 10.00
fractionDigits 2
source <xs:element name="L4_4riscaldam" type="efficienzaFrigo" minOccurs="0"/>

element rowGF/sezRiscaldamentoFrigo/L4_4potTermNom
diagram libretto_diagrams/libretto_p453.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L4_4potTermNom" type="decimale1" minOccurs="0"/>

element rowGF/sezRiscaldamentoFrigo/L4_4potTermAssorb
diagram libretto_diagrams/libretto_p454.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L4_4potTermAssorb" type="decimale1" minOccurs="0"/>

complexType rowGT
diagram libretto_diagrams/libretto_p455.png
namespace libretto
children L4_1dataInstallazione L4_1dataDismissione L4_1fabbricante L4_1modello L4_1matricola L4_1combustibile L4_1fluidoTermoVett L4_1potTermUtileMax L4_1rendimTermUtileMax L4_1attributiGT accessori_gruppotermico_caldaie
used by
element impianto/scheda_4_generatori/gruppotermico_caldaie/rowGT
annotation
documentation

                dati relativi al generatore termico o caldaia, nell'elemento accessori_gruppotermico_caldaie c'è la possibilità di inserire i bruciatori e scambiatori con le rispettive sostituzioni

source <xs:complexType name="rowGT">
  <xs:annotation>
    <xs:documentation>
                dati relativi al generatore termico o caldaia, nell'elemento accessori_gruppotermico_caldaie c'è la possibilità di inserire i bruciatori e scambiatori con le rispettive sostituzioni
                </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="L4_1dataInstallazione" type="data" minOccurs="0"/>
    <xs:element name="L4_1dataDismissione" type="data" minOccurs="0"/>
    <xs:element name="L4_1fabbricante" type="fabbricante" minOccurs="0"/>
    <xs:element name="L4_1modello" type="xs:string" minOccurs="0"/>
    <xs:element name="L4_1matricola" type="xs:string"/>
    <xs:element name="L4_1combustibile" type="combustibile" minOccurs="0"/>
    <xs:element name="L4_1fluidoTermoVett" type="fluidoTermoVett" minOccurs="0"/>
    <xs:element name="L4_1potTermUtileMax" type="decimale1" minOccurs="0"/>
    <xs:element name="L4_1rendimTermUtileMax" type="rendimento" minOccurs="0"/>
    <xs:element name="L4_1attributiGT" type="attributiGT" minOccurs="0"/>
    <xs:element name="accessori_gruppotermico_caldaie" minOccurs="0">
      <xs:complexType>
        <xs:choice maxOccurs="unbounded">
          <xs:element name="sezBR">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="L4_2numBR" type="xs:integer"/>
                <xs:element name="rowBR" type="rowBR" maxOccurs="unbounded"/>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
          <xs:element name="sezRC">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="L4_3numRC" type="xs:integer"/>
                <xs:element name="rowRC" type="rowRC" maxOccurs="unbounded"/>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
        </xs:choice>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element rowGT/L4_1dataInstallazione
diagram libretto_diagrams/libretto_p456.png
namespace libretto
type data
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1900-01-01
maxInclusive 2100-12-31
source <xs:element name="L4_1dataInstallazione" type="data" minOccurs="0"/>

element rowGT/L4_1dataDismissione
diagram libretto_diagrams/libretto_p457.png
namespace libretto
type data
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1900-01-01
maxInclusive 2100-12-31
source <xs:element name="L4_1dataDismissione" type="data" minOccurs="0"/>

element rowGT/L4_1fabbricante
diagram libretto_diagrams/libretto_p458.png
namespace libretto
type fabbricante
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L4_1fabbricante" type="fabbricante" minOccurs="0"/>

element rowGT/L4_1modello
diagram libretto_diagrams/libretto_p459.png
namespace libretto
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L4_1modello" type="xs:string" minOccurs="0"/>

element rowGT/L4_1matricola
diagram libretto_diagrams/libretto_p460.png
namespace libretto
type xs:string
properties
content simple
source <xs:element name="L4_1matricola" type="xs:string"/>

element rowGT/L4_1combustibile
diagram libretto_diagrams/libretto_p461.png
namespace libretto
type combustibile
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1
maxInclusive 24
source <xs:element name="L4_1combustibile" type="combustibile" minOccurs="0"/>

element rowGT/L4_1fluidoTermoVett
diagram libretto_diagrams/libretto_p462.png
namespace libretto
type fluidoTermoVett
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1
maxInclusive 5
source <xs:element name="L4_1fluidoTermoVett" type="fluidoTermoVett" minOccurs="0"/>

element rowGT/L4_1potTermUtileMax
diagram libretto_diagrams/libretto_p463.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L4_1potTermUtileMax" type="decimale1" minOccurs="0"/>

element rowGT/L4_1rendimTermUtileMax
diagram libretto_diagrams/libretto_p464.png
namespace libretto
type rendimento
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 0.0
maxInclusive 200.0
fractionDigits 1
source <xs:element name="L4_1rendimTermUtileMax" type="rendimento" minOccurs="0"/>

element rowGT/L4_1attributiGT
diagram libretto_diagrams/libretto_p465.png
namespace libretto
type attributiGT
properties
minOcc 0
maxOcc 1
content complex
children L4_1flagSingolo L4_1modulareAnalisiFumiPreviste L4_1flagTubo_radiante L4_1flagGen_aria_calda
source <xs:element name="L4_1attributiGT" type="attributiGT" minOccurs="0"/>

element rowGT/accessori_gruppotermico_caldaie
diagram libretto_diagrams/libretto_p466.png
namespace libretto
properties
minOcc 0
maxOcc 1
content complex
children sezBR sezRC
source <xs:element name="accessori_gruppotermico_caldaie" minOccurs="0">
  <xs:complexType>
    <xs:choice maxOccurs="unbounded">
      <xs:element name="sezBR">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="L4_2numBR" type="xs:integer"/>
            <xs:element name="rowBR" type="rowBR" maxOccurs="unbounded"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="sezRC">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="L4_3numRC" type="xs:integer"/>
            <xs:element name="rowRC" type="rowRC" maxOccurs="unbounded"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:choice>
  </xs:complexType>
</xs:element>

element rowGT/accessori_gruppotermico_caldaie/sezBR
diagram libretto_diagrams/libretto_p467.png
namespace libretto
properties
content complex
children L4_2numBR rowBR
source <xs:element name="sezBR">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="L4_2numBR" type="xs:integer"/>
      <xs:element name="rowBR" type="rowBR" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element rowGT/accessori_gruppotermico_caldaie/sezBR/L4_2numBR
diagram libretto_diagrams/libretto_p468.png
namespace libretto
type xs:integer
properties
content simple
source <xs:element name="L4_2numBR" type="xs:integer"/>

element rowGT/accessori_gruppotermico_caldaie/sezBR/rowBR
diagram libretto_diagrams/libretto_p469.png
namespace libretto
type rowBR
properties
minOcc 1
maxOcc unbounded
content complex
children L4_2dataInstallazione L4_2dataDismissione L4_2fabbricante L4_2modello L4_2matricola L4_2tipologia L4_2combustibile L4_2portataTermMaxNom L4_2portataTermMinNom
source <xs:element name="rowBR" type="rowBR" maxOccurs="unbounded"/>

element rowGT/accessori_gruppotermico_caldaie/sezRC
diagram libretto_diagrams/libretto_p470.png
namespace libretto
properties
content complex
children L4_3numRC rowRC
source <xs:element name="sezRC">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="L4_3numRC" type="xs:integer"/>
      <xs:element name="rowRC" type="rowRC" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element rowGT/accessori_gruppotermico_caldaie/sezRC/L4_3numRC
diagram libretto_diagrams/libretto_p471.png
namespace libretto
type xs:integer
properties
content simple
source <xs:element name="L4_3numRC" type="xs:integer"/>

element rowGT/accessori_gruppotermico_caldaie/sezRC/rowRC
diagram libretto_diagrams/libretto_p472.png
namespace libretto
type rowRC
properties
minOcc 1
maxOcc unbounded
content complex
children L4_3dataInstallazione L4_3dataDismissione L4_3fabbricante L4_3modello L4_3matricola L4_3potTermNomTot
source <xs:element name="rowRC" type="rowRC" maxOccurs="unbounded"/>

complexType rowPC
diagram libretto_diagrams/libretto_p473.png
namespace libretto
children L6_4dataInstallazione L6_4dataDismissione L6_4fabbricante L6_4modello L6_4flagGiriVarSI L6_4potNominale
used by
element impianto/scheda_6_sistema_distribuzione/L6_4PompeCircolazione/rowPC
annotation
documentation

                dati del pompe circolazione.
                L6_4GiriVarSI è 1 se la pompa è a Giri Variabili SI, 0 altimenti.

source <xs:complexType name="rowPC">
  <xs:annotation>
    <xs:documentation>
                dati del pompe circolazione.
                L6_4GiriVarSI è 1 se la pompa è a Giri Variabili SI, 0 altimenti.
                </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="L6_4dataInstallazione" type="data" minOccurs="0"/>
    <xs:element name="L6_4dataDismissione" type="data" minOccurs="0"/>
    <xs:element name="L6_4fabbricante" type="fabbricante" minOccurs="0"/>
    <xs:element name="L6_4modello" type="xs:string" minOccurs="0"/>
    <xs:element name="L6_4flagGiriVarSI" type="xs:boolean" minOccurs="0"/>
    <xs:element name="L6_4potNominale" type="decimale1" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element rowPC/L6_4dataInstallazione
diagram libretto_diagrams/libretto_p474.png
namespace libretto
type data
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1900-01-01
maxInclusive 2100-12-31
source <xs:element name="L6_4dataInstallazione" type="data" minOccurs="0"/>

element rowPC/L6_4dataDismissione
diagram libretto_diagrams/libretto_p475.png
namespace libretto
type data
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1900-01-01
maxInclusive 2100-12-31
source <xs:element name="L6_4dataDismissione" type="data" minOccurs="0"/>

element rowPC/L6_4fabbricante
diagram libretto_diagrams/libretto_p476.png
namespace libretto
type fabbricante
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L6_4fabbricante" type="fabbricante" minOccurs="0"/>

element rowPC/L6_4modello
diagram libretto_diagrams/libretto_p477.png
namespace libretto
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L6_4modello" type="xs:string" minOccurs="0"/>

element rowPC/L6_4flagGiriVarSI
diagram libretto_diagrams/libretto_p478.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L6_4flagGiriVarSI" type="xs:boolean" minOccurs="0"/>

element rowPC/L6_4potNominale
diagram libretto_diagrams/libretto_p479.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L6_4potNominale" type="decimale1" minOccurs="0"/>

complexType rowRC
diagram libretto_diagrams/libretto_p480.png
namespace libretto
children L4_3dataInstallazione L4_3dataDismissione L4_3fabbricante L4_3modello L4_3matricola L4_3potTermNomTot
used by
element rowGT/accessori_gruppotermico_caldaie/sezRC/rowRC
annotation
documentation

dati del Recuperatore di calore collegato al gruppo termico
source <xs:complexType name="rowRC">
  <xs:annotation>
    <xs:documentation>
dati del Recuperatore di calore collegato al gruppo termico
</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="L4_3dataInstallazione" type="data" minOccurs="0"/>
    <xs:element name="L4_3dataDismissione" type="data" minOccurs="0"/>
    <xs:element name="L4_3fabbricante" type="fabbricante" minOccurs="0"/>
    <xs:element name="L4_3modello" type="xs:string" minOccurs="0"/>
    <xs:element name="L4_3matricola" type="xs:string"/>
    <xs:element name="L4_3potTermNomTot" type="xs:integer" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element rowRC/L4_3dataInstallazione
diagram libretto_diagrams/libretto_p481.png
namespace libretto
type data
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1900-01-01
maxInclusive 2100-12-31
source <xs:element name="L4_3dataInstallazione" type="data" minOccurs="0"/>

element rowRC/L4_3dataDismissione
diagram libretto_diagrams/libretto_p482.png
namespace libretto
type data
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1900-01-01
maxInclusive 2100-12-31
source <xs:element name="L4_3dataDismissione" type="data" minOccurs="0"/>

element rowRC/L4_3fabbricante
diagram libretto_diagrams/libretto_p483.png
namespace libretto
type fabbricante
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L4_3fabbricante" type="fabbricante" minOccurs="0"/>

element rowRC/L4_3modello
diagram libretto_diagrams/libretto_p484.png
namespace libretto
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L4_3modello" type="xs:string" minOccurs="0"/>

element rowRC/L4_3matricola
diagram libretto_diagrams/libretto_p485.png
namespace libretto
type xs:string
properties
content simple
source <xs:element name="L4_3matricola" type="xs:string"/>

element rowRC/L4_3potTermNomTot
diagram libretto_diagrams/libretto_p486.png
namespace libretto
type xs:integer
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L4_3potTermNomTot" type="xs:integer" minOccurs="0"/>

complexType rowRCcal
diagram libretto_diagrams/libretto_p487.png
namespace libretto
children L9_6dataInstallazione L9_6dataDismissione L9_6tipologia L9_6flagInstallatoUTAindipendente L9_6portataVentMandata L9_6portataVentRipresa L9_6potenzaVentMandata L9_6potenzaVentRipresa
used by
element impianto/scheda_9_altriComponenti/L9_6_AltriComponentiRC/rowRCcal
annotation
documentation

                dati dei recuperatori calore intermedi
                L9_6flagInstallatoUTAindipendente vale 0 se installato in UTA o VMC, 1 se indipendente

source <xs:complexType name="rowRCcal">
  <xs:annotation>
    <xs:documentation>
                dati dei recuperatori calore intermedi
                L9_6flagInstallatoUTAindipendente vale 0 se installato in UTA o VMC, 1 se indipendente
            </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="L9_6dataInstallazione" type="data" minOccurs="0"/>
    <xs:element name="L9_6dataDismissione" type="data" minOccurs="0"/>
    <xs:element name="L9_6tipologia" type="tipo_scambiatore" minOccurs="0"/>
    <xs:element name="L9_6flagInstallatoUTAindipendente" type="xs:boolean" minOccurs="0"/>
    <xs:element name="L9_6portataVentMandata" type="xs:decimal" minOccurs="0"/>
    <xs:element name="L9_6portataVentRipresa" type="xs:decimal" minOccurs="0"/>
    <xs:element name="L9_6potenzaVentMandata" type="xs:decimal" minOccurs="0"/>
    <xs:element name="L9_6potenzaVentRipresa" type="xs:decimal" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element rowRCcal/L9_6dataInstallazione
diagram libretto_diagrams/libretto_p488.png
namespace libretto
type data
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1900-01-01
maxInclusive 2100-12-31
source <xs:element name="L9_6dataInstallazione" type="data" minOccurs="0"/>

element rowRCcal/L9_6dataDismissione
diagram libretto_diagrams/libretto_p489.png
namespace libretto
type data
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1900-01-01
maxInclusive 2100-12-31
source <xs:element name="L9_6dataDismissione" type="data" minOccurs="0"/>

element rowRCcal/L9_6tipologia
diagram libretto_diagrams/libretto_p490.png
namespace libretto
type tipo_scambiatore
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1
maxInclusive 5
source <xs:element name="L9_6tipologia" type="tipo_scambiatore" minOccurs="0"/>

element rowRCcal/L9_6flagInstallatoUTAindipendente
diagram libretto_diagrams/libretto_p491.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L9_6flagInstallatoUTAindipendente" type="xs:boolean" minOccurs="0"/>

element rowRCcal/L9_6portataVentMandata
diagram libretto_diagrams/libretto_p492.png
namespace libretto
type xs:decimal
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L9_6portataVentMandata" type="xs:decimal" minOccurs="0"/>

element rowRCcal/L9_6portataVentRipresa
diagram libretto_diagrams/libretto_p493.png
namespace libretto
type xs:decimal
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L9_6portataVentRipresa" type="xs:decimal" minOccurs="0"/>

element rowRCcal/L9_6potenzaVentMandata
diagram libretto_diagrams/libretto_p494.png
namespace libretto
type xs:decimal
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L9_6potenzaVentMandata" type="xs:decimal" minOccurs="0"/>

element rowRCcal/L9_6potenzaVentRipresa
diagram libretto_diagrams/libretto_p495.png
namespace libretto
type xs:decimal
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L9_6potenzaVentRipresa" type="xs:decimal" minOccurs="0"/>

complexType rowRV
diagram libretto_diagrams/libretto_p496.png
namespace libretto
children L9_2dataInstallazione L9_2dataDismissione L9_2fabbricante L9_2modello L9_2matricola L9_2numVentilatori L9_2tipoVentilatori
used by
element impianto/scheda_9_altriComponenti/L9_2_AltriComponentiRV/rowRV
annotation
documentation

                dati dei raffreddatori di liquido

source <xs:complexType name="rowRV">
  <xs:annotation>
    <xs:documentation>
                dati dei raffreddatori di liquido
                </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="L9_2dataInstallazione" type="data" minOccurs="0"/>
    <xs:element name="L9_2dataDismissione" type="data" minOccurs="0"/>
    <xs:element name="L9_2fabbricante" type="fabbricante" minOccurs="0"/>
    <xs:element name="L9_2modello" type="xs:string" minOccurs="0"/>
    <xs:element name="L9_2matricola" type="xs:string" minOccurs="0"/>
    <xs:element name="L9_2numVentilatori" type="xs:integer" minOccurs="0"/>
    <xs:element name="L9_2tipoVentilatori" type="tipo_ventilatori" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element rowRV/L9_2dataInstallazione
diagram libretto_diagrams/libretto_p497.png
namespace libretto
type data
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1900-01-01
maxInclusive 2100-12-31
source <xs:element name="L9_2dataInstallazione" type="data" minOccurs="0"/>

element rowRV/L9_2dataDismissione
diagram libretto_diagrams/libretto_p498.png
namespace libretto
type data
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1900-01-01
maxInclusive 2100-12-31
source <xs:element name="L9_2dataDismissione" type="data" minOccurs="0"/>

element rowRV/L9_2fabbricante
diagram libretto_diagrams/libretto_p499.png
namespace libretto
type fabbricante
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L9_2fabbricante" type="fabbricante" minOccurs="0"/>

element rowRV/L9_2modello
diagram libretto_diagrams/libretto_p500.png
namespace libretto
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L9_2modello" type="xs:string" minOccurs="0"/>

element rowRV/L9_2matricola
diagram libretto_diagrams/libretto_p501.png
namespace libretto
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L9_2matricola" type="xs:string" minOccurs="0"/>

element rowRV/L9_2numVentilatori
diagram libretto_diagrams/libretto_p502.png
namespace libretto
type xs:integer
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L9_2numVentilatori" type="xs:integer" minOccurs="0"/>

element rowRV/L9_2tipoVentilatori
diagram libretto_diagrams/libretto_p503.png
namespace libretto
type tipo_ventilatori
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1
maxInclusive 3
source <xs:element name="L9_2tipoVentilatori" type="tipo_ventilatori" minOccurs="0"/>

complexType rowSC
diagram libretto_diagrams/libretto_p504.png
namespace libretto
children L4_5dataInstallazione L4_5dataDismissione L4_5fabbricante L4_5modello L4_5matricola L4_5potTermNomTot
used by
element impianto/scheda_4_generatori/scambiatore/rowSC
annotation
documentation

dati dello scambiatore di calore per teleriscaldamento o teleraffrescamento
source <xs:complexType name="rowSC">
  <xs:annotation>
    <xs:documentation>
dati dello scambiatore di calore per teleriscaldamento o teleraffrescamento
</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="L4_5dataInstallazione" type="data" minOccurs="0"/>
    <xs:element name="L4_5dataDismissione" type="data" minOccurs="0"/>
    <xs:element name="L4_5fabbricante" type="fabbricante" minOccurs="0"/>
    <xs:element name="L4_5modello" type="xs:string" minOccurs="0"/>
    <xs:element name="L4_5matricola" type="xs:string"/>
    <xs:element name="L4_5potTermNomTot" type="decimale1" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element rowSC/L4_5dataInstallazione
diagram libretto_diagrams/libretto_p505.png
namespace libretto
type data
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1900-01-01
maxInclusive 2100-12-31
source <xs:element name="L4_5dataInstallazione" type="data" minOccurs="0"/>

element rowSC/L4_5dataDismissione
diagram libretto_diagrams/libretto_p506.png
namespace libretto
type data
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1900-01-01
maxInclusive 2100-12-31
source <xs:element name="L4_5dataDismissione" type="data" minOccurs="0"/>

element rowSC/L4_5fabbricante
diagram libretto_diagrams/libretto_p507.png
namespace libretto
type fabbricante
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L4_5fabbricante" type="fabbricante" minOccurs="0"/>

element rowSC/L4_5modello
diagram libretto_diagrams/libretto_p508.png
namespace libretto
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L4_5modello" type="xs:string" minOccurs="0"/>

element rowSC/L4_5matricola
diagram libretto_diagrams/libretto_p509.png
namespace libretto
type xs:string
properties
content simple
source <xs:element name="L4_5matricola" type="xs:string"/>

element rowSC/L4_5potTermNomTot
diagram libretto_diagrams/libretto_p510.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L4_5potTermNomTot" type="decimale1" minOccurs="0"/>

complexType rowSCcal
diagram libretto_diagrams/libretto_p511.png
namespace libretto
children L9_3dataInstallazione L9_3dataDismissione L9_3fabbricante L9_3modello
used by
element impianto/scheda_9_altriComponenti/L9_3_AltriComponentiSC/rowSCcal
annotation
documentation

                dati degli scambiatori di calore

source <xs:complexType name="rowSCcal">
  <xs:annotation>
    <xs:documentation>
                dati degli scambiatori di calore
                </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="L9_3dataInstallazione" type="data" minOccurs="0"/>
    <xs:element name="L9_3dataDismissione" type="data" minOccurs="0"/>
    <xs:element name="L9_3fabbricante" type="fabbricante" minOccurs="0"/>
    <xs:element name="L9_3modello" type="xs:string" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element rowSCcal/L9_3dataInstallazione
diagram libretto_diagrams/libretto_p512.png
namespace libretto
type data
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1900-01-01
maxInclusive 2100-12-31
source <xs:element name="L9_3dataInstallazione" type="data" minOccurs="0"/>

element rowSCcal/L9_3dataDismissione
diagram libretto_diagrams/libretto_p513.png
namespace libretto
type data
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1900-01-01
maxInclusive 2100-12-31
source <xs:element name="L9_3dataDismissione" type="data" minOccurs="0"/>

element rowSCcal/L9_3fabbricante
diagram libretto_diagrams/libretto_p514.png
namespace libretto
type fabbricante
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L9_3fabbricante" type="fabbricante" minOccurs="0"/>

element rowSCcal/L9_3modello
diagram libretto_diagrams/libretto_p515.png
namespace libretto
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L9_3modello" type="xs:string" minOccurs="0"/>

complexType rowSR
diagram libretto_diagrams/libretto_p516.png
namespace libretto
children L5_1dataInstallazioneSR L5_1dataDismissioneSR L5_1fabbricanteSR L5_1modelloSR L5_1numPuntiReg L5_1numLivTemp
used by
element impianto/scheda_5_sistemi_regolazione_contabilizzazione/L5_1flagSistemaRegolazioneCurvaIndipendente
annotation
documentation

                dati dei sistemi di regolazione

source <xs:complexType name="rowSR">
  <xs:annotation>
    <xs:documentation>
                dati dei sistemi di regolazione
                </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="L5_1dataInstallazioneSR" type="data" minOccurs="0"/>
    <xs:element name="L5_1dataDismissioneSR" type="data" minOccurs="0"/>
    <xs:element name="L5_1fabbricanteSR" type="fabbricante" minOccurs="0"/>
    <xs:element name="L5_1modelloSR" type="xs:string" minOccurs="0"/>
    <xs:element name="L5_1numPuntiReg" type="xs:integer" minOccurs="0"/>
    <xs:element name="L5_1numLivTemp" type="xs:integer" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element rowSR/L5_1dataInstallazioneSR
diagram libretto_diagrams/libretto_p517.png
namespace libretto
type data
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1900-01-01
maxInclusive 2100-12-31
source <xs:element name="L5_1dataInstallazioneSR" type="data" minOccurs="0"/>

element rowSR/L5_1dataDismissioneSR
diagram libretto_diagrams/libretto_p518.png
namespace libretto
type data
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1900-01-01
maxInclusive 2100-12-31
source <xs:element name="L5_1dataDismissioneSR" type="data" minOccurs="0"/>

element rowSR/L5_1fabbricanteSR
diagram libretto_diagrams/libretto_p519.png
namespace libretto
type fabbricante
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L5_1fabbricanteSR" type="fabbricante" minOccurs="0"/>

element rowSR/L5_1modelloSR
diagram libretto_diagrams/libretto_p520.png
namespace libretto
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L5_1modelloSR" type="xs:string" minOccurs="0"/>

element rowSR/L5_1numPuntiReg
diagram libretto_diagrams/libretto_p521.png
namespace libretto
type xs:integer
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L5_1numPuntiReg" type="xs:integer" minOccurs="0"/>

element rowSR/L5_1numLivTemp
diagram libretto_diagrams/libretto_p522.png
namespace libretto
type xs:integer
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L5_1numLivTemp" type="xs:integer" minOccurs="0"/>

complexType rowTE
diagram libretto_diagrams/libretto_p523.png
namespace libretto
children L9_1dataInstallazione L9_1dataDismissione L9_1fabbricante L9_1modello L9_1matricola L9_1capacitaNominale L9_1numVentilatori L9_1tipoVentilatori
used by
element impianto/scheda_9_altriComponenti/L9_1_AltriComponentiTE/rowTE
annotation
documentation

                dati delle torri evaporative

source <xs:complexType name="rowTE">
  <xs:annotation>
    <xs:documentation>
                dati delle torri evaporative
                </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="L9_1dataInstallazione" type="data" minOccurs="0"/>
    <xs:element name="L9_1dataDismissione" type="data" minOccurs="0"/>
    <xs:element name="L9_1fabbricante" type="fabbricante" minOccurs="0"/>
    <xs:element name="L9_1modello" type="xs:string" minOccurs="0"/>
    <xs:element name="L9_1matricola" type="xs:string" minOccurs="0"/>
    <xs:element name="L9_1capacitaNominale" type="decimale1" minOccurs="0"/>
    <xs:element name="L9_1numVentilatori" type="xs:integer" minOccurs="0"/>
    <xs:element name="L9_1tipoVentilatori" type="tipo_ventilatori" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element rowTE/L9_1dataInstallazione
diagram libretto_diagrams/libretto_p524.png
namespace libretto
type data
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1900-01-01
maxInclusive 2100-12-31
source <xs:element name="L9_1dataInstallazione" type="data" minOccurs="0"/>

element rowTE/L9_1dataDismissione
diagram libretto_diagrams/libretto_p525.png
namespace libretto
type data
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1900-01-01
maxInclusive 2100-12-31
source <xs:element name="L9_1dataDismissione" type="data" minOccurs="0"/>

element rowTE/L9_1fabbricante
diagram libretto_diagrams/libretto_p526.png
namespace libretto
type fabbricante
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L9_1fabbricante" type="fabbricante" minOccurs="0"/>

element rowTE/L9_1modello
diagram libretto_diagrams/libretto_p527.png
namespace libretto
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L9_1modello" type="xs:string" minOccurs="0"/>

element rowTE/L9_1matricola
diagram libretto_diagrams/libretto_p528.png
namespace libretto
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L9_1matricola" type="xs:string" minOccurs="0"/>

element rowTE/L9_1capacitaNominale
diagram libretto_diagrams/libretto_p529.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L9_1capacitaNominale" type="decimale1" minOccurs="0"/>

element rowTE/L9_1numVentilatori
diagram libretto_diagrams/libretto_p530.png
namespace libretto
type xs:integer
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L9_1numVentilatori" type="xs:integer" minOccurs="0"/>

element rowTE/L9_1tipoVentilatori
diagram libretto_diagrams/libretto_p531.png
namespace libretto
type tipo_ventilatori
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1
maxInclusive 3
source <xs:element name="L9_1tipoVentilatori" type="tipo_ventilatori" minOccurs="0"/>

complexType rowUT
diagram libretto_diagrams/libretto_p532.png
namespace libretto
children L9_5dataInstallazione L9_5dataDismissione L9_5fabbricante L9_5modello L9_5matricola L9_5portataVentMandata L9_5portataVentRipresa L9_5potenzaVentMandata L9_5potenzaVentRipresa
used by
element impianto/scheda_9_altriComponenti/L9_5_AltriComponentiUT/rowUT
annotation
documentation

                        dati di sistemi di trattamento dell'aria

source <xs:complexType name="rowUT">
  <xs:annotation>
    <xs:documentation>
                        dati di sistemi di trattamento dell'aria
                        </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="L9_5dataInstallazione" type="data" minOccurs="0"/>
    <xs:element name="L9_5dataDismissione" type="data" minOccurs="0"/>
    <xs:element name="L9_5fabbricante" type="fabbricante" minOccurs="0"/>
    <xs:element name="L9_5modello" type="xs:string" minOccurs="0"/>
    <xs:element name="L9_5matricola" type="xs:string" minOccurs="0"/>
    <xs:element name="L9_5portataVentMandata" type="decimale1" minOccurs="0"/>
    <xs:element name="L9_5portataVentRipresa" type="decimale1" minOccurs="0"/>
    <xs:element name="L9_5potenzaVentMandata" type="decimale1" minOccurs="0"/>
    <xs:element name="L9_5potenzaVentRipresa" type="decimale1" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element rowUT/L9_5dataInstallazione
diagram libretto_diagrams/libretto_p533.png
namespace libretto
type data
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1900-01-01
maxInclusive 2100-12-31
source <xs:element name="L9_5dataInstallazione" type="data" minOccurs="0"/>

element rowUT/L9_5dataDismissione
diagram libretto_diagrams/libretto_p534.png
namespace libretto
type data
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1900-01-01
maxInclusive 2100-12-31
source <xs:element name="L9_5dataDismissione" type="data" minOccurs="0"/>

element rowUT/L9_5fabbricante
diagram libretto_diagrams/libretto_p535.png
namespace libretto
type fabbricante
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L9_5fabbricante" type="fabbricante" minOccurs="0"/>

element rowUT/L9_5modello
diagram libretto_diagrams/libretto_p536.png
namespace libretto
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L9_5modello" type="xs:string" minOccurs="0"/>

element rowUT/L9_5matricola
diagram libretto_diagrams/libretto_p537.png
namespace libretto
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L9_5matricola" type="xs:string" minOccurs="0"/>

element rowUT/L9_5portataVentMandata
diagram libretto_diagrams/libretto_p538.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L9_5portataVentMandata" type="decimale1" minOccurs="0"/>

element rowUT/L9_5portataVentRipresa
diagram libretto_diagrams/libretto_p539.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L9_5portataVentRipresa" type="decimale1" minOccurs="0"/>

element rowUT/L9_5potenzaVentMandata
diagram libretto_diagrams/libretto_p540.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L9_5potenzaVentMandata" type="decimale1" minOccurs="0"/>

element rowUT/L9_5potenzaVentRipresa
diagram libretto_diagrams/libretto_p541.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L9_5potenzaVentRipresa" type="decimale1" minOccurs="0"/>

complexType rowVE
diagram libretto_diagrams/libretto_p542.png
namespace libretto
children L6_3capacita L6_3apertochiuso
used by
element impianto/scheda_6_sistema_distribuzione/L6_3VasiEspansione/rowVE
annotation
documentation

                dati dei vasi di espansione
                L6_3vaso Aperto vale 1 se il vaso è aperto, 0 se chiuso.

source <xs:complexType name="rowVE">
  <xs:annotation>
    <xs:documentation>
                dati dei vasi di espansione
                L6_3vaso Aperto vale 1 se il vaso è aperto, 0 se chiuso.
                </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="L6_3capacita" type="decimale1"/>
    <xs:element name="L6_3apertochiuso">
      <xs:complexType>
        <xs:annotation>
          <xs:documentation>
                           il vaso può essere di tipo aperto o chiuso. Nel primo caso L6_3flagVasoAperto=1, nel secondo L6_3pressioneVasoChiuso indica la pressione del vaso chiuso.
                        </xs:documentation>
        </xs:annotation>
        <xs:choice>
          <xs:element name="L6_3flagVasoAperto" type="xs:boolean" fixed="true"/>
          <xs:element name="L6_3pressioneVasoChiuso" type="decimale1"/>
        </xs:choice>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element rowVE/L6_3capacita
diagram libretto_diagrams/libretto_p543.png
namespace libretto
type decimale1
properties
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L6_3capacita" type="decimale1"/>

element rowVE/L6_3apertochiuso
diagram libretto_diagrams/libretto_p544.png
namespace libretto
properties
content complex
children L6_3flagVasoAperto L6_3pressioneVasoChiuso
source <xs:element name="L6_3apertochiuso">
  <xs:complexType>
    <xs:annotation>
      <xs:documentation>
                           il vaso può essere di tipo aperto o chiuso. Nel primo caso L6_3flagVasoAperto=1, nel secondo L6_3pressioneVasoChiuso indica la pressione del vaso chiuso.
                        </xs:documentation>
    </xs:annotation>
    <xs:choice>
      <xs:element name="L6_3flagVasoAperto" type="xs:boolean" fixed="true"/>
      <xs:element name="L6_3pressioneVasoChiuso" type="decimale1"/>
    </xs:choice>
  </xs:complexType>
</xs:element>

element rowVE/L6_3apertochiuso/L6_3flagVasoAperto
diagram libretto_diagrams/libretto_p545.png
namespace libretto
type xs:boolean
properties
content simple
fixed true
source <xs:element name="L6_3flagVasoAperto" type="xs:boolean" fixed="true"/>

element rowVE/L6_3apertochiuso/L6_3pressioneVasoChiuso
diagram libretto_diagrams/libretto_p546.png
namespace libretto
type decimale1
properties
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L6_3pressioneVasoChiuso" type="decimale1"/>

complexType rowVM
diagram libretto_diagrams/libretto_p547.png
namespace libretto
children L10_1dataInstallazione L10_1dataDismissione L10_1fabbricante L10_1modello L10_1tipo_ventilazione_meccanica L10_1maxPortataAria L10_1rendimentoRecupero
used by
element impianto/scheda_10_ventilazione/L10_1VentilazMeccanicaVM/rowVM
annotation
documentation

                dati dei sistemi di ventilazione meccanica

source <xs:complexType name="rowVM">
  <xs:annotation>
    <xs:documentation>
                dati dei sistemi di ventilazione meccanica
                </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="L10_1dataInstallazione" type="data" minOccurs="0"/>
    <xs:element name="L10_1dataDismissione" type="data" minOccurs="0"/>
    <xs:element name="L10_1fabbricante" type="fabbricante" minOccurs="0"/>
    <xs:element name="L10_1modello" type="xs:string" minOccurs="0"/>
    <xs:element name="L10_1tipo_ventilazione_meccanica" type="tipo_ventilazione_meccanica" minOccurs="0"/>
    <xs:element name="L10_1maxPortataAria" type="decimale1" minOccurs="0"/>
    <xs:element name="L10_1rendimentoRecupero" type="rendimento" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element rowVM/L10_1dataInstallazione
diagram libretto_diagrams/libretto_p548.png
namespace libretto
type data
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1900-01-01
maxInclusive 2100-12-31
source <xs:element name="L10_1dataInstallazione" type="data" minOccurs="0"/>

element rowVM/L10_1dataDismissione
diagram libretto_diagrams/libretto_p549.png
namespace libretto
type data
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1900-01-01
maxInclusive 2100-12-31
source <xs:element name="L10_1dataDismissione" type="data" minOccurs="0"/>

element rowVM/L10_1fabbricante
diagram libretto_diagrams/libretto_p550.png
namespace libretto
type fabbricante
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L10_1fabbricante" type="fabbricante" minOccurs="0"/>

element rowVM/L10_1modello
diagram libretto_diagrams/libretto_p551.png
namespace libretto
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L10_1modello" type="xs:string" minOccurs="0"/>

element rowVM/L10_1tipo_ventilazione_meccanica
diagram libretto_diagrams/libretto_p552.png
namespace libretto
type tipo_ventilazione_meccanica
properties
minOcc 0
maxOcc 1
content complex
children L10_1flagSolaEstrazione L10_1flagFlussoDoppioRecuperoScambiatoreFlussiIncrociati L10_1flagFlussoDoppioRecuperoTermodinamico L10_1descrAltro
source <xs:element name="L10_1tipo_ventilazione_meccanica" type="tipo_ventilazione_meccanica" minOccurs="0"/>

element rowVM/L10_1maxPortataAria
diagram libretto_diagrams/libretto_p553.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L10_1maxPortataAria" type="decimale1" minOccurs="0"/>

element rowVM/L10_1rendimentoRecupero
diagram libretto_diagrams/libretto_p554.png
namespace libretto
type rendimento
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 0.0
maxInclusive 200.0
fractionDigits 1
source <xs:element name="L10_1rendimentoRecupero" type="rendimento" minOccurs="0"/>

complexType rowVR
diagram libretto_diagrams/libretto_p555.png
namespace libretto
children L5_1dataInstallazioneVR L5_1dataDismissioneVR L5_1fabbricanteVR L5_1modelloVR L5_1numVie L5_1servomotore
used by
element impianto/scheda_5_sistemi_regolazione_contabilizzazione/L5_1valvoleRegolazione
annotation
documentation

                dati delle valvole di regolazione

source <xs:complexType name="rowVR">
  <xs:annotation>
    <xs:documentation>
                dati delle valvole di regolazione
                </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="L5_1dataInstallazioneVR" type="data" minOccurs="0"/>
    <xs:element name="L5_1dataDismissioneVR" type="data" minOccurs="0"/>
    <xs:element name="L5_1fabbricanteVR" type="fabbricante" minOccurs="0"/>
    <xs:element name="L5_1modelloVR" type="xs:string" minOccurs="0"/>
    <xs:element name="L5_1numVie" type="xs:integer" minOccurs="0"/>
    <xs:element name="L5_1servomotore" type="xs:string" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element rowVR/L5_1dataInstallazioneVR
diagram libretto_diagrams/libretto_p556.png
namespace libretto
type data
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1900-01-01
maxInclusive 2100-12-31
source <xs:element name="L5_1dataInstallazioneVR" type="data" minOccurs="0"/>

element rowVR/L5_1dataDismissioneVR
diagram libretto_diagrams/libretto_p557.png
namespace libretto
type data
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1900-01-01
maxInclusive 2100-12-31
source <xs:element name="L5_1dataDismissioneVR" type="data" minOccurs="0"/>

element rowVR/L5_1fabbricanteVR
diagram libretto_diagrams/libretto_p558.png
namespace libretto
type fabbricante
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L5_1fabbricanteVR" type="fabbricante" minOccurs="0"/>

element rowVR/L5_1modelloVR
diagram libretto_diagrams/libretto_p559.png
namespace libretto
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L5_1modelloVR" type="xs:string" minOccurs="0"/>

element rowVR/L5_1numVie
diagram libretto_diagrams/libretto_p560.png
namespace libretto
type xs:integer
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L5_1numVie" type="xs:integer" minOccurs="0"/>

element rowVR/L5_1servomotore
diagram libretto_diagrams/libretto_p561.png
namespace libretto
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L5_1servomotore" type="xs:string" minOccurs="0"/>

complexType tipo_ventilazione_meccanica
diagram libretto_diagrams/libretto_p562.png
namespace libretto
children L10_1flagSolaEstrazione L10_1flagFlussoDoppioRecuperoScambiatoreFlussiIncrociati L10_1flagFlussoDoppioRecuperoTermodinamico L10_1descrAltro
used by
element rowVM/L10_1tipo_ventilazione_meccanica
source <xs:complexType name="tipo_ventilazione_meccanica">
  <xs:choice>
    <xs:element name="L10_1flagSolaEstrazione" type="xs:boolean" fixed="true" minOccurs="0"/>
    <xs:element name="L10_1flagFlussoDoppioRecuperoScambiatoreFlussiIncrociati" type="xs:boolean" fixed="true" minOccurs="0"/>
    <xs:element name="L10_1flagFlussoDoppioRecuperoTermodinamico" type="xs:boolean" fixed="true" minOccurs="0"/>
    <xs:element name="L10_1descrAltro" type="xs:string" minOccurs="0"/>
  </xs:choice>
</xs:complexType>

element tipo_ventilazione_meccanica/L10_1flagSolaEstrazione
diagram libretto_diagrams/libretto_p563.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
fixed true
source <xs:element name="L10_1flagSolaEstrazione" type="xs:boolean" fixed="true" minOccurs="0"/>

element tipo_ventilazione_meccanica/L10_1flagFlussoDoppioRecuperoScambiatoreFlussiIncrociati
diagram libretto_diagrams/libretto_p564.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
fixed true
source <xs:element name="L10_1flagFlussoDoppioRecuperoScambiatoreFlussiIncrociati" type="xs:boolean" fixed="true" minOccurs="0"/>

element tipo_ventilazione_meccanica/L10_1flagFlussoDoppioRecuperoTermodinamico
diagram libretto_diagrams/libretto_p565.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
fixed true
source <xs:element name="L10_1flagFlussoDoppioRecuperoTermodinamico" type="xs:boolean" fixed="true" minOccurs="0"/>

element tipo_ventilazione_meccanica/L10_1descrAltro
diagram libretto_diagrams/libretto_p566.png
namespace libretto
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L10_1descrAltro" type="xs:string" minOccurs="0"/>

complexType tratt_H2O
diagram libretto_diagrams/libretto_p567.png
namespace libretto
children L2_3flagTrattamentoAssente L2_3altro_trattH2O
used by
element impianto/scheda_2_trattamento_acqua/L2_3sez_tratt_H2O
annotation
documentation

                Il trattamento dell'acqua dell'impianto di climatizzazione può essere assente o se presente vanno riempiti gli elementi di altro_tratt.
                Nel caso di trattamento di addolcimento il flag è stato omesso e va inserito il valore della durezza dell'acqua perchè obbligatoria nel caso di addolcimento.

source <xs:complexType name="tratt_H2O">
  <xs:annotation>
    <xs:documentation>
                Il trattamento dell'acqua dell'impianto di climatizzazione può essere assente o se presente vanno riempiti gli elementi di altro_tratt.
                Nel caso di trattamento di addolcimento il flag è stato omesso e va inserito il valore della durezza dell'acqua perchè obbligatoria nel caso di addolcimento.
                </xs:documentation>
  </xs:annotation>
  <xs:choice>
    <xs:element name="L2_3flagTrattamentoAssente" type="xs:boolean" fixed="true" minOccurs="0"/>
    <xs:element name="L2_3altro_trattH2O" type="altro_trattH2O" minOccurs="0"/>
  </xs:choice>
</xs:complexType>

element tratt_H2O/L2_3flagTrattamentoAssente
diagram libretto_diagrams/libretto_p568.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
fixed true
source <xs:element name="L2_3flagTrattamentoAssente" type="xs:boolean" fixed="true" minOccurs="0"/>

element tratt_H2O/L2_3altro_trattH2O
diagram libretto_diagrams/libretto_p569.png
namespace libretto
type altro_trattH2O
properties
minOcc 0
maxOcc 1
content complex
children L2_3flagFiltrazione L2_3AddolcimentoDurezzaTotaleH2O L2_3flagCondizChimico
source <xs:element name="L2_3altro_trattH2O" type="altro_trattH2O" minOccurs="0"/>

complexType tratt_H2O_ACS
diagram libretto_diagrams/libretto_p570.png
namespace libretto
children L2_4flagAssenteACS altro_tratt_ACS
used by
element impianto/scheda_2_trattamento_acqua/L2_4sez_tratt_H2O_ACS
annotation
documentation

                Il trattamento dell'acqua calda sanitaria può essere assente o se presente vanno riempiti gli elementi di altro_tratt.
                Nel caso di trattamento di addolcimento il flag è stato omesso e va inserito il valore della durezza dell'acqua perchè obbligatoria nel caso di addolcimento.

source <xs:complexType name="tratt_H2O_ACS">
  <xs:annotation>
    <xs:documentation>
                Il trattamento dell'acqua calda sanitaria può essere assente o se presente vanno riempiti gli elementi di altro_tratt.
                Nel caso di trattamento di addolcimento il flag è stato omesso e va inserito il valore della durezza dell'acqua perchè obbligatoria nel caso di addolcimento.
                </xs:documentation>
  </xs:annotation>
  <xs:choice>
    <xs:element name="L2_4flagAssenteACS" type="xs:boolean" fixed="true" minOccurs="0"/>
    <xs:element name="altro_tratt_ACS" minOccurs="0">
      <xs:complexType>
        <xs:sequence>
          <xs:element name="L2_4flagFiltrazioneACS" type="xs:boolean"/>
          <xs:element name="L2_4flagCondizChimicoACS" type="xs:boolean"/>
          <xs:element name="L2_4AddolcimentoDurezzaTotaleH2OACS" type="decimale1" minOccurs="0"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:choice>
</xs:complexType>

element tratt_H2O_ACS/L2_4flagAssenteACS
diagram libretto_diagrams/libretto_p571.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
fixed true
source <xs:element name="L2_4flagAssenteACS" type="xs:boolean" fixed="true" minOccurs="0"/>

element tratt_H2O_ACS/altro_tratt_ACS
diagram libretto_diagrams/libretto_p572.png
namespace libretto
properties
minOcc 0
maxOcc 1
content complex
children L2_4flagFiltrazioneACS L2_4flagCondizChimicoACS L2_4AddolcimentoDurezzaTotaleH2OACS
source <xs:element name="altro_tratt_ACS" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="L2_4flagFiltrazioneACS" type="xs:boolean"/>
      <xs:element name="L2_4flagCondizChimicoACS" type="xs:boolean"/>
      <xs:element name="L2_4AddolcimentoDurezzaTotaleH2OACS" type="decimale1" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tratt_H2O_ACS/altro_tratt_ACS/L2_4flagFiltrazioneACS
diagram libretto_diagrams/libretto_p573.png
namespace libretto
type xs:boolean
properties
content simple
source <xs:element name="L2_4flagFiltrazioneACS" type="xs:boolean"/>

element tratt_H2O_ACS/altro_tratt_ACS/L2_4flagCondizChimicoACS
diagram libretto_diagrams/libretto_p574.png
namespace libretto
type xs:boolean
properties
content simple
source <xs:element name="L2_4flagCondizChimicoACS" type="xs:boolean"/>

element tratt_H2O_ACS/altro_tratt_ACS/L2_4AddolcimentoDurezzaTotaleH2OACS
diagram libretto_diagrams/libretto_p575.png
namespace libretto
type decimale1
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L2_4AddolcimentoDurezzaTotaleH2OACS" type="decimale1" minOccurs="0"/>

complexType tratt_H2O_climaEst
diagram libretto_diagrams/libretto_p576.png
namespace libretto
children L2_5flagAssente L2_5altro_tratt_H2O_climaEst
used by
element impianto/scheda_2_trattamento_acqua/L2_5sez_tratt_H2O_climaEst
annotation
documentation

                Il trattamento dell'acqua per l'impianto di climatizzazione estivo può essere assente o se presente vanno riempiti gli elementi di altro_tratt.


source <xs:complexType name="tratt_H2O_climaEst">
  <xs:annotation>
    <xs:documentation>
                Il trattamento dell'acqua per l'impianto di climatizzazione estivo può essere assente o se presente vanno riempiti gli elementi di altro_tratt.

                </xs:documentation>
  </xs:annotation>
  <xs:choice>
    <xs:element name="L2_5flagAssente" type="xs:boolean" fixed="true" minOccurs="0"/>
    <xs:element name="L2_5altro_tratt_H2O_climaEst" minOccurs="0">
      <xs:complexType>
        <xs:sequence>
          <xs:element name="L2_5circuito_raffreddamento" type="tipo_circuito_raffreddamento" minOccurs="0"/>
          <xs:element name="L2_5origine_H2O_alimento" type="origine_H2O_alimento" minOccurs="0"/>
          <xs:element name="L2_5tratt_H2O_esist" type="tratt_H2O_esist" minOccurs="0"/>
          <xs:element name="L2_5gestione_torre_raff" type="gestione_torre_raff" minOccurs="0"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:choice>
</xs:complexType>

element tratt_H2O_climaEst/L2_5flagAssente
diagram libretto_diagrams/libretto_p577.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
fixed true
source <xs:element name="L2_5flagAssente" type="xs:boolean" fixed="true" minOccurs="0"/>

element tratt_H2O_climaEst/L2_5altro_tratt_H2O_climaEst
diagram libretto_diagrams/libretto_p578.png
namespace libretto
properties
minOcc 0
maxOcc 1
content complex
children L2_5circuito_raffreddamento L2_5origine_H2O_alimento L2_5tratt_H2O_esist L2_5gestione_torre_raff
source <xs:element name="L2_5altro_tratt_H2O_climaEst" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="L2_5circuito_raffreddamento" type="tipo_circuito_raffreddamento" minOccurs="0"/>
      <xs:element name="L2_5origine_H2O_alimento" type="origine_H2O_alimento" minOccurs="0"/>
      <xs:element name="L2_5tratt_H2O_esist" type="tratt_H2O_esist" minOccurs="0"/>
      <xs:element name="L2_5gestione_torre_raff" type="gestione_torre_raff" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tratt_H2O_climaEst/L2_5altro_tratt_H2O_climaEst/L2_5circuito_raffreddamento
diagram libretto_diagrams/libretto_p579.png
namespace libretto
type tipo_circuito_raffreddamento
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1
maxInclusive 3
source <xs:element name="L2_5circuito_raffreddamento" type="tipo_circuito_raffreddamento" minOccurs="0"/>

element tratt_H2O_climaEst/L2_5altro_tratt_H2O_climaEst/L2_5origine_H2O_alimento
diagram libretto_diagrams/libretto_p580.png
namespace libretto
type origine_H2O_alimento
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1
maxInclusive 3
source <xs:element name="L2_5origine_H2O_alimento" type="origine_H2O_alimento" minOccurs="0"/>

element tratt_H2O_climaEst/L2_5altro_tratt_H2O_climaEst/L2_5tratt_H2O_esist
diagram libretto_diagrams/libretto_p581.png
namespace libretto
type tratt_H2O_esist
properties
minOcc 0
maxOcc 1
content complex
children L2_5Filtrazione L2_5TrattamentoH2O L2_5CondizChimico
source <xs:element name="L2_5tratt_H2O_esist" type="tratt_H2O_esist" minOccurs="0"/>

element tratt_H2O_climaEst/L2_5altro_tratt_H2O_climaEst/L2_5gestione_torre_raff
diagram libretto_diagrams/libretto_p582.png
namespace libretto
type gestione_torre_raff
properties
minOcc 0
maxOcc 1
content complex
children L2_5conducibH2Oingresso L2_5taraturaSpurgo
source <xs:element name="L2_5gestione_torre_raff" type="gestione_torre_raff" minOccurs="0"/>

complexType tratt_H2O_esist
diagram libretto_diagrams/libretto_p583.png
namespace libretto
children L2_5Filtrazione L2_5TrattamentoH2O L2_5CondizChimico
used by
element tratt_H2O_climaEst/L2_5altro_tratt_H2O_climaEst/L2_5tratt_H2O_esist
annotation
documentation

             I flag filtrazione, trattamento acqua e condizionamento chimico presenti nel documento pdf D.M.10/2014 sono stati omessi e si intendono valorizzati in base alla scelta di un elemento nelle liste
             dei rispettivi trattamenti.

source <xs:complexType name="tratt_H2O_esist">
  <xs:annotation>
    <xs:documentation>
             I flag filtrazione, trattamento acqua e condizionamento chimico presenti nel documento pdf D.M.10/2014 sono stati omessi e si intendono valorizzati in base alla scelta di un elemento nelle liste
             dei rispettivi trattamenti.
      </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="L2_5Filtrazione" type="Filtrazione" minOccurs="0"/>
    <xs:element name="L2_5TrattamentoH2O" type="TrattamentoH2O" minOccurs="0"/>
    <xs:element name="L2_5CondizChimico" type="CondizChimico" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element tratt_H2O_esist/L2_5Filtrazione
diagram libretto_diagrams/libretto_p584.png
namespace libretto
type Filtrazione
properties
minOcc 0
maxOcc 1
content complex
children L2_5flagFiltrazioneFiltrazioneSicurezza L2_5flagFiltrazioneFiltrazioneMasse L2_5flagFiltrazioneNessunTrattamento L2_5DescrAltroFiltrazione
source <xs:element name="L2_5Filtrazione" type="Filtrazione" minOccurs="0"/>

element tratt_H2O_esist/L2_5TrattamentoH2O
diagram libretto_diagrams/libretto_p585.png
namespace libretto
type TrattamentoH2O
properties
minOcc 0
maxOcc 1
content complex
children L2_5flagTrattamentoAddolcimento L2_5flagTrattamentoOsmosiInversa L2_5flagTrattamentoDemineralizzazione L2_5flagNessunTrattamentH2O L2_5DescrAltroTrattamentoH2O
source <xs:element name="L2_5TrattamentoH2O" type="TrattamentoH2O" minOccurs="0"/>

element tratt_H2O_esist/L2_5CondizChimico
diagram libretto_diagrams/libretto_p586.png
namespace libretto
type CondizChimico
properties
minOcc 0
maxOcc 1
content complex
children L2_5TflagCondizChimicoPrevalenteAzioneAntincrostante L2_5TflagCondizChimicoPrevalenteAzioneAnticorrosiva L2_5TflagCondizChimicoAzioneAntincrostanteAnticorrosiva L2_5TflagCondizChimicoBiocida L2_5TflagCondizChimicoNessunTrattamento L2_5DescrAltroCondizChimico
source <xs:element name="L2_5CondizChimico" type="CondizChimico" minOccurs="0"/>

complexType tratt_H2O_gelo
diagram libretto_diagrams/libretto_p587.png
namespace libretto
children L2_3flagAssenteProtGelo L2_3flagGlicoleEtilenico L2_3flagGlicolePropilenico
used by
element impianto/scheda_2_trattamento_acqua/L2_3sez_tratt_H2O_gelo
annotation
documentation

                Il trattamento dell'acqua per il gelo può essere assente o se presente vanno riempiti gli elementi seguenti

source <xs:complexType name="tratt_H2O_gelo">
  <xs:annotation>
    <xs:documentation>
                Il trattamento dell'acqua per il gelo può essere assente o se presente vanno riempiti gli elementi seguenti
                </xs:documentation>
  </xs:annotation>
  <xs:choice>
    <xs:element name="L2_3flagAssenteProtGelo" type="xs:boolean" fixed="true" minOccurs="0"/>
    <xs:element name="L2_3flagGlicoleEtilenico" minOccurs="0">
      <xs:complexType>
        <xs:sequence>
          <xs:element name="L2_3percConcentrazEtilenico" type="decimale1"/>
          <xs:element name="L2_3PHconcentrazEtilenico" type="decimale1"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="L2_3flagGlicolePropilenico" minOccurs="0">
      <xs:complexType>
        <xs:sequence>
          <xs:element name="L2_3percConcentrazPropilenico" type="decimale1"/>
          <xs:element name="L2_3PHconcentrazPropilenico" type="decimale1"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:choice>
</xs:complexType>

element tratt_H2O_gelo/L2_3flagAssenteProtGelo
diagram libretto_diagrams/libretto_p588.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
fixed true
source <xs:element name="L2_3flagAssenteProtGelo" type="xs:boolean" fixed="true" minOccurs="0"/>

element tratt_H2O_gelo/L2_3flagGlicoleEtilenico
diagram libretto_diagrams/libretto_p589.png
namespace libretto
properties
minOcc 0
maxOcc 1
content complex
children L2_3percConcentrazEtilenico L2_3PHconcentrazEtilenico
source <xs:element name="L2_3flagGlicoleEtilenico" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="L2_3percConcentrazEtilenico" type="decimale1"/>
      <xs:element name="L2_3PHconcentrazEtilenico" type="decimale1"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tratt_H2O_gelo/L2_3flagGlicoleEtilenico/L2_3percConcentrazEtilenico
diagram libretto_diagrams/libretto_p590.png
namespace libretto
type decimale1
properties
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L2_3percConcentrazEtilenico" type="decimale1"/>

element tratt_H2O_gelo/L2_3flagGlicoleEtilenico/L2_3PHconcentrazEtilenico
diagram libretto_diagrams/libretto_p591.png
namespace libretto
type decimale1
properties
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L2_3PHconcentrazEtilenico" type="decimale1"/>

element tratt_H2O_gelo/L2_3flagGlicolePropilenico
diagram libretto_diagrams/libretto_p592.png
namespace libretto
properties
minOcc 0
maxOcc 1
content complex
children L2_3percConcentrazPropilenico L2_3PHconcentrazPropilenico
source <xs:element name="L2_3flagGlicolePropilenico" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="L2_3percConcentrazPropilenico" type="decimale1"/>
      <xs:element name="L2_3PHconcentrazPropilenico" type="decimale1"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tratt_H2O_gelo/L2_3flagGlicolePropilenico/L2_3percConcentrazPropilenico
diagram libretto_diagrams/libretto_p593.png
namespace libretto
type decimale1
properties
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L2_3percConcentrazPropilenico" type="decimale1"/>

element tratt_H2O_gelo/L2_3flagGlicolePropilenico/L2_3PHconcentrazPropilenico
diagram libretto_diagrams/libretto_p594.png
namespace libretto
type decimale1
properties
content simple
facets
Kind Value Annotation
fractionDigits 1
source <xs:element name="L2_3PHconcentrazPropilenico" type="decimale1"/>

complexType TrattamentoH2O
diagram libretto_diagrams/libretto_p595.png
namespace libretto
children L2_5flagTrattamentoAddolcimento L2_5flagTrattamentoOsmosiInversa L2_5flagTrattamentoDemineralizzazione L2_5flagNessunTrattamentH2O L2_5DescrAltroTrattamentoH2O
used by
element tratt_H2O_esist/L2_5TrattamentoH2O
source <xs:complexType name="TrattamentoH2O">
  <xs:choice>
    <xs:element name="L2_5flagTrattamentoAddolcimento" type="xs:boolean" fixed="true" minOccurs="0"/>
    <xs:element name="L2_5flagTrattamentoOsmosiInversa" type="xs:boolean" fixed="true" minOccurs="0"/>
    <xs:element name="L2_5flagTrattamentoDemineralizzazione" type="xs:boolean" fixed="true" minOccurs="0"/>
    <xs:element name="L2_5flagNessunTrattamentH2O" type="xs:boolean" fixed="true" minOccurs="0"/>
    <xs:element name="L2_5DescrAltroTrattamentoH2O" type="xs:string" minOccurs="0"/>
  </xs:choice>
</xs:complexType>

element TrattamentoH2O/L2_5flagTrattamentoAddolcimento
diagram libretto_diagrams/libretto_p596.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
fixed true
source <xs:element name="L2_5flagTrattamentoAddolcimento" type="xs:boolean" fixed="true" minOccurs="0"/>

element TrattamentoH2O/L2_5flagTrattamentoOsmosiInversa
diagram libretto_diagrams/libretto_p597.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
fixed true
source <xs:element name="L2_5flagTrattamentoOsmosiInversa" type="xs:boolean" fixed="true" minOccurs="0"/>

element TrattamentoH2O/L2_5flagTrattamentoDemineralizzazione
diagram libretto_diagrams/libretto_p598.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
fixed true
source <xs:element name="L2_5flagTrattamentoDemineralizzazione" type="xs:boolean" fixed="true" minOccurs="0"/>

element TrattamentoH2O/L2_5flagNessunTrattamentH2O
diagram libretto_diagrams/libretto_p599.png
namespace libretto
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
fixed true
source <xs:element name="L2_5flagNessunTrattamentH2O" type="xs:boolean" fixed="true" minOccurs="0"/>

element TrattamentoH2O/L2_5DescrAltroTrattamentoH2O
diagram libretto_diagrams/libretto_p600.png
namespace libretto
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L2_5DescrAltroTrattamentoH2O" type="xs:string" minOccurs="0"/>

complexType unitaimmobiliare
diagram libretto_diagrams/libretto_p601.png
namespace libretto
children L1_2subalterno L1_2piano L1_2palazzo L1_2scala L1_2interno L1_2DPR412 L1_2codice_ape intestazione_elettrica intestazione_termica
used by
element dati_catastali/L1_2unitaimmobiliare
annotation
documentation
Contiene i dati relativi alle singole unita immobiliari. L1_2DPR412 rappresenta la categoria immobiliare (E.1, E.2,...).
source <xs:complexType name="unitaimmobiliare">
  <xs:annotation>
    <xs:documentation>Contiene i dati relativi alle singole unita immobiliari. L1_2DPR412 rappresenta la categoria immobiliare (E.1, E.2,...).</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="L1_2subalterno" type="xs:integer"/>
    <xs:element name="L1_2piano" type="xs:string" minOccurs="0"/>
    <xs:element name="L1_2palazzo" type="xs:string" minOccurs="0"/>
    <xs:element name="L1_2scala" type="xs:string" minOccurs="0"/>
    <xs:element name="L1_2interno" type="xs:string" minOccurs="0"/>
    <xs:element name="L1_2DPR412" type="dpr412"/>
    <xs:element name="L1_2codice_ape" type="xs:string" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element name="intestazione_elettrica" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>
                                                intestatari della fornitura elettrica, possono esserci più intestatari sullo stesso impianto
                                                (quando nel libretto viene annotato lo storico, quindi hanno date di inizio e fine contratto)
                                                l'intestatario è identificato solo a mezzo del codice fiscale e/o PIVA (e n°REA)
                                                possono anche esserci più POD, nel caso un intestatario abbia più POD a suo nome ripetere tutto
                                                l'elemento intestazione_elettrica
</xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence>
          <xs:element name="L1_2data_inizio_POD" type="data" minOccurs="0"/>
          <xs:element name="L1_2data_fine_POD" type="data" minOccurs="0"/>
          <xs:element name="L1_2POD" type="POD" minOccurs="0"/>
          <xs:element name="L1_2Codice_Fiscale_Persona_Generica_POD" type="codice_fiscale" minOccurs="0"/>
          <xs:element name="L1_2Partita_Iva_POD" type="partita_IVA" minOccurs="0"/>
          <xs:element name="L1_2REA_POD" type="REA" minOccurs="0"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="intestazione_termica" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>
   intestatari della fornitura termica, possono esserci più intestatari sullo stesso impianto per via della data di inizio e fine contratto
   l'intestatario è identificato solo a mezzo del codice fiscale e/o PIVA (e n°REA)
   possono anche esserci più PDR, nel caso un intestatario abbia più PDR a suo nome ripetere tutto l'elemento intestazione_termica
</xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence>
          <xs:element name="L1_2data_inizio_PDR" type="data" minOccurs="0"/>
          <xs:element name="L1_2data_fine_PDR" type="data" minOccurs="0"/>
          <xs:element name="L1_2PDR" type="PDR" minOccurs="0"/>
          <xs:element name="L1_2Codice_Fiscale_Persona_Generica_PDR" type="codice_fiscale" minOccurs="0"/>
          <xs:element name="L1_2Partita_Iva_PDR" type="partita_IVA" minOccurs="0"/>
          <xs:element name="L1_2REA_PDR" type="REA" minOccurs="0"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element unitaimmobiliare/L1_2subalterno
diagram libretto_diagrams/libretto_p602.png
namespace libretto
type xs:integer
properties
content simple
source <xs:element name="L1_2subalterno" type="xs:integer"/>

element unitaimmobiliare/L1_2piano
diagram libretto_diagrams/libretto_p603.png
namespace libretto
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L1_2piano" type="xs:string" minOccurs="0"/>

element unitaimmobiliare/L1_2palazzo
diagram libretto_diagrams/libretto_p604.png
namespace libretto
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L1_2palazzo" type="xs:string" minOccurs="0"/>

element unitaimmobiliare/L1_2scala
diagram libretto_diagrams/libretto_p605.png
namespace libretto
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L1_2scala" type="xs:string" minOccurs="0"/>

element unitaimmobiliare/L1_2interno
diagram libretto_diagrams/libretto_p606.png
namespace libretto
type xs:string
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="L1_2interno" type="xs:string" minOccurs="0"/>

element unitaimmobiliare/L1_2DPR412
diagram libretto_diagrams/libretto_p607.png
namespace libretto
type dpr412
properties
content simple
facets
Kind Value Annotation
minInclusive 1
maxInclusive 8
source <xs:element name="L1_2DPR412" type="dpr412"/>

element unitaimmobiliare/L1_2codice_ape
diagram libretto_diagrams/libretto_p608.png
namespace libretto
type xs:string
properties
minOcc 0
maxOcc unbounded
content simple
source <xs:element name="L1_2codice_ape" type="xs:string" minOccurs="0" maxOccurs="unbounded"/>

element unitaimmobiliare/intestazione_elettrica
diagram libretto_diagrams/libretto_p609.png
namespace libretto
properties
minOcc 0
maxOcc unbounded
content complex
children L1_2data_inizio_POD L1_2data_fine_POD L1_2POD L1_2Codice_Fiscale_Persona_Generica_POD L1_2Partita_Iva_POD L1_2REA_POD
annotation
documentation

                                                intestatari della fornitura elettrica, possono esserci più intestatari sullo stesso impianto
                                                (quando nel libretto viene annotato lo storico, quindi hanno date di inizio e fine contratto)
                                                l'intestatario è identificato solo a mezzo del codice fiscale e/o PIVA (e n°REA)
                                                possono anche esserci più POD, nel caso un intestatario abbia più POD a suo nome ripetere tutto
                                                l'elemento intestazione_elettrica
source <xs:element name="intestazione_elettrica" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>
                                                intestatari della fornitura elettrica, possono esserci più intestatari sullo stesso impianto
                                                (quando nel libretto viene annotato lo storico, quindi hanno date di inizio e fine contratto)
                                                l'intestatario è identificato solo a mezzo del codice fiscale e/o PIVA (e n°REA)
                                                possono anche esserci più POD, nel caso un intestatario abbia più POD a suo nome ripetere tutto
                                                l'elemento intestazione_elettrica
</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="L1_2data_inizio_POD" type="data" minOccurs="0"/>
      <xs:element name="L1_2data_fine_POD" type="data" minOccurs="0"/>
      <xs:element name="L1_2POD" type="POD" minOccurs="0"/>
      <xs:element name="L1_2Codice_Fiscale_Persona_Generica_POD" type="codice_fiscale" minOccurs="0"/>
      <xs:element name="L1_2Partita_Iva_POD" type="partita_IVA" minOccurs="0"/>
      <xs:element name="L1_2REA_POD" type="REA" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element unitaimmobiliare/intestazione_elettrica/L1_2data_inizio_POD
diagram libretto_diagrams/libretto_p610.png
namespace libretto
type data
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1900-01-01
maxInclusive 2100-12-31
source <xs:element name="L1_2data_inizio_POD" type="data" minOccurs="0"/>

element unitaimmobiliare/intestazione_elettrica/L1_2data_fine_POD
diagram libretto_diagrams/libretto_p611.png
namespace libretto
type data
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1900-01-01
maxInclusive 2100-12-31
source <xs:element name="L1_2data_fine_POD" type="data" minOccurs="0"/>

element unitaimmobiliare/intestazione_elettrica/L1_2POD
diagram libretto_diagrams/libretto_p612.png
namespace libretto
type POD
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
length 15
pattern [a-zA-Z]{2}[0-9]{3}[a-zA-Z]{1}[0-9]{9}
source <xs:element name="L1_2POD" type="POD" minOccurs="0"/>

element unitaimmobiliare/intestazione_elettrica/L1_2Codice_Fiscale_Persona_Generica_POD
diagram libretto_diagrams/libretto_p613.png
namespace libretto
type codice_fiscale
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
pattern [0-9]{11}
pattern [A-Z]{6}[0-9LMNPQRSTUV]{2}[ABCDEHLMPRST][0-9LMNPQRSTUV]{2}[A-Z][0-9LMNPQRSTUV]{3}[A-Z]
source <xs:element name="L1_2Codice_Fiscale_Persona_Generica_POD" type="codice_fiscale" minOccurs="0"/>

element unitaimmobiliare/intestazione_elettrica/L1_2Partita_Iva_POD
diagram libretto_diagrams/libretto_p614.png
namespace libretto
type partita_IVA
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
length 11
pattern [0-9]{11}
source <xs:element name="L1_2Partita_Iva_POD" type="partita_IVA" minOccurs="0"/>

element unitaimmobiliare/intestazione_elettrica/L1_2REA_POD
diagram libretto_diagrams/libretto_p615.png
namespace libretto
type REA
properties
minOcc 0
maxOcc 1
content complex
children Sigla_Localita_Impresa numero_REA
source <xs:element name="L1_2REA_POD" type="REA" minOccurs="0"/>

element unitaimmobiliare/intestazione_termica
diagram libretto_diagrams/libretto_p616.png
namespace libretto
properties
minOcc 0
maxOcc unbounded
content complex
children L1_2data_inizio_PDR L1_2data_fine_PDR L1_2PDR L1_2Codice_Fiscale_Persona_Generica_PDR L1_2Partita_Iva_PDR L1_2REA_PDR
annotation
documentation

   intestatari della fornitura termica, possono esserci più intestatari sullo stesso impianto per via della data di inizio e fine contratto
   l'intestatario è identificato solo a mezzo del codice fiscale e/o PIVA (e n°REA)
   possono anche esserci più PDR, nel caso un intestatario abbia più PDR a suo nome ripetere tutto l'elemento intestazione_termica
source <xs:element name="intestazione_termica" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>
   intestatari della fornitura termica, possono esserci più intestatari sullo stesso impianto per via della data di inizio e fine contratto
   l'intestatario è identificato solo a mezzo del codice fiscale e/o PIVA (e n°REA)
   possono anche esserci più PDR, nel caso un intestatario abbia più PDR a suo nome ripetere tutto l'elemento intestazione_termica
</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="L1_2data_inizio_PDR" type="data" minOccurs="0"/>
      <xs:element name="L1_2data_fine_PDR" type="data" minOccurs="0"/>
      <xs:element name="L1_2PDR" type="PDR" minOccurs="0"/>
      <xs:element name="L1_2Codice_Fiscale_Persona_Generica_PDR" type="codice_fiscale" minOccurs="0"/>
      <xs:element name="L1_2Partita_Iva_PDR" type="partita_IVA" minOccurs="0"/>
      <xs:element name="L1_2REA_PDR" type="REA" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element unitaimmobiliare/intestazione_termica/L1_2data_inizio_PDR
diagram libretto_diagrams/libretto_p617.png
namespace libretto
type data
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1900-01-01
maxInclusive 2100-12-31
source <xs:element name="L1_2data_inizio_PDR" type="data" minOccurs="0"/>

element unitaimmobiliare/intestazione_termica/L1_2data_fine_PDR
diagram libretto_diagrams/libretto_p618.png
namespace libretto
type data
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1900-01-01
maxInclusive 2100-12-31
source <xs:element name="L1_2data_fine_PDR" type="data" minOccurs="0"/>

element unitaimmobiliare/intestazione_termica/L1_2PDR
diagram libretto_diagrams/libretto_p619.png
namespace libretto
type PDR
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
length 14
pattern [0-9]{14}
source <xs:element name="L1_2PDR" type="PDR" minOccurs="0"/>

element unitaimmobiliare/intestazione_termica/L1_2Codice_Fiscale_Persona_Generica_PDR
diagram libretto_diagrams/libretto_p620.png
namespace libretto
type codice_fiscale
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
pattern [0-9]{11}
pattern [A-Z]{6}[0-9LMNPQRSTUV]{2}[ABCDEHLMPRST][0-9LMNPQRSTUV]{2}[A-Z][0-9LMNPQRSTUV]{3}[A-Z]
source <xs:element name="L1_2Codice_Fiscale_Persona_Generica_PDR" type="codice_fiscale" minOccurs="0"/>

element unitaimmobiliare/intestazione_termica/L1_2Partita_Iva_PDR
diagram libretto_diagrams/libretto_p621.png
namespace libretto
type partita_IVA
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
length 11
pattern [0-9]{11}
source <xs:element name="L1_2Partita_Iva_PDR" type="partita_IVA" minOccurs="0"/>

element unitaimmobiliare/intestazione_termica/L1_2REA_PDR
diagram libretto_diagrams/libretto_p622.png
namespace libretto
type REA
properties
minOcc 0
maxOcc 1
content complex
children Sigla_Localita_Impresa numero_REA
source <xs:element name="L1_2REA_PDR" type="REA" minOccurs="0"/>

simpleType anno
namespace libretto
type restriction of xs:integer
properties
base xs:integer
used by
elements consumi_esercizi/consumo_combustibile/L14_1annoFin consumi_esercizi/consumo_combustibile/L14_1annoIn consumi_esercizi/energia_elettrica/L14_2annoFin consumi_esercizi/energia_elettrica/L14_2annoIn consumi_esercizi/acqua_impianto_termico/L14_3annoFin consumi_esercizi/acqua_impianto_termico/L14_3annoIn consumi_esercizi/prodotti_chimici_trattamento_acqua/L14_4annoFin consumi_esercizi/prodotti_chimici_trattamento_acqua/L14_4annoIn
facets
Kind Value Annotation
minExclusive 1900
maxExclusive 2100
source <xs:simpleType name="anno">
  <xs:restriction base="xs:integer">
    <xs:minExclusive value="1900"/>
    <xs:maxExclusive value="2100"/>
  </xs:restriction>
</xs:simpleType>

simpleType CAP
namespace libretto
type restriction of xs:string
properties
base xs:string
facets
Kind Value Annotation
length 5
pattern [0-9]{5}
source <xs:simpleType name="CAP">
  <xs:restriction base="xs:string">
    <xs:length value="5"/>
    <xs:pattern value="[0-9]{5}"/>
  </xs:restriction>
</xs:simpleType>

simpleType codice_catastale_comune
namespace libretto
type restriction of xs:string
properties
base xs:string
used by
element dati_catastali/L1_2codice_catastale_comune
facets
Kind Value Annotation
length 4
pattern [a-zA-Z]{1}[0-9]{3}
source <xs:simpleType name="codice_catastale_comune">
  <xs:restriction base="xs:string">
    <xs:length value="4"/>
    <xs:pattern value="[a-zA-Z]{1}[0-9]{3}"/>
  </xs:restriction>
</xs:simpleType>

simpleType codice_fiscale
namespace libretto
type restriction of xs:string
properties
base xs:string
used by
elements persona_fisica/codice_fiscale unitaimmobiliare/intestazione_termica/L1_2Codice_Fiscale_Persona_Generica_PDR unitaimmobiliare/intestazione_elettrica/L1_2Codice_Fiscale_Persona_Generica_POD
facets
Kind Value Annotation
pattern [0-9]{11}
pattern [A-Z]{6}[0-9LMNPQRSTUV]{2}[ABCDEHLMPRST][0-9LMNPQRSTUV]{2}[A-Z][0-9LMNPQRSTUV]{3}[A-Z]
annotation
documentation
Definizione secondo definizione AGID
source <xs:simpleType name="codice_fiscale">
  <xs:annotation>
    <xs:documentation>Definizione secondo definizione AGID</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:pattern value="[0-9]{11}"/>
    <xs:pattern value="[A-Z]{6}[0-9LMNPQRSTUV]{2}[ABCDEHLMPRST][0-9LMNPQRSTUV]{2}[A-Z][0-9LMNPQRSTUV]{3}[A-Z]"/>
  </xs:restriction>
</xs:simpleType>

simpleType codice_istat_comune
namespace libretto
type restriction of xs:string
properties
base xs:string
facets
Kind Value Annotation
length 6
pattern [0-9]{6}
source <xs:simpleType name="codice_istat_comune">
  <xs:restriction base="xs:string">
    <xs:length value="6"/>
    <xs:pattern value="[0-9]{6}"/>
  </xs:restriction>
</xs:simpleType>

simpleType codice_provincia
namespace libretto
type restriction of xs:string
properties
base xs:string
used by
element REA/Sigla_Localita_Impresa
facets
Kind Value Annotation
pattern [A-Z]{2}
source <xs:simpleType name="codice_provincia">
  <xs:restriction base="xs:string">
    <xs:pattern value="[A-Z]{2}"/>
  </xs:restriction>
</xs:simpleType>

simpleType combustibile
namespace libretto
type restriction of xs:integer
properties
base xs:integer
used by
elements row11_1/L11_1combustibile consumi_esercizi/consumo_combustibile/L14_1combustibile rowGT/L4_1combustibile rowBR/L4_2combustibile rowCG/L4_6combustibile
facets
Kind Value Annotation
minInclusive 1
maxInclusive 24
annotation
documentation

                        I tipi sono:
                        1 = Gas naturale
                        2 = GNL
3 = Gasolio
4 = GPL
5 = Olio combustibile
6 = Benzina
7 = Cippato
8 = Pellet
                        9 = Tronchetti
                        10 = Bricchette
                        11 = Legna
                        12 = Aria propanata
                        13 = Kerosene
                        14 = Propano
                        15 = Butano
                        16 = Biogas
                        17 = Biodiesel
                        18 = Altra biomassa liquida
                        19 = Altra biomassa gassosa
                        20 = Altra biomassa solida
                        21 = Energia termica (teleriscaldamento)
                        22 = Energia elettrica
                        23 = Policombustibile (biomassa-gas/gasolio)
                        24 = Carbone

source <xs:simpleType name="combustibile">
  <xs:annotation>
    <xs:documentation>
                        I tipi sono:
                        1 = Gas naturale
                        2 = GNL
3 = Gasolio
4 = GPL
5 = Olio combustibile
6 = Benzina
7 = Cippato
8 = Pellet
                        9 = Tronchetti
                        10 = Bricchette
                        11 = Legna
                        12 = Aria propanata
                        13 = Kerosene
                        14 = Propano
                        15 = Butano
                        16 = Biogas
                        17 = Biodiesel
                        18 = Altra biomassa liquida
                        19 = Altra biomassa gassosa
                        20 = Altra biomassa solida
                        21 = Energia termica (teleriscaldamento)
                        22 = Energia elettrica
                        23 = Policombustibile (biomassa-gas/gasolio)
                        24 = Carbone
                        </xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:integer">
    <xs:minInclusive value="1"/>
    <xs:maxInclusive value="24"/>
  </xs:restriction>
</xs:simpleType>

simpleType combustibilefiammadiretta
namespace libretto
type restriction of xs:integer
properties
base xs:integer
used by
element rowGF/L4_4tipoLiquidoGassoso
facets
Kind Value Annotation
minInclusive 1
maxInclusive 2
annotation
documentation

                        I tipi sono:
                        1 = Liquido
                        2 = Gassosso

source <xs:simpleType name="combustibilefiammadiretta">
  <xs:annotation>
    <xs:documentation>
                        I tipi sono:
                        1 = Liquido
                        2 = Gassosso
                        </xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:integer">
    <xs:minInclusive value="1"/>
    <xs:maxInclusive value="2"/>
  </xs:restriction>
</xs:simpleType>

simpleType comune
namespace libretto
type restriction of xs:string
properties
base xs:string
used by
element datiImmobile/L1_2nome_comune
facets
Kind Value Annotation
enumeration Accadia
enumeration Acquaviva delle Fonti
enumeration Adelfia
enumeration Alberobello
enumeration Alberona
enumeration Alessano
enumeration Alezio
enumeration Alliste
enumeration Altamura
enumeration Andrano
enumeration Andria
enumeration Anzano di Puglia
enumeration Apricena
enumeration Aradeo
enumeration Arnesano
enumeration Ascoli Satriano
enumeration Avetrana
enumeration Bagnolo del Salento
enumeration Bari
enumeration Barletta
enumeration Biccari
enumeration Binetto
enumeration Bisceglie
enumeration Bitetto
enumeration Bitonto
enumeration Bitritto
enumeration Botrugno
enumeration Bovino
enumeration Brindisi
enumeration Cagnano Varano
enumeration Calimera
enumeration Campi Salentina
enumeration Candela
enumeration Cannole
enumeration Canosa di Puglia
enumeration Caprarica di Lecce
enumeration Capurso
enumeration Carapelle
enumeration Carlantino
enumeration Carmiano
enumeration Carosino
enumeration Carovigno
enumeration Carpignano Salentino
enumeration Carpino
enumeration Casalnuovo Monterotaro
enumeration Casalvecchio di Puglia
enumeration Casamassima
enumeration Casarano
enumeration Cassano delle Murge
enumeration Castellana Grotte
enumeration Castellaneta
enumeration Castelluccio dei Sauri
enumeration Castelluccio Valmaggiore
enumeration Castelnuovo della Daunia
enumeration Castri di Lecce
enumeration Castrignano de' Greci
enumeration Castrignano del Capo
enumeration Castro
enumeration Cavallino
enumeration Ceglie Messapica
enumeration Celenza Valfortore
enumeration Cellamare
enumeration Celle di San Vito
enumeration Cellino San Marco
enumeration Cerignola
enumeration Chieuti
enumeration Cisternino
enumeration Collepasso
enumeration Conversano
enumeration Copertino
enumeration Corato
enumeration Corigliano d'Otranto
enumeration Corsano
enumeration Crispiano
enumeration Cursi
enumeration Cutrofiano
enumeration Deliceto
enumeration Diso
enumeration Erchie
enumeration Faeto
enumeration Faggiano
enumeration Fasano
enumeration Foggia
enumeration Fragagnano
enumeration Francavilla Fontana
enumeration Gagliano del Capo
enumeration Galatina
enumeration Galatone
enumeration Gallipoli
enumeration Ginosa
enumeration Gioia del Colle
enumeration Giovinazzo
enumeration Giuggianello
enumeration Giurdignano
enumeration Gravina in Puglia
enumeration Grottaglie
enumeration Grumo Appula
enumeration Guagnano
enumeration Ischitella
enumeration Isole Tremiti
enumeration Laterza
enumeration Latiano
enumeration Lecce
enumeration Leporano
enumeration Lequile
enumeration Lesina
enumeration Leverano
enumeration Lizzanello
enumeration Lizzano
enumeration Locorotondo
enumeration Lucera
enumeration Maglie
enumeration Manduria
enumeration Manfredonia
enumeration Margherita di Savoia
enumeration Martano
enumeration Martignano
enumeration Martina Franca
enumeration Maruggio
enumeration Massafra
enumeration Matino
enumeration Mattinata
enumeration Melendugno
enumeration Melissano
enumeration Melpignano
enumeration Mesagne
enumeration Miggiano
enumeration Minervino di Lecce
enumeration Minervino Murge
enumeration Modugno
enumeration Mola di Bari
enumeration Molfetta
enumeration Monopoli
enumeration Monteiasi
enumeration Monteleone di Puglia
enumeration Montemesola
enumeration Monteparano
enumeration Monteroni di Lecce
enumeration Montesano Salentino
enumeration Monte Sant'Angelo
enumeration Morciano di Leuca
enumeration Motta Montecorvino
enumeration Mottola
enumeration Muro Leccese
enumeration Nardò
enumeration Neviano
enumeration Noci
enumeration Nociglia
enumeration Noicattaro
enumeration Novoli
enumeration Ordona
enumeration Oria
enumeration Orsara di Puglia
enumeration Orta Nova
enumeration Ortelle
enumeration Ostuni
enumeration Otranto
enumeration Palagianello
enumeration Palagiano
enumeration Palmariggi
enumeration Palo del Colle
enumeration Panni
enumeration Parabita
enumeration Patù
enumeration Peschici
enumeration Pietramontecorvino
enumeration Poggiardo
enumeration Poggio Imperiale
enumeration Poggiorsini
enumeration Polignano a Mare
enumeration Porto Cesareo
enumeration Presicce-Acquarica
enumeration Pulsano
enumeration Putignano
enumeration Racale
enumeration Rignano Garganico
enumeration Roccaforzata
enumeration Rocchetta Sant'Antonio
enumeration Rodi Garganico
enumeration Roseto Valfortore
enumeration Ruffano
enumeration Rutigliano
enumeration Ruvo di Puglia
enumeration Salice Salentino
enumeration Salve
enumeration Sammichele di Bari
enumeration Sanarica
enumeration San Cassiano
enumeration San Cesario di Lecce
enumeration San Donaci
enumeration San Donato di Lecce
enumeration San Ferdinando di Puglia
enumeration San Giorgio Ionico
enumeration San Giovanni Rotondo
enumeration San Marco in Lamis
enumeration San Marco la Catola
enumeration San Marzano di San Giuseppe
enumeration San Michele Salentino
enumeration Sannicandro di Bari
enumeration San Nicandro Garganico
enumeration Sannicola
enumeration San Pancrazio Salentino
enumeration San Paolo di Civitate
enumeration San Pietro in Lama
enumeration San Pietro Vernotico
enumeration San Severo
enumeration Santa Cesarea Terme
enumeration Sant'Agata di Puglia
enumeration Santeramo in Colle
enumeration San Vito dei Normanni
enumeration Sava
enumeration Scorrano
enumeration Seclì
enumeration Serracapriola
enumeration Sogliano Cavour
enumeration Soleto
enumeration Specchia
enumeration Spinazzola
enumeration Spongano
enumeration Squinzano
enumeration Statte
enumeration Sternatia
enumeration Stornara
enumeration Stornarella
enumeration Supersano
enumeration Surano
enumeration Surbo
enumeration Taranto
enumeration Taurisano
enumeration Taviano
enumeration Terlizzi
enumeration Tiggiano
enumeration Torchiarolo
enumeration Toritto
enumeration Torremaggiore
enumeration Torre Santa Susanna
enumeration Torricella
enumeration Trani
enumeration Trepuzzi
enumeration Tricase
enumeration Triggiano
enumeration Trinitapoli
enumeration Troia
enumeration Tuglie
enumeration Turi
enumeration Ugento
enumeration Uggiano la Chiesa
enumeration Valenzano
enumeration Veglie
enumeration Vernole
enumeration Vico del Gargano
enumeration Vieste
enumeration Villa Castelli
enumeration Volturara Appula
enumeration Volturino
enumeration Zapponeta
enumeration Zollino
source <xs:simpleType name="comune">
  <xs:restriction base="xs:string">
    <xs:enumeration value="Accadia"/>
    <xs:enumeration value="Acquaviva delle Fonti"/>
    <xs:enumeration value="Adelfia"/>
    <xs:enumeration value="Alberobello"/>
    <xs:enumeration value="Alberona"/>
    <xs:enumeration value="Alessano"/>
    <xs:enumeration value="Alezio"/>
    <xs:enumeration value="Alliste"/>
    <xs:enumeration value="Altamura"/>
    <xs:enumeration value="Andrano"/>
    <xs:enumeration value="Andria"/>
    <xs:enumeration value="Anzano di Puglia"/>
    <xs:enumeration value="Apricena"/>
    <xs:enumeration value="Aradeo"/>
    <xs:enumeration value="Arnesano"/>
    <xs:enumeration value="Ascoli Satriano"/>
    <xs:enumeration value="Avetrana"/>
    <xs:enumeration value="Bagnolo del Salento"/>
    <xs:enumeration value="Bari"/>
    <xs:enumeration value="Barletta"/>
    <xs:enumeration value="Biccari"/>
    <xs:enumeration value="Binetto"/>
    <xs:enumeration value="Bisceglie"/>
    <xs:enumeration value="Bitetto"/>
    <xs:enumeration value="Bitonto"/>
    <xs:enumeration value="Bitritto"/>
    <xs:enumeration value="Botrugno"/>
    <xs:enumeration value="Bovino"/>
    <xs:enumeration value="Brindisi"/>
    <xs:enumeration value="Cagnano Varano"/>
    <xs:enumeration value="Calimera"/>
    <xs:enumeration value="Campi Salentina"/>
    <xs:enumeration value="Candela"/>
    <xs:enumeration value="Cannole"/>
    <xs:enumeration value="Canosa di Puglia"/>
    <xs:enumeration value="Caprarica di Lecce"/>
    <xs:enumeration value="Capurso"/>
    <xs:enumeration value="Carapelle"/>
    <xs:enumeration value="Carlantino"/>
    <xs:enumeration value="Carmiano"/>
    <xs:enumeration value="Carosino"/>
    <xs:enumeration value="Carovigno"/>
    <xs:enumeration value="Carpignano Salentino"/>
    <xs:enumeration value="Carpino"/>
    <xs:enumeration value="Casalnuovo Monterotaro"/>
    <xs:enumeration value="Casalvecchio di Puglia"/>
    <xs:enumeration value="Casamassima"/>
    <xs:enumeration value="Casarano"/>
    <xs:enumeration value="Cassano delle Murge"/>
    <xs:enumeration value="Castellana Grotte"/>
    <xs:enumeration value="Castellaneta"/>
    <xs:enumeration value="Castelluccio dei Sauri"/>
    <xs:enumeration value="Castelluccio Valmaggiore"/>
    <xs:enumeration value="Castelnuovo della Daunia"/>
    <xs:enumeration value="Castri di Lecce"/>
    <xs:enumeration value="Castrignano de' Greci"/>
    <xs:enumeration value="Castrignano del Capo"/>
    <xs:enumeration value="Castro"/>
    <xs:enumeration value="Cavallino"/>
    <xs:enumeration value="Ceglie Messapica"/>
    <xs:enumeration value="Celenza Valfortore"/>
    <xs:enumeration value="Cellamare"/>
    <xs:enumeration value="Celle di San Vito"/>
    <xs:enumeration value="Cellino San Marco"/>
    <xs:enumeration value="Cerignola"/>
    <xs:enumeration value="Chieuti"/>
    <xs:enumeration value="Cisternino"/>
    <xs:enumeration value="Collepasso"/>
    <xs:enumeration value="Conversano"/>
    <xs:enumeration value="Copertino"/>
    <xs:enumeration value="Corato"/>
    <xs:enumeration value="Corigliano d'Otranto"/>
    <xs:enumeration value="Corsano"/>
    <xs:enumeration value="Crispiano"/>
    <xs:enumeration value="Cursi"/>
    <xs:enumeration value="Cutrofiano"/>
    <xs:enumeration value="Deliceto"/>
    <xs:enumeration value="Diso"/>
    <xs:enumeration value="Erchie"/>
    <xs:enumeration value="Faeto"/>
    <xs:enumeration value="Faggiano"/>
    <xs:enumeration value="Fasano"/>
    <xs:enumeration value="Foggia"/>
    <xs:enumeration value="Fragagnano"/>
    <xs:enumeration value="Francavilla Fontana"/>
    <xs:enumeration value="Gagliano del Capo"/>
    <xs:enumeration value="Galatina"/>
    <xs:enumeration value="Galatone"/>
    <xs:enumeration value="Gallipoli"/>
    <xs:enumeration value="Ginosa"/>
    <xs:enumeration value="Gioia del Colle"/>
    <xs:enumeration value="Giovinazzo"/>
    <xs:enumeration value="Giuggianello"/>
    <xs:enumeration value="Giurdignano"/>
    <xs:enumeration value="Gravina in Puglia"/>
    <xs:enumeration value="Grottaglie"/>
    <xs:enumeration value="Grumo Appula"/>
    <xs:enumeration value="Guagnano"/>
    <xs:enumeration value="Ischitella"/>
    <xs:enumeration value="Isole Tremiti"/>
    <xs:enumeration value="Laterza"/>
    <xs:enumeration value="Latiano"/>
    <xs:enumeration value="Lecce"/>
    <xs:enumeration value="Leporano"/>
    <xs:enumeration value="Lequile"/>
    <xs:enumeration value="Lesina"/>
    <xs:enumeration value="Leverano"/>
    <xs:enumeration value="Lizzanello"/>
    <xs:enumeration value="Lizzano"/>
    <xs:enumeration value="Locorotondo"/>
    <xs:enumeration value="Lucera"/>
    <xs:enumeration value="Maglie"/>
    <xs:enumeration value="Manduria"/>
    <xs:enumeration value="Manfredonia"/>
    <xs:enumeration value="Margherita di Savoia"/>
    <xs:enumeration value="Martano"/>
    <xs:enumeration value="Martignano"/>
    <xs:enumeration value="Martina Franca"/>
    <xs:enumeration value="Maruggio"/>
    <xs:enumeration value="Massafra"/>
    <xs:enumeration value="Matino"/>
    <xs:enumeration value="Mattinata"/>
    <xs:enumeration value="Melendugno"/>
    <xs:enumeration value="Melissano"/>
    <xs:enumeration value="Melpignano"/>
    <xs:enumeration value="Mesagne"/>
    <xs:enumeration value="Miggiano"/>
    <xs:enumeration value="Minervino di Lecce"/>
    <xs:enumeration value="Minervino Murge"/>
    <xs:enumeration value="Modugno"/>
    <xs:enumeration value="Mola di Bari"/>
    <xs:enumeration value="Molfetta"/>
    <xs:enumeration value="Monopoli"/>
    <xs:enumeration value="Monteiasi"/>
    <xs:enumeration value="Monteleone di Puglia"/>
    <xs:enumeration value="Montemesola"/>
    <xs:enumeration value="Monteparano"/>
    <xs:enumeration value="Monteroni di Lecce"/>
    <xs:enumeration value="Montesano Salentino"/>
    <xs:enumeration value="Monte Sant'Angelo"/>
    <xs:enumeration value="Morciano di Leuca"/>
    <xs:enumeration value="Motta Montecorvino"/>
    <xs:enumeration value="Mottola"/>
    <xs:enumeration value="Muro Leccese"/>
    <xs:enumeration value="Nardò"/>
    <xs:enumeration value="Neviano"/>
    <xs:enumeration value="Noci"/>
    <xs:enumeration value="Nociglia"/>
    <xs:enumeration value="Noicattaro"/>
    <xs:enumeration value="Novoli"/>
    <xs:enumeration value="Ordona"/>
    <xs:enumeration value="Oria"/>
    <xs:enumeration value="Orsara di Puglia"/>
    <xs:enumeration value="Orta Nova"/>
    <xs:enumeration value="Ortelle"/>
    <xs:enumeration value="Ostuni"/>
    <xs:enumeration value="Otranto"/>
    <xs:enumeration value="Palagianello"/>
    <xs:enumeration value="Palagiano"/>
    <xs:enumeration value="Palmariggi"/>
    <xs:enumeration value="Palo del Colle"/>
    <xs:enumeration value="Panni"/>
    <xs:enumeration value="Parabita"/>
    <xs:enumeration value="Patù"/>
    <xs:enumeration value="Peschici"/>
    <xs:enumeration value="Pietramontecorvino"/>
    <xs:enumeration value="Poggiardo"/>
    <xs:enumeration value="Poggio Imperiale"/>
    <xs:enumeration value="Poggiorsini"/>
    <xs:enumeration value="Polignano a Mare"/>
    <xs:enumeration value="Porto Cesareo"/>
    <xs:enumeration value="Presicce-Acquarica"/>
    <xs:enumeration value="Pulsano"/>
    <xs:enumeration value="Putignano"/>
    <xs:enumeration value="Racale"/>
    <xs:enumeration value="Rignano Garganico"/>
    <xs:enumeration value="Roccaforzata"/>
    <xs:enumeration value="Rocchetta Sant'Antonio"/>
    <xs:enumeration value="Rodi Garganico"/>
    <xs:enumeration value="Roseto Valfortore"/>
    <xs:enumeration value="Ruffano"/>
    <xs:enumeration value="Rutigliano"/>
    <xs:enumeration value="Ruvo di Puglia"/>
    <xs:enumeration value="Salice Salentino"/>
    <xs:enumeration value="Salve"/>
    <xs:enumeration value="Sammichele di Bari"/>
    <xs:enumeration value="Sanarica"/>
    <xs:enumeration value="San Cassiano"/>
    <xs:enumeration value="San Cesario di Lecce"/>
    <xs:enumeration value="San Donaci"/>
    <xs:enumeration value="San Donato di Lecce"/>
    <xs:enumeration value="San Ferdinando di Puglia"/>
    <xs:enumeration value="San Giorgio Ionico"/>
    <xs:enumeration value="San Giovanni Rotondo"/>
    <xs:enumeration value="San Marco in Lamis"/>
    <xs:enumeration value="San Marco la Catola"/>
    <xs:enumeration value="San Marzano di San Giuseppe"/>
    <xs:enumeration value="San Michele Salentino"/>
    <xs:enumeration value="Sannicandro di Bari"/>
    <xs:enumeration value="San Nicandro Garganico"/>
    <xs:enumeration value="Sannicola"/>
    <xs:enumeration value="San Pancrazio Salentino"/>
    <xs:enumeration value="San Paolo di Civitate"/>
    <xs:enumeration value="San Pietro in Lama"/>
    <xs:enumeration value="San Pietro Vernotico"/>
    <xs:enumeration value="San Severo"/>
    <xs:enumeration value="Santa Cesarea Terme"/>
    <xs:enumeration value="Sant'Agata di Puglia"/>
    <xs:enumeration value="Santeramo in Colle"/>
    <xs:enumeration value="San Vito dei Normanni"/>
    <xs:enumeration value="Sava"/>
    <xs:enumeration value="Scorrano"/>
    <xs:enumeration value="Seclì"/>
    <xs:enumeration value="Serracapriola"/>
    <xs:enumeration value="Sogliano Cavour"/>
    <xs:enumeration value="Soleto"/>
    <xs:enumeration value="Specchia"/>
    <xs:enumeration value="Spinazzola"/>
    <xs:enumeration value="Spongano"/>
    <xs:enumeration value="Squinzano"/>
    <xs:enumeration value="Statte"/>
    <xs:enumeration value="Sternatia"/>
    <xs:enumeration value="Stornara"/>
    <xs:enumeration value="Stornarella"/>
    <xs:enumeration value="Supersano"/>
    <xs:enumeration value="Surano"/>
    <xs:enumeration value="Surbo"/>
    <xs:enumeration value="Taranto"/>
    <xs:enumeration value="Taurisano"/>
    <xs:enumeration value="Taviano"/>
    <xs:enumeration value="Terlizzi"/>
    <xs:enumeration value="Tiggiano"/>
    <xs:enumeration value="Torchiarolo"/>
    <xs:enumeration value="Toritto"/>
    <xs:enumeration value="Torremaggiore"/>
    <xs:enumeration value="Torre Santa Susanna"/>
    <xs:enumeration value="Torricella"/>
    <xs:enumeration value="Trani"/>
    <xs:enumeration value="Trepuzzi"/>
    <xs:enumeration value="Tricase"/>
    <xs:enumeration value="Triggiano"/>
    <xs:enumeration value="Trinitapoli"/>
    <xs:enumeration value="Troia"/>
    <xs:enumeration value="Tuglie"/>
    <xs:enumeration value="Turi"/>
    <xs:enumeration value="Ugento"/>
    <xs:enumeration value="Uggiano la Chiesa"/>
    <xs:enumeration value="Valenzano"/>
    <xs:enumeration value="Veglie"/>
    <xs:enumeration value="Vernole"/>
    <xs:enumeration value="Vico del Gargano"/>
    <xs:enumeration value="Vieste"/>
    <xs:enumeration value="Villa Castelli"/>
    <xs:enumeration value="Volturara Appula"/>
    <xs:enumeration value="Volturino"/>
    <xs:enumeration value="Zapponeta"/>
    <xs:enumeration value="Zollino"/>
  </xs:restriction>
</xs:simpleType>

simpleType controllo_compatibilita
namespace libretto
type restriction of xs:integer
properties
base xs:integer
used by
elements row11_3/L11_3flagDispositiviRegolazione row11_3/L11_3flagPotenzaCompatibile row11_3/L11_3flagStatoCoibentazioni
facets
Kind Value Annotation
minInclusive 1
maxInclusive 4
annotation
documentation

                        I tipi sono:
                        1 = Si
                        2 = No
                        3 = NC

source <xs:simpleType name="controllo_compatibilita">
  <xs:annotation>
    <xs:documentation>
                        I tipi sono:
                        1 = Si
                        2 = No
                        3 = NC
                        </xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:integer">
    <xs:minInclusive value="1"/>
    <xs:maxInclusive value="4"/>
  </xs:restriction>
</xs:simpleType>

simpleType data
namespace libretto
type restriction of xs:date
properties
base xs:date
used by
elements rowVM/L10_1dataDismissione rowVM/L10_1dataInstallazione row11_1/L11_1data row11_2/L11_2data row11_2/L11_2dataRipristino row11_3/L11_3data row11_4/L11_4data impianto/scheda_12_interventi_CEE/interventi_CEE/L12data_rapporto ispezione/L13dataIspezione libretto/L1_1dataIntervento unitaimmobiliare/intestazione_termica/L1_2data_fine_PDR unitaimmobiliare/intestazione_elettrica/L1_2data_fine_POD unitaimmobiliare/intestazione_termica/L1_2data_inizio_PDR unitaimmobiliare/intestazione_elettrica/L1_2data_inizio_POD impianto/scheda_3_terzo_responsabile/terzo_responsabile/L3_data_fine_nomina impianto/scheda_3_terzo_responsabile/terzo_responsabile/L3_data_inizio_nomina rowGT/L4_1dataDismissione rowGT/L4_1dataInstallazione rowBR/L4_2dataDismissione rowBR/L4_2dataInstallazione rowRC/L4_3dataDismissione rowRC/L4_3dataInstallazione rowGF/L4_4dataDismissione rowGF/L4_4dataInstallazione rowSC/L4_5dataDismissione rowSC/L4_5dataInstallazione rowCG/L4_6dataDismissione rowCG/L4_6dataInstallazione rowCS/L4_7dataDismissione rowCS/L4_7dataInstallazione rowAG/L4_8dataDismissione rowAG/L4_8dataInstallazione rowSR/L5_1dataDismissioneSR rowVR/L5_1dataDismissioneVR rowSR/L5_1dataInstallazioneSR rowVR/L5_1dataInstallazioneVR impianto/scheda_5_sistemi_regolazione_contabilizzazione/L5_3/L5_3SistemaSostituto/L5_3dataSostituzione impianto/scheda_5_sistemi_regolazione_contabilizzazione/L5_4/L5_4SistemaSostituto/L5_4dataSostituzione rowPC/L6_4dataDismissione rowPC/L6_4dataInstallazione rowAC/L8_1dataDismissione rowAC/L8_1dataInstallazione rowTE/L9_1dataDismissione rowTE/L9_1dataInstallazione rowRV/L9_2dataDismissione rowRV/L9_2dataInstallazione rowSCcal/L9_3dataDismissione rowSCcal/L9_3dataInstallazione rowCI/L9_4dataDismissione rowCI/L9_4dataInstallazione rowUT/L9_5dataDismissione rowUT/L9_5dataInstallazione rowRCcal/L9_6dataDismissione rowRCcal/L9_6dataInstallazione
facets
Kind Value Annotation
minInclusive 1900-01-01
maxInclusive 2100-12-31
source <xs:simpleType name="data">
  <xs:restriction base="xs:date">
    <xs:minInclusive value="1900-01-01"/>
    <xs:maxInclusive value="2100-12-31"/>
  </xs:restriction>
</xs:simpleType>

simpleType decimale1
namespace libretto
type restriction of xs:decimal
properties
base xs:decimal
used by
elements rowVM/L10_1maxPortataAria row11_1/L11_1CO2 row11_1/L11_1nox row11_1/L11_1O2 row11_1/L11_1portataTermicaEffettiva row11_1/L11_1tempAria row11_1/L11_1tempFumi row11_1/L11_1valorePortata row11_2/L11_2potenzaAss row11_2/L11_2surrisc row11_2/L11_2tBulboUmido row11_2/L11_2tCondens row11_2/L11_2tEvaporaz row11_2/L11_2tIngFluidoMacc row11_2/L11_2tIngFluidoSorg row11_2/L11_2tIngLatoEst row11_2/L11_2tIngLatoUtenze row11_2/L11_2tSottoRaffr row11_2/L11_2tUscFluido row11_2/L11_2tUscFluidoMacc row11_2/L11_2tUscFluidoSorg row11_2/L11_2tUscLatoEst row11_2/L11_2tUscLatoUtenze row11_3/L11_3portataFluidoPrim row11_3/L11_3potTermica row11_3/L11_3tempEsterna row11_3/L11_3tempMandPrimario row11_3/L11_3tempMandSecond row11_3/L11_3tempRitPrimario row11_3/L11_3tempRitSecond row11_4/L11_4emissioniCO row11_4/L11_4potElettricaMorsetti row11_4/L11_4tempAriaComb row11_4/L11_4tempFumiMonte row11_4/L11_4tempFumiValle row11_4/L11_4tempH2Oingresso row11_4/L11_4tempH2Omotore row11_4/L11_4tempH2Ouscita impianto/scheda_1_dati_identificativi_impianto/L1_2volLordoRaffr impianto/scheda_1_dati_identificativi_impianto/L1_2volLordoRisc impianto/scheda_1_dati_identificativi_impianto/L1_3potUtileACS impianto/scheda_1_dati_identificativi_impianto/L1_3potUtileClimaEst impianto/scheda_1_dati_identificativi_impianto/L1_3potUtileClimaInv impianto/scheda_1_dati_identificativi_impianto/L1_5potUtile impianto/scheda_1_dati_identificativi_impianto/L1_5superfLordaTot impianto/scheda_2_trattamento_acqua/L2_1contenutoH2OimpClima impianto/scheda_2_trattamento_acqua/L2_2durezzaTotaleH2O altro_trattH2O/L2_3AddolcimentoDurezzaTotaleH2O tratt_H2O_gelo/L2_3flagGlicoleEtilenico/L2_3percConcentrazEtilenico tratt_H2O_gelo/L2_3flagGlicolePropilenico/L2_3percConcentrazPropilenico tratt_H2O_gelo/L2_3flagGlicoleEtilenico/L2_3PHconcentrazEtilenico tratt_H2O_gelo/L2_3flagGlicolePropilenico/L2_3PHconcentrazPropilenico tratt_H2O_ACS/altro_tratt_ACS/L2_4AddolcimentoDurezzaTotaleH2OACS gestione_torre_raff/L2_5conducibH2Oingresso gestione_torre_raff/L2_5taraturaSpurgo rowGT/L4_1potTermUtileMax rowGF/sezRaffreddamentoFrigo/L4_4potFrigoAssorb rowGF/sezRaffreddamentoFrigo/L4_4potFrigoNom rowGF/sezRiscaldamentoFrigo/L4_4potTermAssorb rowGF/sezRiscaldamentoFrigo/L4_4potTermNom rowSC/L4_5potTermNomTot rowCG/L4_6emissioniMonossidoMAX rowCG/L4_6emissioniMonossidoMIN rowCG/L4_6tempAcquaIngressoMAX rowCG/L4_6tempAcquaIngressoMIN rowCG/L4_6tempAcquaMotoreMAX rowCG/L4_6tempAcquaMotoreMIN rowCG/L4_6tempAcquaUscitaMAX rowCG/L4_6tempAcquaUscitaMIN rowCG/L4_6tempFumiMonteMAX rowCG/L4_6tempFumiMonteMIN rowCG/L4_6tempFumiValleMAX rowCG/L4_6tempFumiValleMIN rowCS/L4_7superfTotApertura rowAG/L4_8potUtile rowVE/L6_3capacita rowVE/L6_3apertochiuso/L6_3pressioneVasoChiuso rowPC/L6_4potNominale rowAC/L8_1capacita rowTE/L9_1capacitaNominale rowCI/L9_4lungCircuito rowCI/L9_4profInstallaz rowCI/L9_4superfScamb rowUT/L9_5portataVentMandata rowUT/L9_5portataVentRipresa rowUT/L9_5potenzaVentMandata rowUT/L9_5potenzaVentRipresa
facets
Kind Value Annotation
fractionDigits 1
source <xs:simpleType name="decimale1">
  <xs:restriction base="xs:decimal">
    <xs:fractionDigits value="1"/>
  </xs:restriction>
</xs:simpleType>

simpleType destinazioneUso
namespace libretto
type restriction of xs:integer
properties
base xs:integer
facets
Kind Value Annotation
minInclusive 1
maxInclusive 3
annotation
documentation

                        I tipi sono:
                        1 = Climatizzazione invernale
                        2 = Climatizzazione estiva
                        3 = ACS

source <xs:simpleType name="destinazioneUso">
  <xs:annotation>
    <xs:documentation>
                        I tipi sono:
                        1 = Climatizzazione invernale
                        2 = Climatizzazione estiva
                        3 = ACS
                        </xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:integer">
    <xs:minInclusive value="1"/>
    <xs:maxInclusive value="3"/>
  </xs:restriction>
</xs:simpleType>

simpleType dpr412
namespace libretto
type restriction of xs:integer
properties
base xs:integer
used by
element unitaimmobiliare/L1_2DPR412
facets
Kind Value Annotation
minInclusive 1
maxInclusive 8
annotation
documentation

Definizione secondo il Decreto del Presidente della Repubblica 412/93:
                        1 = E.1 Edifici adibiti a residenza e assimilabili
                        2 = E.2 Edifici adibiti a uffici e assimilabili: pubblici o privati, indipendenti o contigui a costruzioni  adibite  anche  ad  attivita' industriali o artigianali, purche' siano da tali costruzioni scorporabili agli effetti dell'isolamento termico;
                        3 = E.3 Edifici adibiti a ospedali, cliniche o case  di  cura  e assimilabili ivi compresi quelli adibiti a ricovero o cura di  minori o anziani nonche' le strutture protette  per  l'assistenza ed il recupero dei tossico-dipendenti e di altri soggetti affidati a servizi sociali pubblici;
                        4 = E.4 Edifici adibiti ad attivita' ricreative, associative  o  di culto e assimilabili
                        5 = E.5 Edifici adibiti ad attivita' commerciali e assimilabili: quali negozi, magazzini di vendita all'ingrosso o al minuto,supermercati, esposizioni;
                        6 = E.6 Edifici adibiti ad attivita' sportive
                        7 = E.7 Edifici adibiti ad attivita' scolastiche a tutti i livelli e assimilabili;
                        8 = E.8 Edifici adibiti ad attivita' industriali  ed  artigianali e assimilabili.

source <xs:simpleType name="dpr412">
  <xs:annotation>
    <xs:documentation>
Definizione secondo il Decreto del Presidente della Repubblica 412/93:
                        1 = E.1 Edifici adibiti a residenza e assimilabili
                        2 = E.2 Edifici adibiti a uffici e assimilabili: pubblici o privati, indipendenti o contigui a costruzioni  adibite  anche  ad  attivita' industriali o artigianali, purche' siano da tali costruzioni scorporabili agli effetti dell'isolamento termico;
                        3 = E.3 Edifici adibiti a ospedali, cliniche o case  di  cura  e assimilabili ivi compresi quelli adibiti a ricovero o cura di  minori o anziani nonche' le strutture protette  per  l'assistenza ed il recupero dei tossico-dipendenti e di altri soggetti affidati a servizi sociali pubblici;
                        4 = E.4 Edifici adibiti ad attivita' ricreative, associative  o  di culto e assimilabili
                        5 = E.5 Edifici adibiti ad attivita' commerciali e assimilabili: quali negozi, magazzini di vendita all'ingrosso o al minuto,supermercati, esposizioni;
                        6 = E.6 Edifici adibiti ad attivita' sportive
                        7 = E.7 Edifici adibiti ad attivita' scolastiche a tutti i livelli e assimilabili;
                        8 = E.8 Edifici adibiti ad attivita' industriali  ed  artigianali e assimilabili.
                        </xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:integer">
    <xs:minInclusive value="1"/>
    <xs:maxInclusive value="8"/>
  </xs:restriction>
</xs:simpleType>

simpleType efficienzaFrigo
namespace libretto
type restriction of xs:decimal
properties
base xs:decimal
used by
elements rowGF/sezRaffreddamentoFrigo/L4_4raffrescam rowGF/sezRiscaldamentoFrigo/L4_4riscaldam
facets
Kind Value Annotation
minInclusive 1.00
maxInclusive 10.00
fractionDigits 2
source <xs:simpleType name="efficienzaFrigo">
  <xs:restriction base="xs:decimal">
    <xs:fractionDigits value="2"/>
    <xs:minInclusive value="1.00"/>
    <xs:maxInclusive value="10.00"/>
  </xs:restriction>
</xs:simpleType>

simpleType email
namespace libretto
type restriction of xs:string
properties
base xs:string
facets
Kind Value Annotation
pattern \w+([-+.']\w+)*@\w+([-.]\w+)*\.\w+([-.]\w+)*
source <xs:simpleType name="email">
  <xs:restriction base="xs:string">
    <xs:pattern value="\w+([-+.']\w+)*@\w+([-.]\w+)*\.\w+([-.]\w+)*"/>
  </xs:restriction>
</xs:simpleType>

simpleType fabbricante
namespace libretto
type xs:string
properties
base xs:string
used by
elements rowVM/L10_1fabbricante rowGT/L4_1fabbricante rowBR/L4_2fabbricante rowRC/L4_3fabbricante rowGF/L4_4fabbricante rowSC/L4_5fabbricante rowCG/L4_6fabbricante rowCS/L4_7fabbricante rowAG/L4_8fabbricante rowSR/L5_1fabbricanteSR rowVR/L5_1fabbricanteVR rowPC/L6_4fabbricante rowAC/L8_1fabbricante rowTE/L9_1fabbricante rowRV/L9_2fabbricante rowSCcal/L9_3fabbricante rowUT/L9_5fabbricante
source <xs:simpleType name="fabbricante">
  <xs:restriction base="xs:string"/>
</xs:simpleType>

simpleType fluido_frigorigeno
namespace libretto
type restriction of xs:integer
properties
base xs:integer
used by
element rowGF/L4_4fluidoFrigo
facets
Kind Value Annotation
minInclusive 1
maxInclusive 7
annotation
documentation

                        I tipi sono:
                        1 = R12
                        2 = R22
3 = R32
4 = R407C
5 = R410A
                        6 = R422D
7 = Altro

source <xs:simpleType name="fluido_frigorigeno">
  <xs:annotation>
    <xs:documentation>
                        I tipi sono:
                        1 = R12
                        2 = R22
3 = R32
4 = R407C
5 = R410A
                        6 = R422D
7 = Altro
                        </xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:integer">
    <xs:minInclusive value="1"/>
    <xs:maxInclusive value="7"/>
  </xs:restriction>
</xs:simpleType>

simpleType fluidoTermoVett
namespace libretto
type restriction of xs:integer
properties
base xs:integer
used by
element rowGT/L4_1fluidoTermoVett
facets
Kind Value Annotation
minInclusive 1
maxInclusive 5
annotation
documentation

                        I tipi sono:
                        1 = Aria
                        2 = Acqua
                        3 = Acqua surriscaldata
                        4 = Vapore
                        5 = Olio diatermico

source <xs:simpleType name="fluidoTermoVett">
  <xs:annotation>
    <xs:documentation>
                        I tipi sono:
                        1 = Aria
                        2 = Acqua
                        3 = Acqua surriscaldata
                        4 = Vapore
                        5 = Olio diatermico
                        </xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:integer">
    <xs:minInclusive value="1"/>
    <xs:maxInclusive value="5"/>
  </xs:restriction>
</xs:simpleType>

simpleType intervento
namespace libretto
type restriction of xs:integer
properties
base xs:integer
used by
element libretto/L1_1tipoIntervento
facets
Kind Value Annotation
minInclusive 1
maxInclusive 4
annotation
documentation

                        Le tipologie di intervento sono indicate in scheda 1:
                        1 = nuova installazione
                        2 = ristrutturazione
                        3 = compilazione libretto esistente (digitalizzazione di libretto cartaceo)
                        4 = sostituzione

source <xs:simpleType name="intervento">
  <xs:annotation>
    <xs:documentation>
                        Le tipologie di intervento sono indicate in scheda 1:
                        1 = nuova installazione
                        2 = ristrutturazione
                        3 = compilazione libretto esistente (digitalizzazione di libretto cartaceo)
                        4 = sostituzione
                        </xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:integer">
    <xs:minInclusive value="1"/>
    <xs:maxInclusive value="4"/>
  </xs:restriction>
</xs:simpleType>

simpleType numero_REA
namespace libretto
type restriction of xs:string
properties
base xs:string
used by
element REA/numero_REA
facets
Kind Value Annotation
pattern [0-9]{6}
source <xs:simpleType name="numero_REA">
  <xs:restriction base="xs:string">
    <xs:pattern value="[0-9]{6}"/>
  </xs:restriction>
</xs:simpleType>

simpleType numero_registro_imprese
namespace libretto
type restriction of xs:string
properties
base xs:string
facets
Kind Value Annotation
length 6
pattern [0-9]{6}
source <xs:simpleType name="numero_registro_imprese">
  <xs:restriction base="xs:string">
    <xs:length value="6"/>
    <xs:pattern value="[0-9]{6}"/>
  </xs:restriction>
</xs:simpleType>

simpleType origine_H2O_alimento
namespace libretto
type restriction of xs:integer
properties
base xs:integer
used by
element tratt_H2O_climaEst/L2_5altro_tratt_H2O_climaEst/L2_5origine_H2O_alimento
facets
Kind Value Annotation
minInclusive 1
maxInclusive 3
annotation
documentation

                        I tipi sono:
                        1 = Acquedotto
                        2 = Pozzo
                        3 = Acqua superficiale

source <xs:simpleType name="origine_H2O_alimento">
  <xs:annotation>
    <xs:documentation>
                        I tipi sono:
                        1 = Acquedotto
                        2 = Pozzo
                        3 = Acqua superficiale
                        </xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:integer">
    <xs:minInclusive value="1"/>
    <xs:maxInclusive value="3"/>
  </xs:restriction>
</xs:simpleType>

simpleType partita_IVA
namespace libretto
type restriction of xs:string
properties
base xs:string
used by
elements unitaimmobiliare/intestazione_termica/L1_2Partita_Iva_PDR unitaimmobiliare/intestazione_elettrica/L1_2Partita_Iva_POD persona_giuridica/partita_IVA
facets
Kind Value Annotation
length 11
pattern [0-9]{11}
source <xs:simpleType name="partita_IVA">
  <xs:restriction base="xs:string">
    <xs:length value="11"/>
    <xs:pattern value="[0-9]{11}"/>
  </xs:restriction>
</xs:simpleType>

simpleType PDR
namespace libretto
type restriction of xs:string
properties
base xs:string
used by
element unitaimmobiliare/intestazione_termica/L1_2PDR
facets
Kind Value Annotation
length 14
pattern [0-9]{14}
source <xs:simpleType name="PDR">
  <xs:restriction base="xs:string">
    <xs:length value="14"/>
    <xs:pattern value="[0-9]{14}"/>
  </xs:restriction>
</xs:simpleType>

simpleType POD
namespace libretto
type restriction of xs:string
properties
base xs:string
used by
element unitaimmobiliare/intestazione_elettrica/L1_2POD
facets
Kind Value Annotation
length 15
pattern [a-zA-Z]{2}[0-9]{3}[a-zA-Z]{1}[0-9]{9}
source <xs:simpleType name="POD">
  <xs:restriction base="xs:string">
    <xs:length value="15"/>
    <xs:pattern value="[a-zA-Z]{2}[0-9]{3}[a-zA-Z]{1}[0-9]{9}"/>
  </xs:restriction>
</xs:simpleType>

simpleType portata
namespace libretto
type restriction of xs:integer
properties
base xs:integer
used by
element row11_1/L11_1portataCombustibile
facets
Kind Value Annotation
minInclusive 1
maxInclusive 2
annotation
documentation

                        Le tipologie di intervento sono indicate in scheda 1:
                        1 = m3/h
                        2 = Kg/h

source <xs:simpleType name="portata">
  <xs:annotation>
    <xs:documentation>
                        Le tipologie di intervento sono indicate in scheda 1:
                        1 = m3/h
                        2 = Kg/h
                        </xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:integer">
    <xs:minInclusive value="1"/>
    <xs:maxInclusive value="2"/>
  </xs:restriction>
</xs:simpleType>

simpleType provincia
namespace libretto
type restriction of xs:string
properties
base xs:string
used by
element datiImmobile/L1_2nome_provincia
facets
Kind Value Annotation
enumeration BA
enumeration BT
enumeration BR
enumeration FG
enumeration LE
enumeration TA
source <xs:simpleType name="provincia">
  <xs:restriction base="xs:string">
    <xs:enumeration value="BA"/>
    <xs:enumeration value="BT"/>
    <xs:enumeration value="BR"/>
    <xs:enumeration value="FG"/>
    <xs:enumeration value="LE"/>
    <xs:enumeration value="TA"/>
  </xs:restriction>
</xs:simpleType>

simpleType RCEE
namespace libretto
type restriction of xs:integer
properties
base xs:integer
used by
element impianto/scheda_12_interventi_CEE/interventi_CEE/L12tipo_RCEE
facets
Kind Value Annotation
minInclusive 1
maxInclusive 4
source <xs:simpleType name="RCEE">
  <xs:restriction base="xs:integer">
    <xs:minInclusive value="1"/>
    <xs:maxInclusive value="4"/>
  </xs:restriction>
</xs:simpleType>

simpleType rendimento
namespace libretto
type restriction of xs:decimal
properties
base xs:decimal
used by
elements rowVM/L10_1rendimentoRecupero row11_1/L11_1rendimCombustione row11_1/L11_1rendimentoLegge rowGT/L4_1rendimTermUtileMax
facets
Kind Value Annotation
minInclusive 0.0
maxInclusive 200.0
fractionDigits 1
source <xs:simpleType name="rendimento">
  <xs:restriction base="xs:decimal">
    <xs:fractionDigits value="1"/>
    <xs:minInclusive value="0.0"/>
    <xs:maxInclusive value="200.0"/>
  </xs:restriction>
</xs:simpleType>

simpleType ruolo_nominante
namespace libretto
type restriction of xs:integer
properties
base xs:integer
used by
element impianto/scheda_3_terzo_responsabile/terzo_responsabile/L3_ruolo_nominante
facets
Kind Value Annotation
minInclusive 1
maxInclusive 3
annotation
documentation

                        I tipi sono:
                        1 = Proprietario
                        2 = Amministratore
3 = Occupante

source <xs:simpleType name="ruolo_nominante">
  <xs:annotation>
    <xs:documentation>
                        I tipi sono:
                        1 = Proprietario
                        2 = Amministratore
3 = Occupante
                        </xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:integer">
    <xs:minInclusive value="1"/>
    <xs:maxInclusive value="3"/>
  </xs:restriction>
</xs:simpleType>

simpleType tipo_bruciatore
namespace libretto
type restriction of xs:integer
properties
base xs:integer
used by
element rowBR/L4_2tipologia
facets
Kind Value Annotation
minInclusive 1
maxInclusive 3
annotation
documentation

                        I tipi sono:
                        1 = Monostadio
                        2 = Pluristadio
                        3 = Modulare

source <xs:simpleType name="tipo_bruciatore">
  <xs:annotation>
    <xs:documentation>
                        I tipi sono:
                        1 = Monostadio
                        2 = Pluristadio
                        3 = Modulare
                        </xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:integer">
    <xs:minInclusive value="1"/>
    <xs:maxInclusive value="3"/>
  </xs:restriction>
</xs:simpleType>

simpleType tipo_circuito_raffreddamento
namespace libretto
type restriction of xs:integer
properties
base xs:integer
used by
element tratt_H2O_climaEst/L2_5altro_tratt_H2O_climaEst/L2_5circuito_raffreddamento
facets
Kind Value Annotation
minInclusive 1
maxInclusive 3
annotation
documentation

                        I tipi sono:
                        1 = Senza recupero termico
                        2 = A recupero termico parziale
                        3 = A recupero termico totale

source <xs:simpleType name="tipo_circuito_raffreddamento">
  <xs:annotation>
    <xs:documentation>
                        I tipi sono:
                        1 = Senza recupero termico
                        2 = A recupero termico parziale
                        3 = A recupero termico totale
                        </xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:integer">
    <xs:minInclusive value="1"/>
    <xs:maxInclusive value="3"/>
  </xs:restriction>
</xs:simpleType>

simpleType tipo_scambiatore
namespace libretto
type restriction of xs:integer
properties
base xs:integer
used by
element rowRCcal/L9_6tipologia
facets
Kind Value Annotation
minInclusive 1
maxInclusive 5
annotation
documentation

                        I tipi sono:
                        1 = Statico a flusso incrociato
                        2 = Rotativo
                        3 = Termodinamico
                        4 = Passivo
                        5 = Altro

source <xs:simpleType name="tipo_scambiatore">
  <xs:annotation>
    <xs:documentation>
                        I tipi sono:
                        1 = Statico a flusso incrociato
                        2 = Rotativo
                        3 = Termodinamico
                        4 = Passivo
                        5 = Altro
                        </xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:integer">
    <xs:minInclusive value="1"/>
    <xs:maxInclusive value="5"/>
  </xs:restriction>
</xs:simpleType>

simpleType tipo_ventilatori
namespace libretto
type restriction of xs:integer
properties
base xs:integer
used by
elements rowTE/L9_1tipoVentilatori rowRV/L9_2tipoVentilatori
facets
Kind Value Annotation
minInclusive 1
maxInclusive 3
annotation
documentation

                        I tipi sono:
                        1 = Assiale
                        2 = Centrifugo
                        3 = Altro

source <xs:simpleType name="tipo_ventilatori">
  <xs:annotation>
    <xs:documentation>
                        I tipi sono:
                        1 = Assiale
                        2 = Centrifugo
                        3 = Altro
                        </xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:integer">
    <xs:minInclusive value="1"/>
    <xs:maxInclusive value="3"/>
  </xs:restriction>
</xs:simpleType>

simpleType tipoCogeneratore
namespace libretto
type restriction of xs:integer
properties
base xs:integer
used by
element rowCG/L4_6tipologia
facets
Kind Value Annotation
minInclusive 1
maxInclusive 4
annotation
documentation

                        I tipi sono:
                        1 = Motore endotermico
                        2 = Turbogas
3 = Caldaia cogenerativa
4 = Altro

source <xs:simpleType name="tipoCogeneratore">
  <xs:annotation>
    <xs:documentation>
                        I tipi sono:
                        1 = Motore endotermico
                        2 = Turbogas
3 = Caldaia cogenerativa
4 = Altro
                        </xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:integer">
    <xs:minInclusive value="1"/>
    <xs:maxInclusive value="4"/>
  </xs:restriction>
</xs:simpleType>

simpleType tipoTermostato
namespace libretto
type restriction of xs:integer
properties
base xs:integer
used by
element impianto/scheda_5_sistemi_regolazione_contabilizzazione/L5_2/L5_2termostato
facets
Kind Value Annotation
minInclusive 1
maxInclusive 4
annotation
documentation

                        I tipi sono:
                        1 = Termostato zona on-off
                        2 = Termostato zona proporzionale
                        3 = Controllo entalpico su serranda esterna
                        4 = Controllo portata aria variabile per aria canalizzata

source <xs:simpleType name="tipoTermostato">
  <xs:annotation>
    <xs:documentation>
                        I tipi sono:
                        1 = Termostato zona on-off
                        2 = Termostato zona proporzionale
                        3 = Controllo entalpico su serranda esterna
                        4 = Controllo portata aria variabile per aria canalizzata
                        </xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:integer">
    <xs:minInclusive value="1"/>
    <xs:maxInclusive value="4"/>
  </xs:restriction>
</xs:simpleType>

simpleType titolo_responsabilita
namespace libretto
type restriction of xs:integer
properties
base xs:integer
facets
Kind Value Annotation
minInclusive 1
maxInclusive 4
annotation
documentation

                        I tipi sono:
                        1 = Proprietario
                        2 = Amministratore
3 = Occupante
4 = Terzo responsabile

source <xs:simpleType name="titolo_responsabilita">
  <xs:annotation>
    <xs:documentation>
                        I tipi sono:
                        1 = Proprietario
                        2 = Amministratore
3 = Occupante
4 = Terzo responsabile
                        </xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:integer">
    <xs:minInclusive value="1"/>
    <xs:maxInclusive value="4"/>
  </xs:restriction>
</xs:simpleType>

simpleType unita_misura_consumo
namespace libretto
type restriction of xs:integer
properties
base xs:integer
used by
elements consumi_esercizi/consumo_combustibile/L14_1unitaMisura consumi_esercizi/acqua_impianto_termico/L14_3unitaMisura consumi_esercizi/prodotti_chimici_trattamento_acqua/L14_4unitaMisura
facets
Kind Value Annotation
minInclusive 1
maxInclusive 6
annotation
documentation

                        Le tipologie di intervento sono indicate in scheda 1:
                        1 = Litri
                        2 = Kg
                        3 = Quintali
                        4 = Tonnellate
                        5 = Smc
                        6 = kWh

source <xs:simpleType name="unita_misura_consumo">
  <xs:annotation>
    <xs:documentation>
                        Le tipologie di intervento sono indicate in scheda 1:
                        1 = Litri
                        2 = Kg
                        3 = Quintali
                        4 = Tonnellate
                        5 = Smc
                        6 = kWh
                        </xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:integer">
    <xs:minInclusive value="1"/>
    <xs:maxInclusive value="6"/>
  </xs:restriction>
</xs:simpleType>


XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
